TOYOTA MARK X ZIO GGA10-AWTQK / BODY / FLOOR PAN LOWER BACK PANEL

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

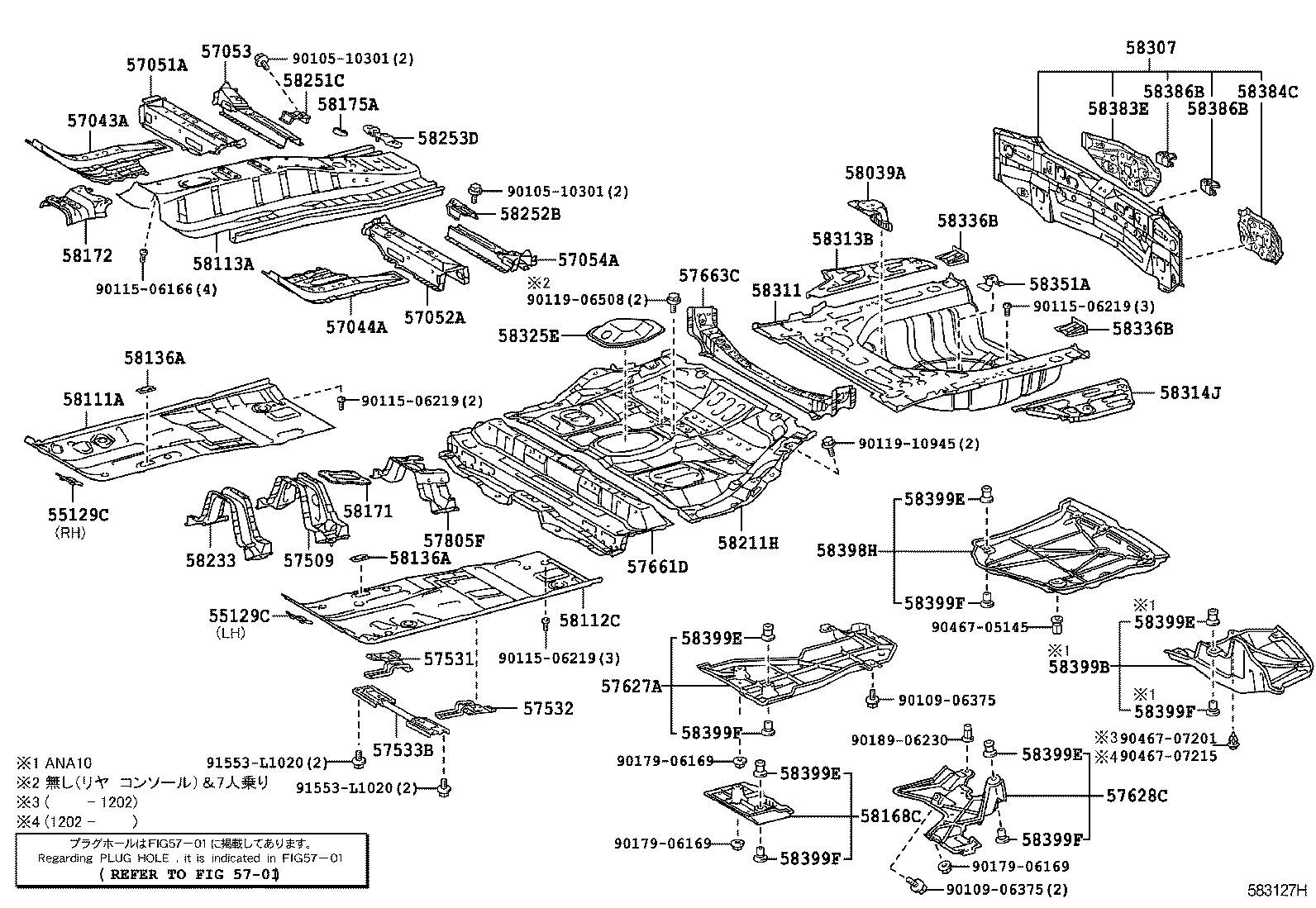

FLOOR PAN LOWER BACK PANEL

(0709- )ANA10,GGA10

MARK X ZIO | FLOOR PAN LOWER BACK PANEL 55129C - COVER, DASH PANEL HOLE 55129C - COVER, DASH PANEL HOLE ** Refer Fig 57043A - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH 57044A - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH 57051A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH 57052A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH 57053 - REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, RH 57054A - REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, LH 57509 - REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER 57531 - BRACKET, FRONT FLOOR CENTER BRACE, RH 57532 - BRACKET, FRONT FLOOR CENTER BRACE, LH 57533B - BRACE, FRONT FLOOR, CENTER 57627A - COVER, REAR FLOOR SIDE MEMBER, RH 57628C - COVER, REAR FLOOR SIDE MEMBER, LH 57661D - MEMBER, REAR FLOOR CROSS, FRONT 57663C - MEMBER, REAR FLOOR CROSS, CENTER 57805F - REINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.1 58039A - REINFORCEMENT SUB-ASSY, REAR FLOOR PANEL 58111A - PAN, FRONT FLOOR, RH 58112C - PAN, FRONT FLOOR, LH 58113A - PANEL, FRONT FLOOR, CENTER 58136A - COVER, FRONT FLOOR SERVICE HOLE 58136A - COVER, FRONT FLOOR SERVICE HOLE 58168C - COVER, FRONT FLOOR, CENTER LH 58171 - REINFORCEMENT, PARKING BRAKE BASE 58172 - BRACKET, COMPUTER MOUNTING, NO.3 58175A - REINFORCEMENT, PARKING BRAKE BASE, NO.1 58211H - PAN, CENTER FLOOR 58233 - BRACKET, EXHAUST PIPE MOUNTING 58251C - BRACE, FLOOR PANEL, FRONT RH 58252B - BRACE, FLOOR PANEL, FRONT LH 58253D - BRACKET, PARKING BRAKE CABLE 58307 - PANEL SUB-ASSY, BODY LOWER BACK 58311 - PAN, REAR FLOOR 58313B - PANEL, REAR FLOOR SIDE, RH 58314J - PANEL, REAR FLOOR SIDE, LH 58325E - COVER, REAR FLOOR SERVICE HOLE 58336B - REINFORCEMENT, REAR FLOOR PAN 58336B - REINFORCEMENT, REAR FLOOR PAN 58351A - BRACKET, SPARE WHEEL CARRIER 58383E - REINFORCEMENT, BODY LOWER BACK, NO.2 RH 58384C - REINFORCEMENT, BODY LOWER BACK, NO.2 LH 58386B - BRACKET, REAR BUMPER COVER, NO.2 58386B - BRACKET, REAR BUMPER COVER, NO.2 58398H - COVER, FLOOR UNDER, NO.1 58399B - COVER, FLOOR UNDER, NO.2 58399E - CLIP, NO.1(FOR FLOOR UNDER COVER) 58399E - CLIP, NO.1(FOR FLOOR UNDER COVER) 58399E - CLIP, NO.1(FOR FLOOR UNDER COVER) 58399E - CLIP, NO.1(FOR FLOOR UNDER COVER) 58399E - CLIP, NO.1(FOR FLOOR UNDER COVER) 58399F - CLIP, NO.2(FOR FLOOR UNDER COVER) 58399F - CLIP, NO.2(FOR FLOOR UNDER COVER) 58399F - CLIP, NO.2(FOR FLOOR UNDER COVER) 58399F - CLIP, NO.2(FOR FLOOR UNDER COVER) 58399F - CLIP, NO.2(FOR FLOOR UNDER COVER) ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
