TOYOTA SIENTA NCP81G-KWXGK / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FUEL TANK TUBE

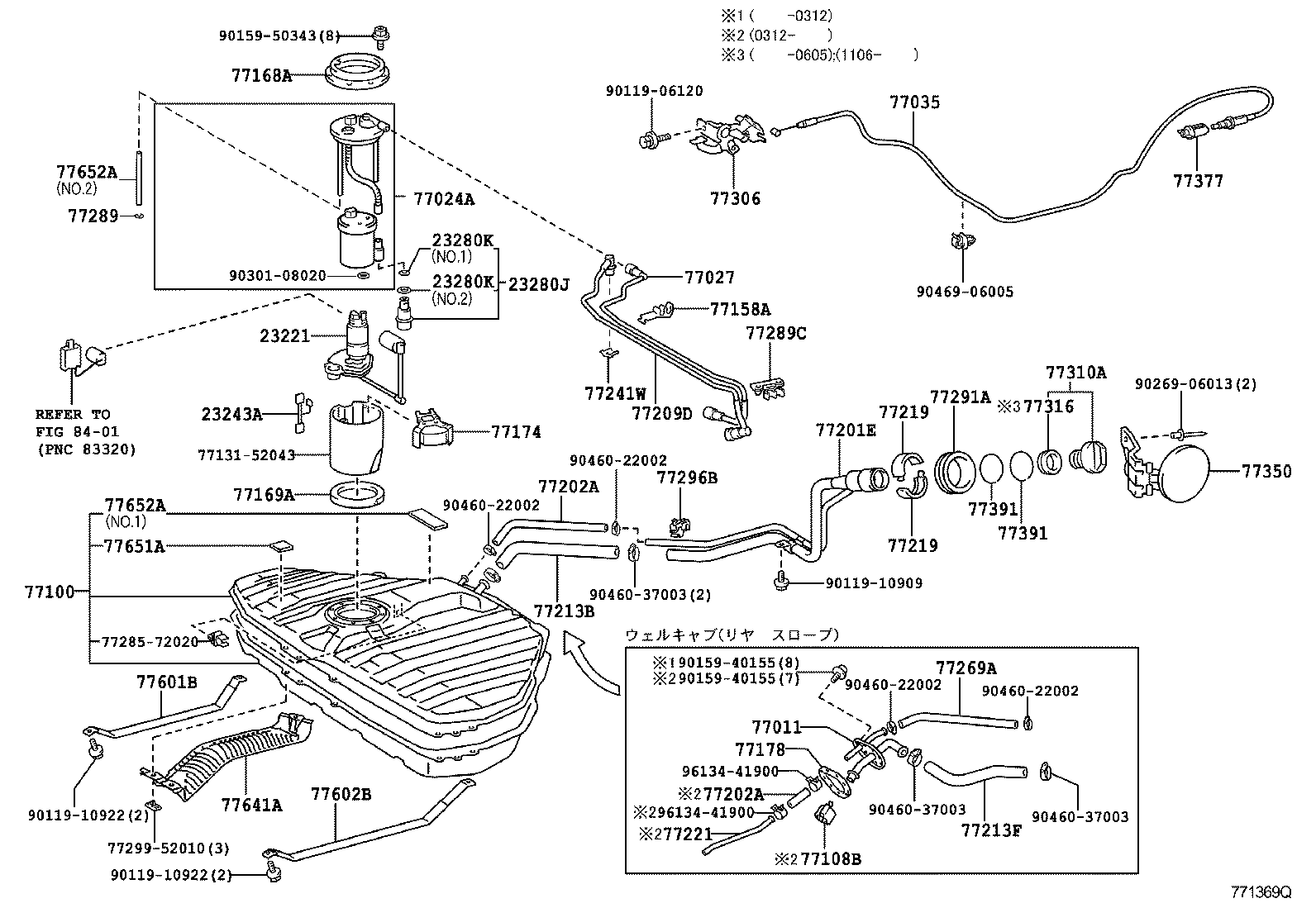

ﾌﾕ-ｴﾙ ﾀﾝｸ ILLUST NO. 1 OF 2(0309- )NCP81

SIENTA | FUEL TANK TUBE 23221 - PUMP, FUEL 23243A - WIRE, FUEL PUMP MOTOR 23280J - REGULATOR ASSY, FUEL PRESSURE 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER 77024A - PLATE SUB-ASSY, FUEL SUCTION 77027 - TUBE SUB-ASSY, FUEL EVAPORATION, NO.2 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL 77100 - TANK ASSY, FUEL 77108B - VALVE SUB-ASSY, FUEL TANK FILLER CHECK ** Std Part 77158A - SUPPORT, TANK SUCTION TUBE 77168A - PLATE, FUEL TANK VENT TUBE SET 77169A - GASKET, FUEL SUCTION TUBE SET 77174 - SUPPORT, FUEL SUCTION, NO.1 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER 77201E - PIPE SUB-ASSY, FUEL TANK FILLER 77202A - HOSE, FUEL, NO.1 (FOR BREATHER TUBE) 77202A - HOSE, FUEL, NO.1 (FOR BREATHER TUBE) 77209D - TUBE SUB-ASSY, FUEL TANK MAIN 77213B - HOSE, FUEL TANK TO FILLER PIPE 77213F - HOSE, FUEL TANK TO FILLER PIPE 77219 - COVER, FUEL TANK FILLER PIPE 77219 - COVER, FUEL TANK FILLER PIPE 77221 - TUBE, FUEL TANK BREATHER, NO.1 77241W - CLIP, TUBE JOINT 77269A - HOSE, FUEL TANK BREATHER ** Std Part 77289 - HOLDER, FUEL TANK PIPE SETTING 77289C - CLAMP, FUEL TUBE, NO.4 77291A - SHIELD, FUEL TANK FILLER PIPE 77296B - SUPPORT, FUEL TUBE PROTECTOR, NO.1 ** Std Part 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN 77310A - CAP ASSY, FUEL TANK 77316 - GASKET, FUEL TANK CAP 77350 - LID ASSY, FUEL FILLER OPENING 77377 - RETAINER, FUEL FILLER OPENING LID LOCK 77391 - RING, FUEL INLET BOX 77391 - RING, FUEL INLET BOX 77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH 77641A - PROTECTOR, FUEL TANK, NO.1 77651A - CUSHION, FUEL TANK, NO.1 77652A - CUSHION, FUEL TANK, NO.2 77652A - CUSHION, FUEL TANK, NO.2 ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
