TOYOTA CAMRY ACV45-AEPNK / BODY / FLOOR PAN LOWER BACK PANEL

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FLOOR PAN LOWER BACK PANEL

(0601- )ACV45

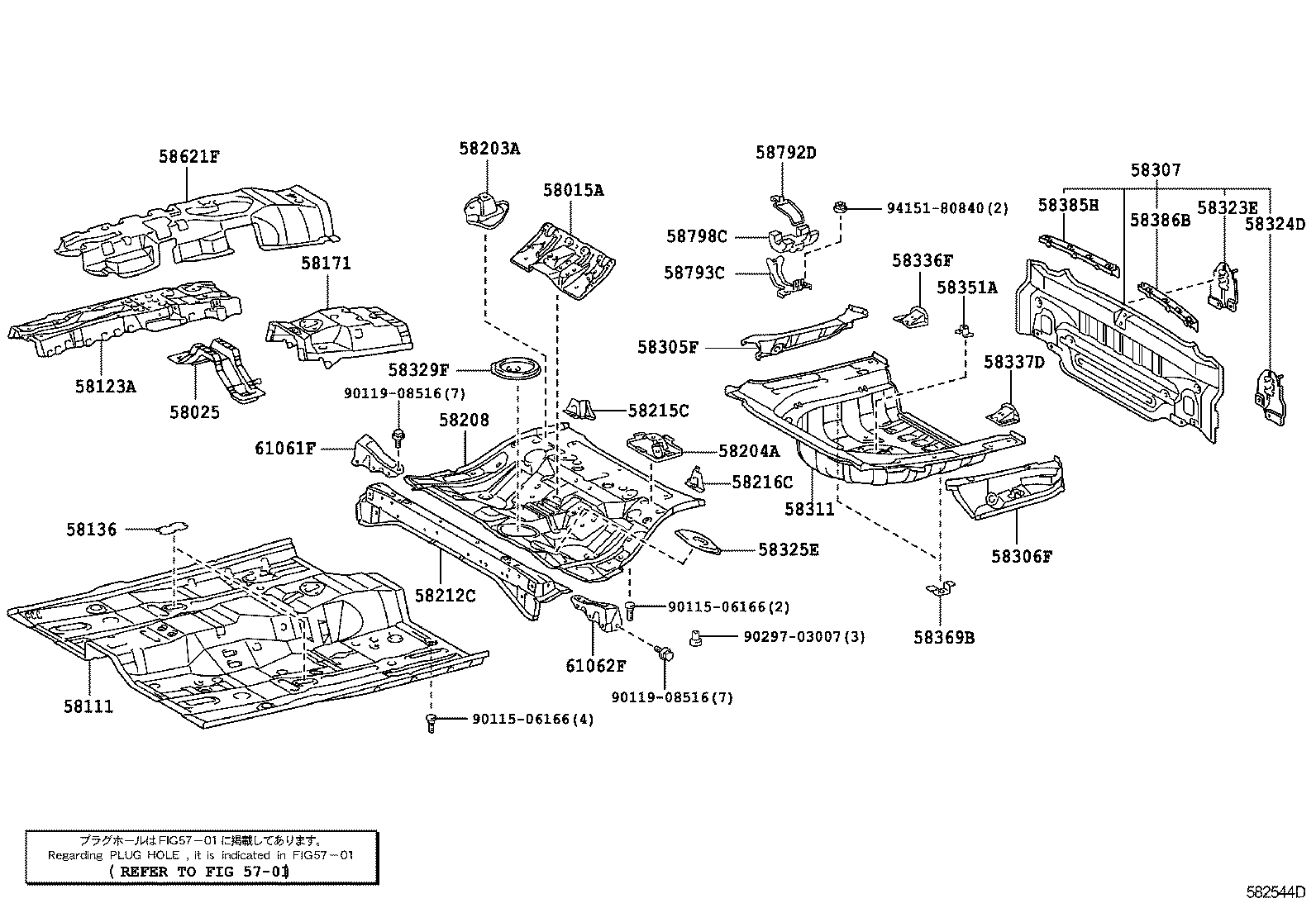

CAMRY | FLOOR PAN LOWER BACK PANEL ** Refer Fig 58015A - REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH 58025 - REINFORCEMENT SUB-ASSY, DRIVE SHAFT CENTER SUPPORT 58111 - PAN, FRONT FLOOR 58123A - SUPPORT, SHIFT & SELECT LEVER 58136 - COVER, FRONT FLOOR HOLE 58171 - REINFORCEMENT, PARKING BRAKE BASE 58203A - REINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, RH 58204A - REINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, LH 58208 - PAN, CENTER FLOOR 58212C - PAN, CENTER FLOOR, FRONT 58215C - REINFORCEMENT, CENTER FLOOR PANEL, NO.2 RH 58216C - REINFORCEMENT, CENTER FLOOR PANEL, NO.2 LH 58305F - PANEL SUB-ASSY, REAR FLOOR SIDE, RH 58306F - PANEL SUB-ASSY, REAR FLOOR SIDE, LH 58307 - PANEL SUB-ASSY, BODY LOWER BACK 58311 - PAN, REAR FLOOR 58323E - REINFORCEMENT, REAR BUMPER ARM SUPPORT, RH 58324D - REINFORCEMENT, REAR BUMPER ARM SUPPORT, LH 58325E - COVER, REAR FLOOR SERVICE HOLE 58329F - COVER, REAR FLOOR SERVICE HOLE, NO.2 58336F - REINFORCEMENT, REAR FLOOR PAN, RH 58337D - REINFORCEMENT, REAR FLOOR PAN, LH 58351A - BRACKET, SPARE WHEEL CARRIER 58369B - BRACKET, FUEL TUBE, NO.3 58385H - BRACKET, REAR BUMPER COVER, NO.1 58386B - BRACKET, REAR BUMPER COVER, NO.2 58621F - SILENCER, CENTER CONSOLE, NO.1 58792D - SUPPORT, JACK 58793C - BRACKET, JACK CARRIER, NO.1 58798C - CUSHION, JACK CARRIER 61061F - GUSSET SUB-ASSY, QUARTER WHEEL HOUSE, NO.1 61062F - GUSSET SUB-ASSY, QUARTER WHEEL HOUSE, NO.2 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
