TOYOTA DYNA TOYOACE XZU304H-TKMQD7 / POWERTRAIN-CHASSIS / POWER TAKE OFF CASE GEAR

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

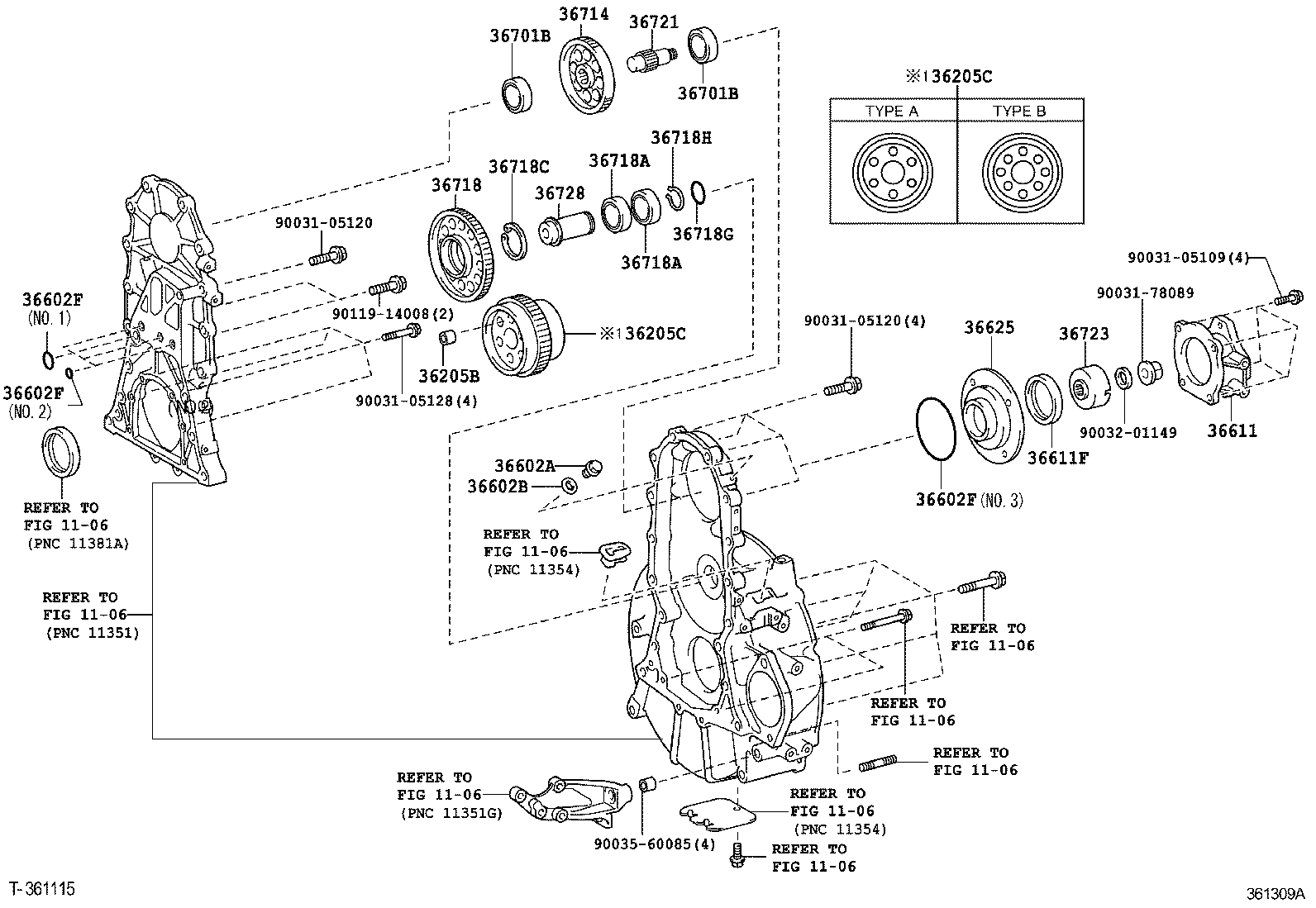

POWER TAKE OFF CASE GEAR

(0610- )IV7

DYNA TOYOACE | POWER TAKE OFF CASE GEAR ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 36205B - COLLAR(FOR SPROCKET TRANSFER DRIVE) 36205C - GEAR SUB-ASSY, POWER TAKE-OFF DRIVE 36205C - GEAR SUB-ASSY, POWER TAKE-OFF DRIVE 36602A - PLUG (FOR CENTER POWER TAKE-OFF CASE) 36602B - GASKET (FOR CENTER POWER TAKE-OFF CASE) 36602F - RING, O(FOR CENTER POWER TAKE-OFF CASE) 36602F - RING, O(FOR CENTER POWER TAKE-OFF CASE) 36602F - RING, O(FOR CENTER POWER TAKE-OFF CASE) 36611 - CASE, POWER TAKE-OFF 36611F - SEAL, OIL (FOR POWER TAKE-OFF CASE) 36625 - COVER, POWER TAKE-OFF BEARING 36701B - BEARING (FOR POWER TAKE-OFF INPUT GEAR) 36701B - BEARING (FOR POWER TAKE-OFF INPUT GEAR) 36714 - GEAR, POWER TAKE-OFF OUTPUT 36718 - GEAR, POWER TAKE-OFF IDLER 36718A - BEARING(FOR POWER TAKE-OFF IDLER GEAR FRONT) 36718A - BEARING(FOR POWER TAKE-OFF IDLER GEAR FRONT) 36718C - RING, HOLE SNAP(FOR POWER TAKE-OFF IDLER GEAR) 36718G - RING, O(FOR POWER TAKE-OFF IDLE GEAR) 36718H - RING, SHAFT SNAP(FOR POWER TAKE-OFF IDLE GEAR) 36721 - SHAFT, POWER TAKE-OFF INPUT GEAR 36723 - SHAFT, POWER TAKE-OFF OUTPUT, NO.1 36728 - SHAFT, POWER TAKE-OFF IDLER ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
