TOYOTA DYNA TOYOACE XZU620D-TWMQB3 / POWERTRAIN-CHASSIS / CLUTCH HOUSING TRANSMISSION CASE MTM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

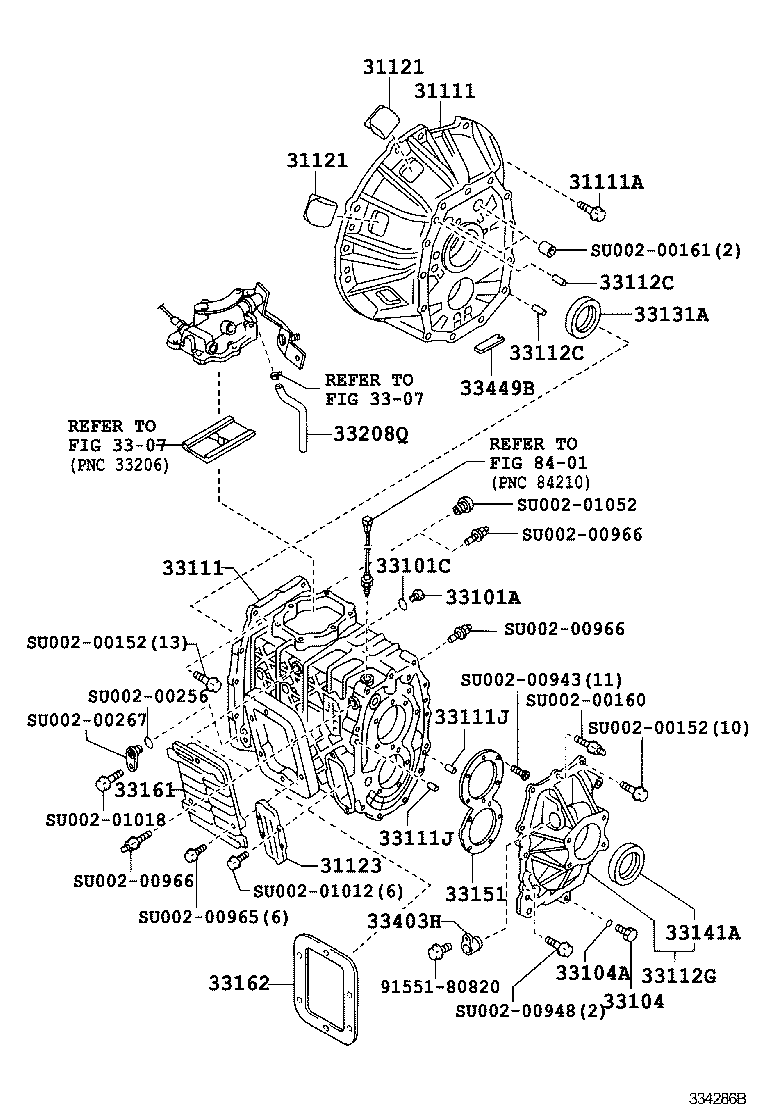

CLUTCH HOUSING TRANSMISSION CASE MTM

MYY5A (1107- )XZC610,630,XZU610,620,630..5F

DYNA TOYOACE | CLUTCH HOUSING TRANSMISSION CASE MTM 31111 - HOUSING, CLUTCH 31111A - BOLT(FOR CLUTCH HOUSING & TRANSMISSION CASE SETTING) 31121 - COVER, CLUTCH HOUSING, NO.1 31121 - COVER, CLUTCH HOUSING, NO.1 31123 - COVER, CLUTCH HOUSING, NO.2 ** Refer Fig ** Refer Fig 33101A - PLUG(FOR MANUAL TRANSMISSION FILLER) 33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG) 33104 - PLUG SUB-ASSY, DRAIN(MTM) 33104A - GASKET, DRAIN PLUG(MTM) 33111 - CASE, MANUAL TRANSMISSION 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) 33112C - PIN, STRAIGHT(FOR TRANSFER ADAPTER) 33112C - PIN, STRAIGHT(FOR TRANSFER ADAPTER) 33112G - CASE, TRANSMISSION, REAR 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) 33141A - SEAL, OIL(FOR TRANSMISSION REAR BEARING RETAINER) 33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM) 33161 - COVER, MANUAL TRANSMISSION POWER TAKE-OFF 33162 - GASKET, MANUAL TRANSMISSION POWER TAKE-OFF COVER 33208Q - HOSE, BREATHER 33403H - COVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE 33449B - MAGNET, TRANSMISSION ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
