TOYOTA DYNA TOYOACE XZU620D-TWMQB3 / POWERTRAIN-CHASSIS / POWER TAKE OFF LEVER LINK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

POWER TAKE OFF LEVER LINK

(1107- )XZC610,630,XZU610,620,630..5F

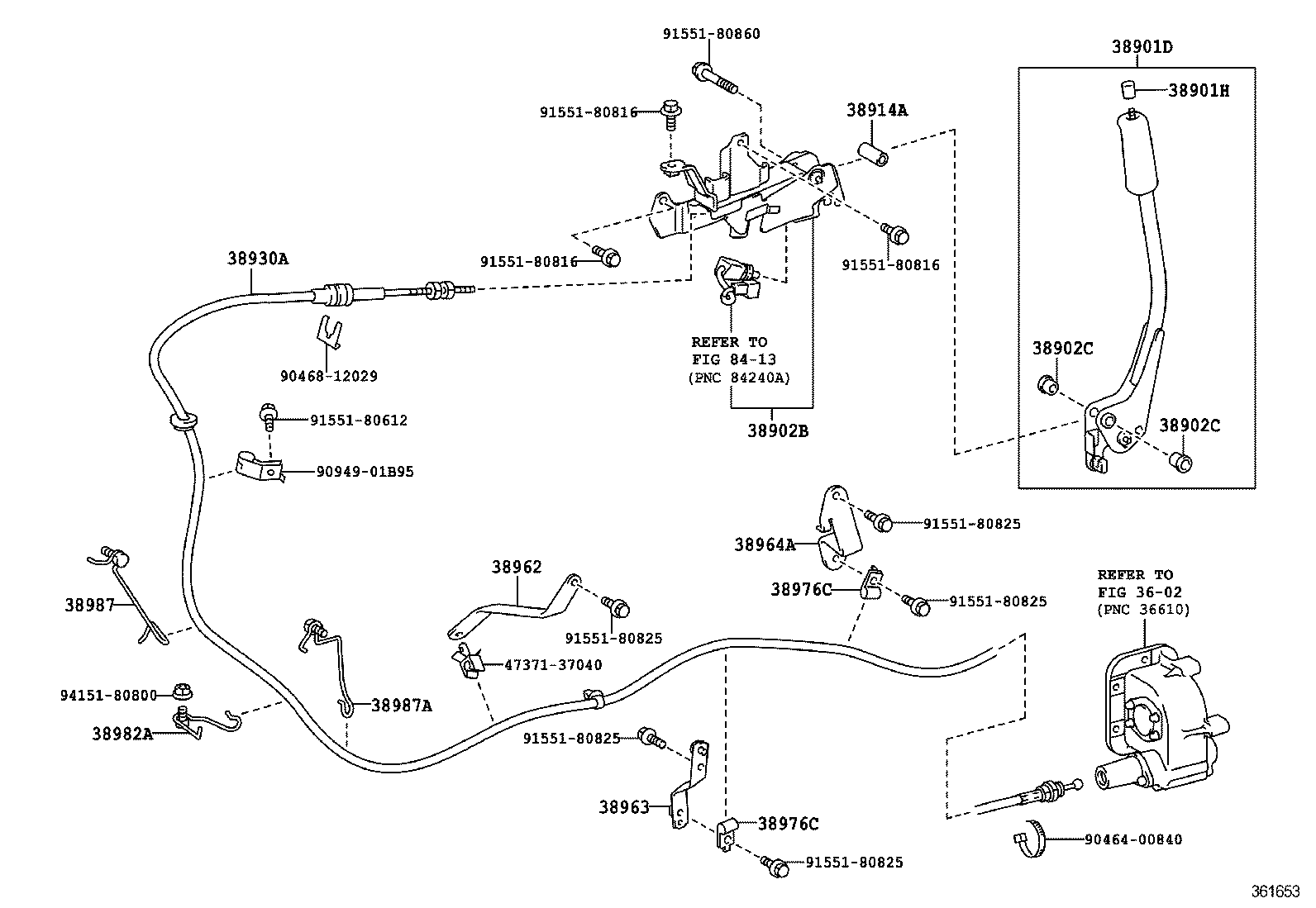

DYNA TOYOACE | POWER TAKE OFF LEVER LINK ** Refer Fig 38901D - LEVER SUB-ASSY, VALVE CONTROL 38901H - KNOB, VALVE CONTROL LEVER 38902B - BRACKET SUB-ASSY, VALVE CONTROL LEVER 38902C - BUSH (FOR VALVE CONTROL LEVER) 38902C - BUSH (FOR VALVE CONTROL LEVER) 38914A - PIPE, VALVE CONTROL LEVER 38930A - CABLE ASSY, PUSH PULL 38962 - BRACKET, CABLE CLAMP, NO.2 38963 - BRACKET, CABLE CLAMP, NO.3 38964A - BRACKET, CABLE CLAMP, NO.4 38976C - CLAMP, PUSH PULL CABLE 38976C - CLAMP, PUSH PULL CABLE 38982A - CLAMP, PUSH PULL CABLE, NO.2 38987 - CLAMP, CABLE PUSH PULL 38987A - CLAMP, PUSH PULL CABLE ** Std Part ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
