TOYOTA HARRIER ACU35W-AWPGK / TOOL-ENGINE-FUEL / CYLINDER HEAD

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

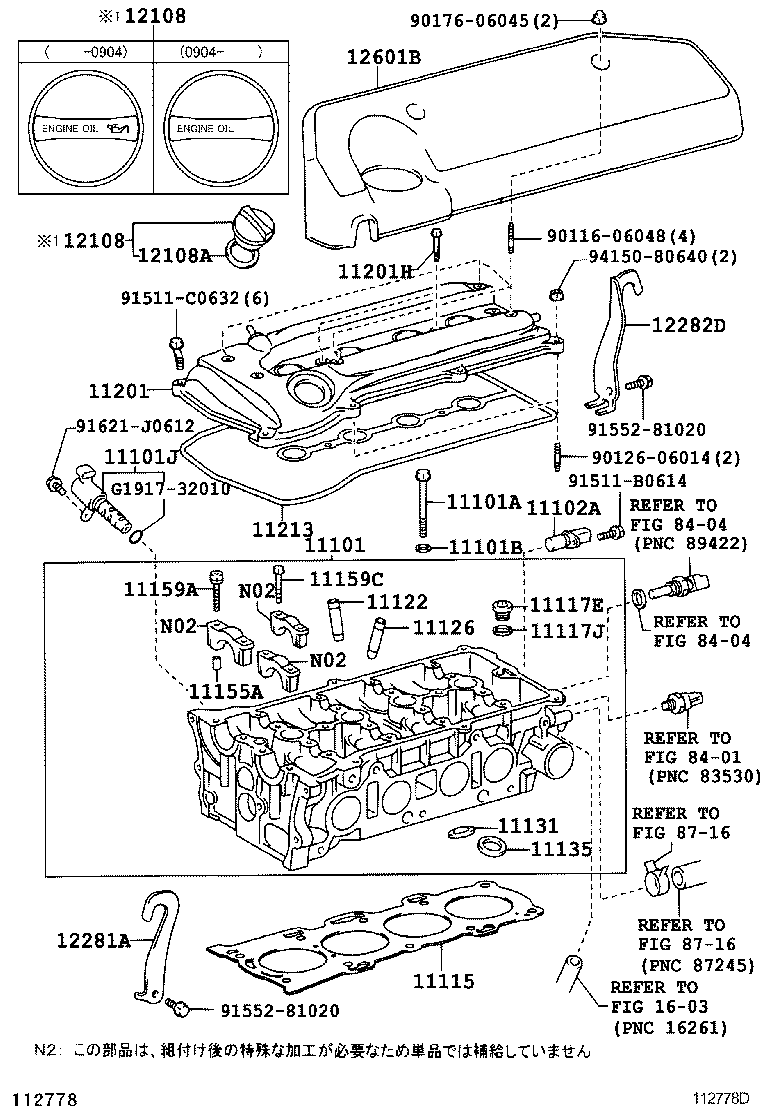

CYLINDER HEAD

(0302- )2AZFE

HARRIER | CYLINDER HEAD 11101 - HEAD SUB-ASSY, CYLINDER 11101A - BOLT(FOR CYLINDER HEAD SET) 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) 11101J - VALVE ASSY, CAMSHAFT TIMING OIL CONTROL 11102A - SENSOR, CAMSHAFT POSITION 11115 - GASKET, CYLINDER HEAD 11117E - PLUG, W/HEAD STRAIGHT SCREW, NO.1 11117J - GASKET(FOR CYLINDER HEAD SCREW PLUG) 11122 - BUSH, INTAKE VALVE GUIDE 11126 - BUSH, EXHAUST VALVE GUIDE 11131 - SEAT, INTAKE VALVE 11135 - SEAT, EXHAUST VALVE 11155A - PIN, RING W/HEAD 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) 11159C - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) 11201 - COVER SUB-ASSY, CYLINDER HEAD 11201H - BOLT(FOR CYLINDER HEAD COVER) 11213 - GASKET, CYLINDER HEAD COVER 12108 - CAP SUB-ASSY, OIL FILLER 12108 - CAP SUB-ASSY, OIL FILLER 12108A - GASKET(FOR OIL FILLER CAP) 12281A - HANGER, ENGINE, NO.1 12282D - HANGER, ENGINE, NO.2 12601B - COVER SUB-ASSY, ENGINE, NO.1 ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
