TOYOTA CAMRY HYBRID AVV50-AEXNB / ELECTRICAL / WIRING CLAMP

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

WIRING CLAMP

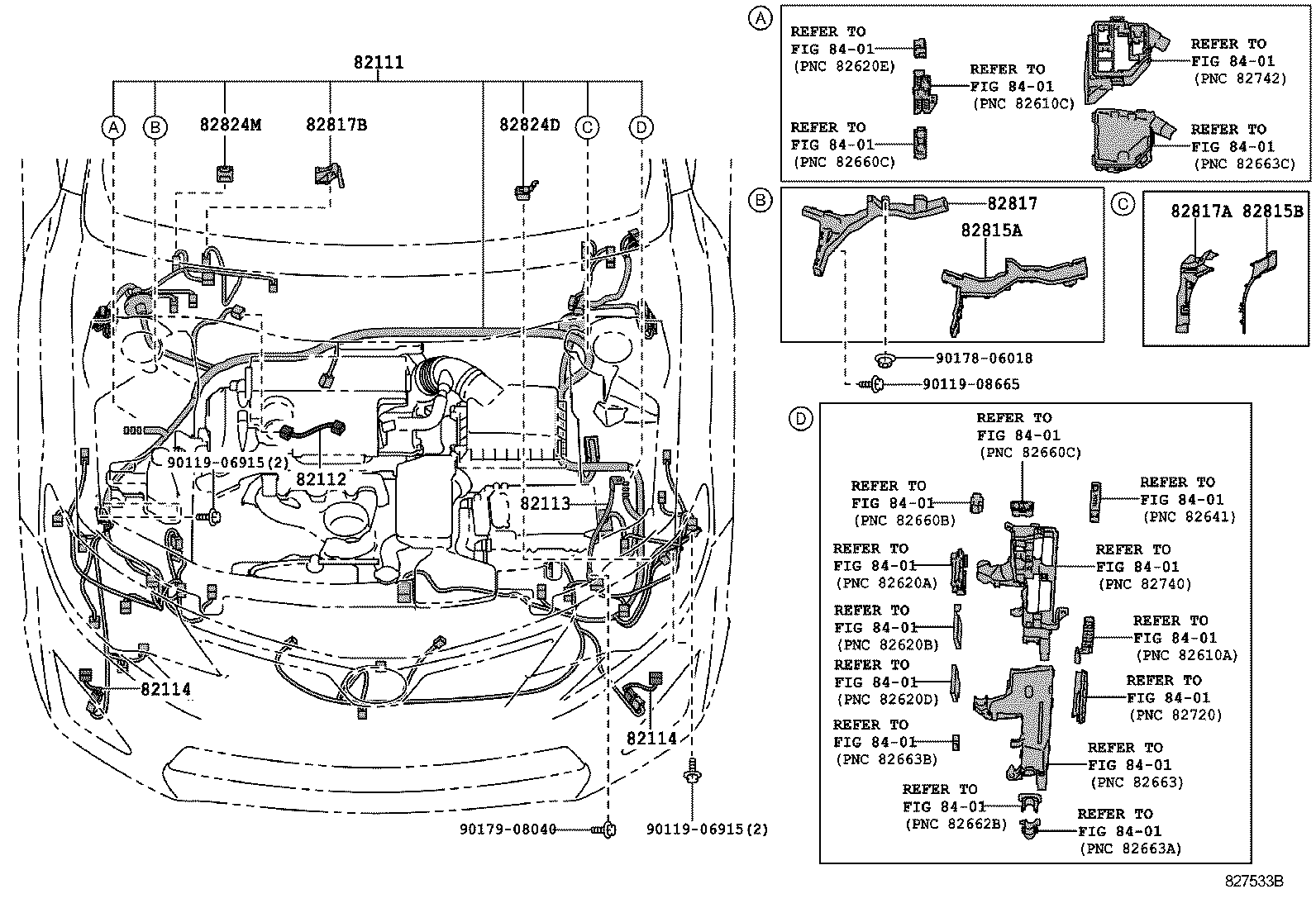

ｴﾝｼﾞﾝﾙｰﾑ ILLUST NO. 1 OF10(1108- )

CAMRY HYBRID | WIRING CLAMP 82111 - WIRE, ENGINE ROOM MAIN 82112 - WIRE, ENGINE ROOM, NO.2 82113 - WIRE, ENGINE ROOM, NO.3 82114 - WIRE, ENGINE ROOM, NO.4 82114 - WIRE, ENGINE ROOM, NO.4 82815A - COVER, WIRING HARNESS PROTECTOR 82815B - COVER, WIRING HARNESS PROTECTOR 82817 - PROTECTOR, WIRING HARNESS, NO.1 82817A - PROTECTOR, WIRING HARNESS, NO.2 82817B - PROTECTOR, WIRING HARNESS, NO.3 82824D - CONNECTOR, WIRING HARNESS 82824M - CONNECTOR, WIRING HARNESS ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
