TOYOTA DYNA TOYOACE XZU720-TKFSD / ELECTRICAL / WIRING CLAMP

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

WIRING CLAMP

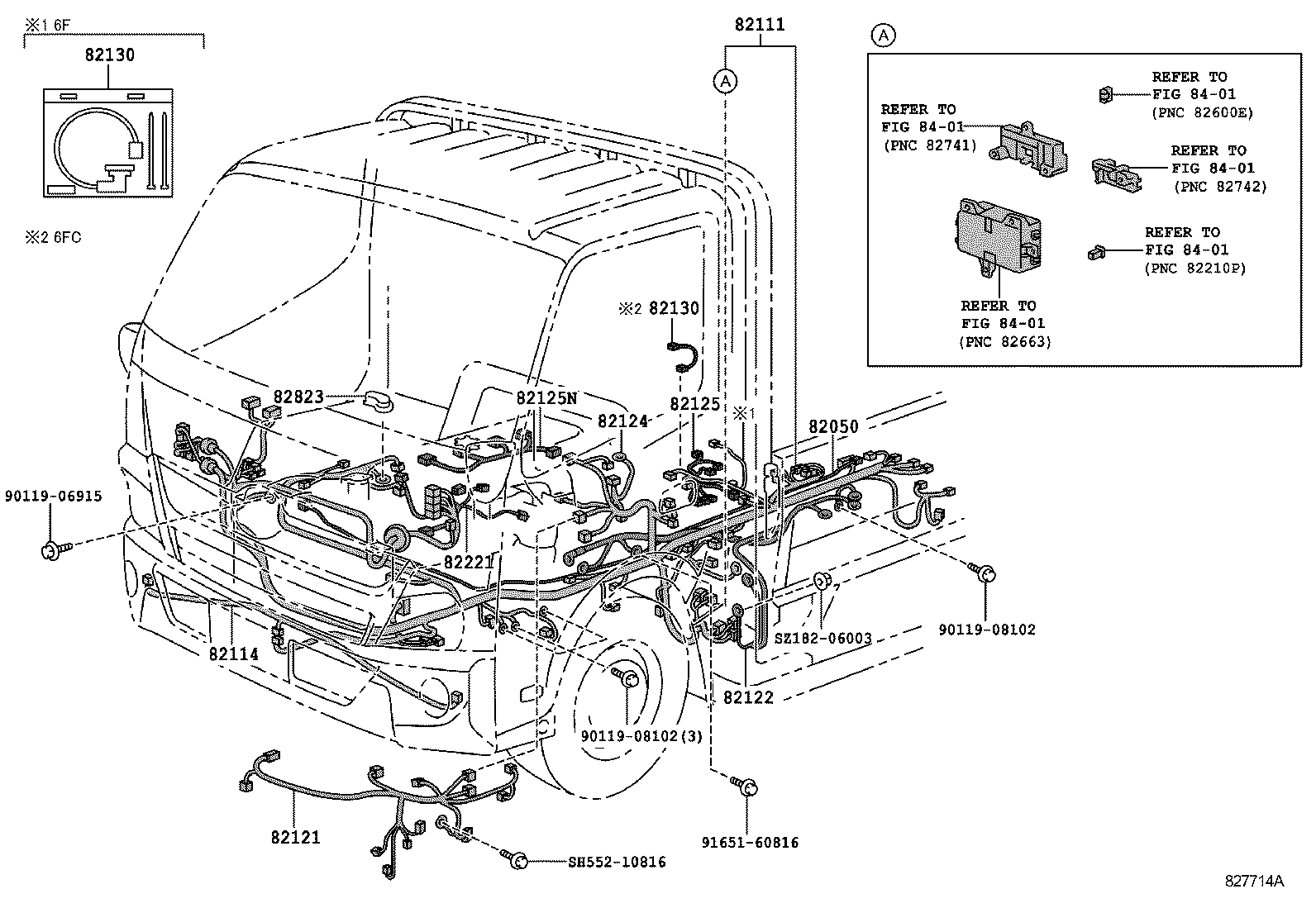

エンジンルーム ILLUST NO. 1 OF 7(1107- )XZC710,XZU700,710,720,730

 DYNA TOYOACE |  WIRING CLAMP 82050 - WIRE ASSY, ENGINE 82111 - WIRE, ENGINE ROOM MAIN 82114 - WIRE, ENGINE ROOM, NO.4 82121 - WIRE, ENGINE 82122 - WIRE, ENGINE, NO.2 82124 - WIRE, ENGINE, NO.4 82125 - WIRE, TRANSMISSION 82125N - WIRE, ENGINE, NO.5 82130 - HARNESS ASSY, CHASSIS WIRE 82130 - HARNESS ASSY, CHASSIS WIRE 82221 - WIRE, OIL PRESSURE SWITCH 82823 - CAP, TERMINAL, NO.1 ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
