TOYOTA LITE TOWNACE S402U-TQRFJD / ELECTRICAL / HEATING AIR CONDITIONING COOLER PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

HEATING AIR CONDITIONING COOLER PIPING

(0801-1108)VAN ; (0801- )PIC

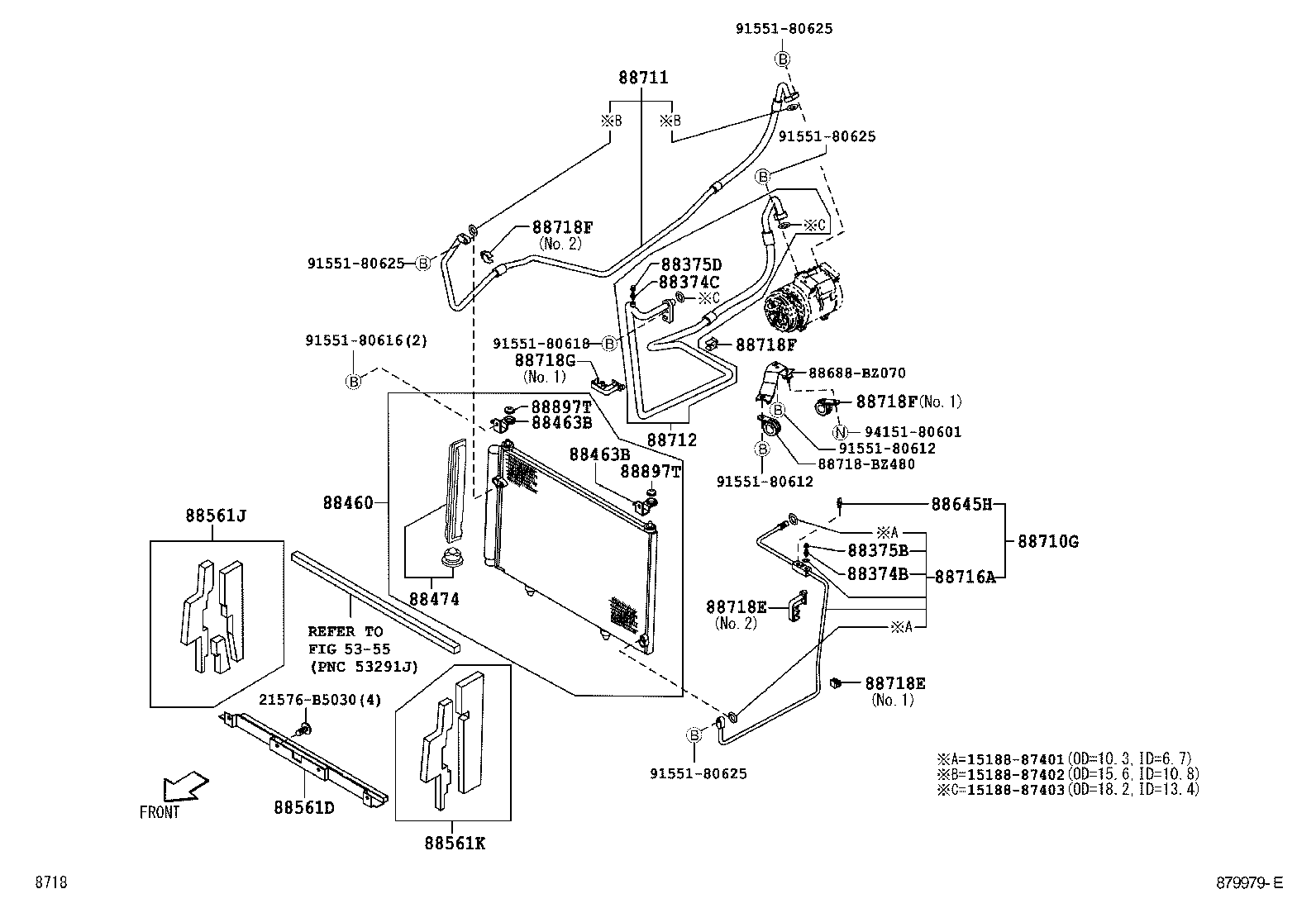

 LITE TOWNACE |  HEATING AIR CONDITIONING COOLER PIPING  ** Std Part  ** Std Part  ** Std Part  ** Std Part ** Refer Fig 88374B - VALVE, SERVICE, NO.1 88374C - VALVE, SERVICE, NO.2 88375B - CAP, SERVICE VALVE, NO.1 88375D - CAP, SERVICE VALVE, NO.2 88460 - CONDENSER ASSY, COOLER 88463B - BRACKET, COOLER CONDENSER, NO.3 88463B - BRACKET, COOLER CONDENSER, NO.3 88474 - DRYER, COOLER 88561D - GRILLE, AIR INLET NO.3 88561J - GRILLE, AIR INLET NO.1 88561K - GRILLE, AIR INLET NO.2 88645H - SWITCH, PRESSURE NO.1  ** Std Part 88710G - TUBE & ACCESSORY ASSY, AIRCONDITIONER, NO.2 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 88716A - PIPE, COOLER REFRIGERANT LIQUID, A  ** Std Part 88718E - CLAMP(FOR COOLER REFRIGERANT PIPE), NO.5 88718E - CLAMP(FOR COOLER REFRIGERANT PIPE), NO.5 88718F - CLAMP(FOR COOLER REFRIGERANT HOSE), NO.1 88718F - CLAMP(FOR COOLER REFRIGERANT HOSE), NO.1 88718F - CLAMP(FOR COOLER REFRIGERANT HOSE), NO.1 88718G - CLAMP(FOR COOLER REFRIGERANT HOSE), NO.2 88897T - GROMMET, COOLER 88897T - GROMMET, COOLER  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
