TOYOTA PRIUS A ALPHA ZVW41W-AXXEB / TOOL-ENGINE-FUEL / AIR CLEANER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

AIR CLEANER

(1104- )

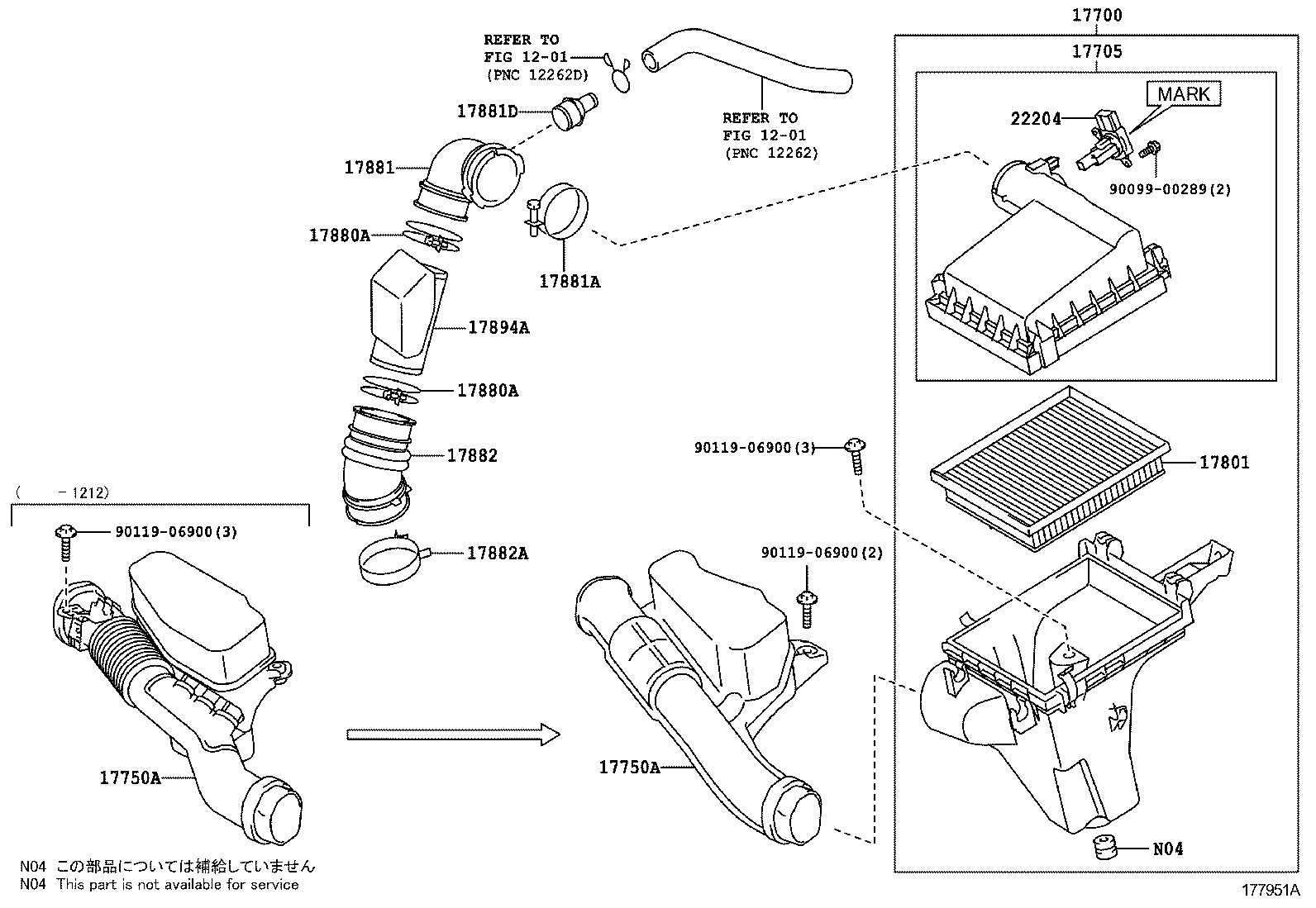

 PRIUS A ALPHA |  AIR CLEANER ** Refer Fig ** Refer Fig 17700 - CLEANER ASSY, AIR 17705 - CAP SUB-ASSY, AIR CLEANER 17750A - INLET ASSY, AIR CLEANER 17750A - INLET ASSY, AIR CLEANER 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER 17880A - CLAMP, HOSE 17880A - CLAMP, HOSE 17881 - HOSE, AIR CLEANER, NO.1 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) 17881D - TUBE, UNION(FOG AIR CLEANER HOSE) 17882 - HOSE, AIR CLEANER, NO.2 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) 17894A - RESONATOR, INTAKE AIR, NO.2 22204 - METER SUB-ASSY, INTAKE AIR FLOW  ** Std Part  ** Std Part  ** Std Part  ** Std Part
