TOYOTA PROBOX SUCCEED NCP52V-EXPDC / TOOL-ENGINE-FUEL / FUEL INJECTION SYSTEM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

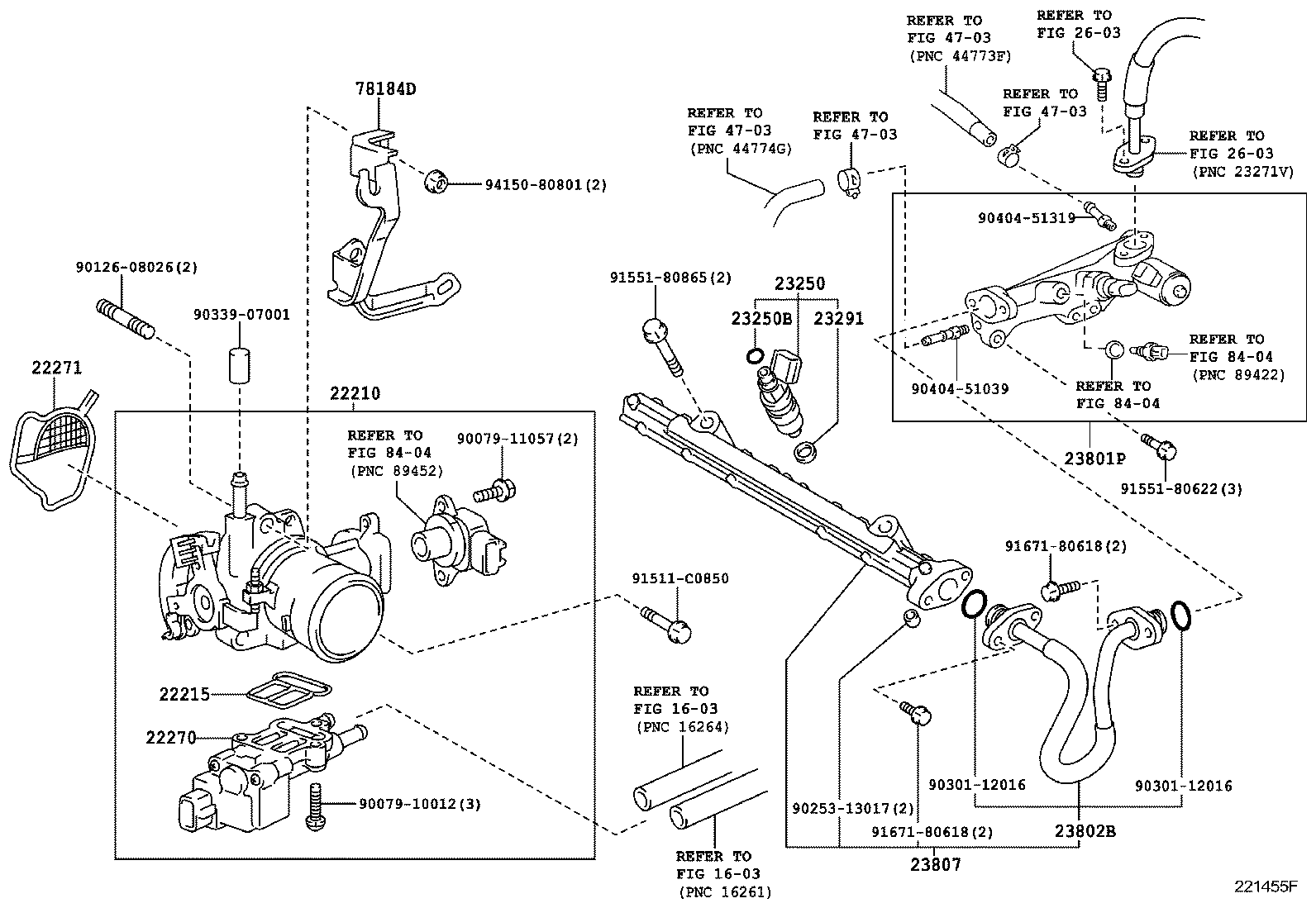

FUEL INJECTION SYSTEM

(0304- )1NZFNE

 PROBOX SUCCEED |  FUEL INJECTION SYSTEM ** Refer Fig ** Refer Fig 22210 - BODY ASSY, THROTTLE 22215 - GASKET, THROTTLE BODY COVER 22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY) 22271 - GASKET, THROTTLE BODY 23250 - INJECTOR ASSY, FUEL 23250B - RING, O(FOR FUEL INJECTOR) 23291 - INSULATOR, INJECTOR VIBRATION 23801P - PIPE SUB-ASSY, FUEL, NO.1 23802B - PIPE SUB-ASSY, FUEL, NO.2 23807 - PIPE SUB-ASSY, FUEL DELIVERY ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 78184D - BRACKET, ACCELERATOR CONTROL CABLE ** Refer Fig ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
