TOYOTA QUICK DELIVERY 200 XZU282K-QLQDY / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

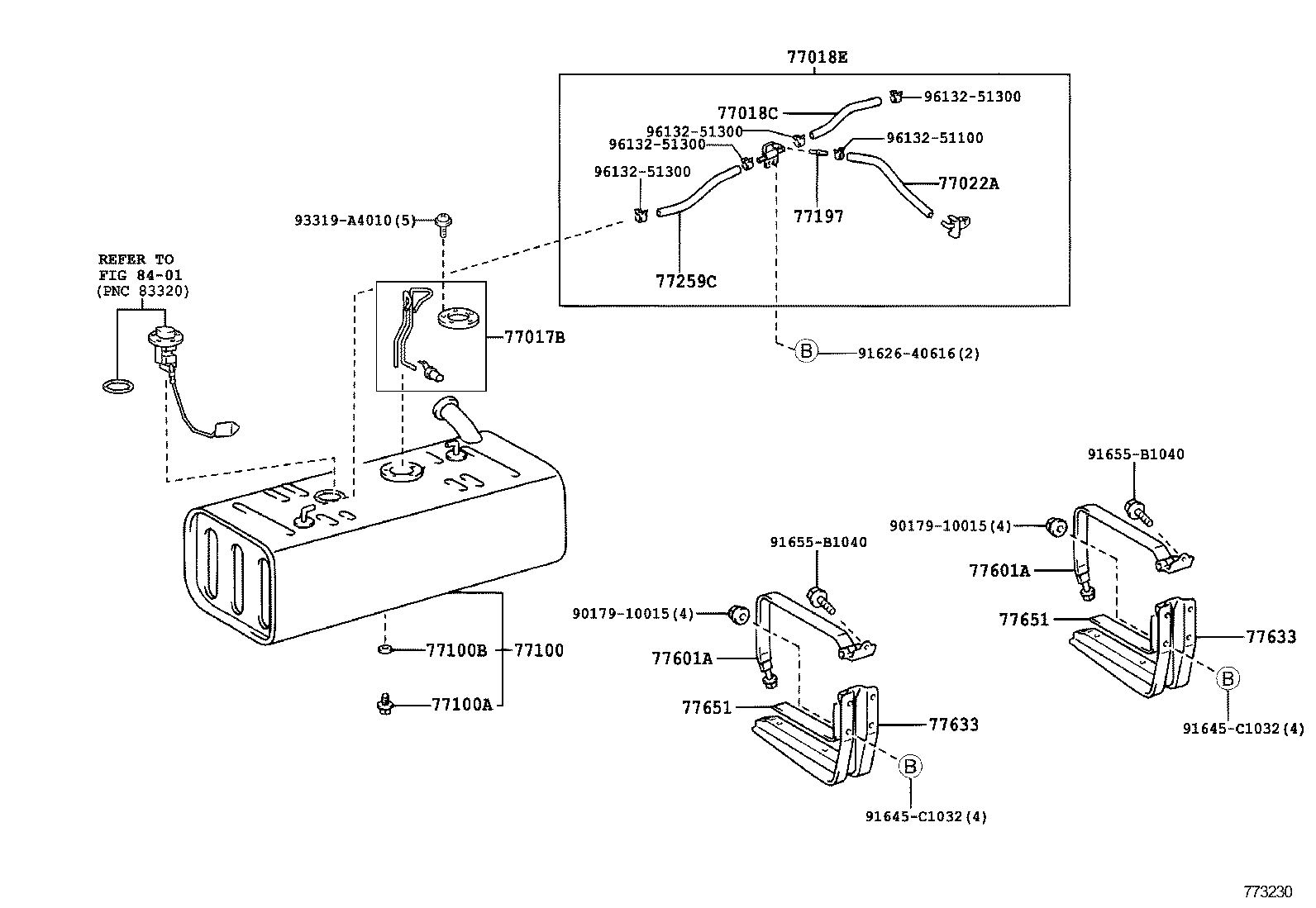

FUEL TANK TUBE

ﾌｭｰｴﾙﾀﾝｸ ILLUST NO. 1 OF 2(1203- )

QUICK DELIVERY 200 | FUEL TANK TUBE 77017B - TUBE SUB-ASSY, FUEL TANK VENT 77018C - HOSE, FUEL NO.1 (FOR FUEL LIQUID VAPOUR SEPARATE VALVE) 77018E - TUBE SUB-ASSY, FUEL TANK EVAPORATION VENT 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) 77100 - TANK ASSY, FUEL 77100A - PLUG(FOR FUEL TANK) 77100B - GASKET(FOR FUEL TANK) 77197 - ORIFICE, FUEL VAPOR 77259C - HOSE, FUEL 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 77633 - STAY, FUEL TANK 77633 - STAY, FUEL TANK 77651 - PACKING, FUEL TANK BRACKET 77651 - PACKING, FUEL TANK BRACKET ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
