TOYOTA QUICK DELIVERY 200 XZU282K-QLQDY / POWERTRAIN-CHASSIS / PARKING BRAKE CABLE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

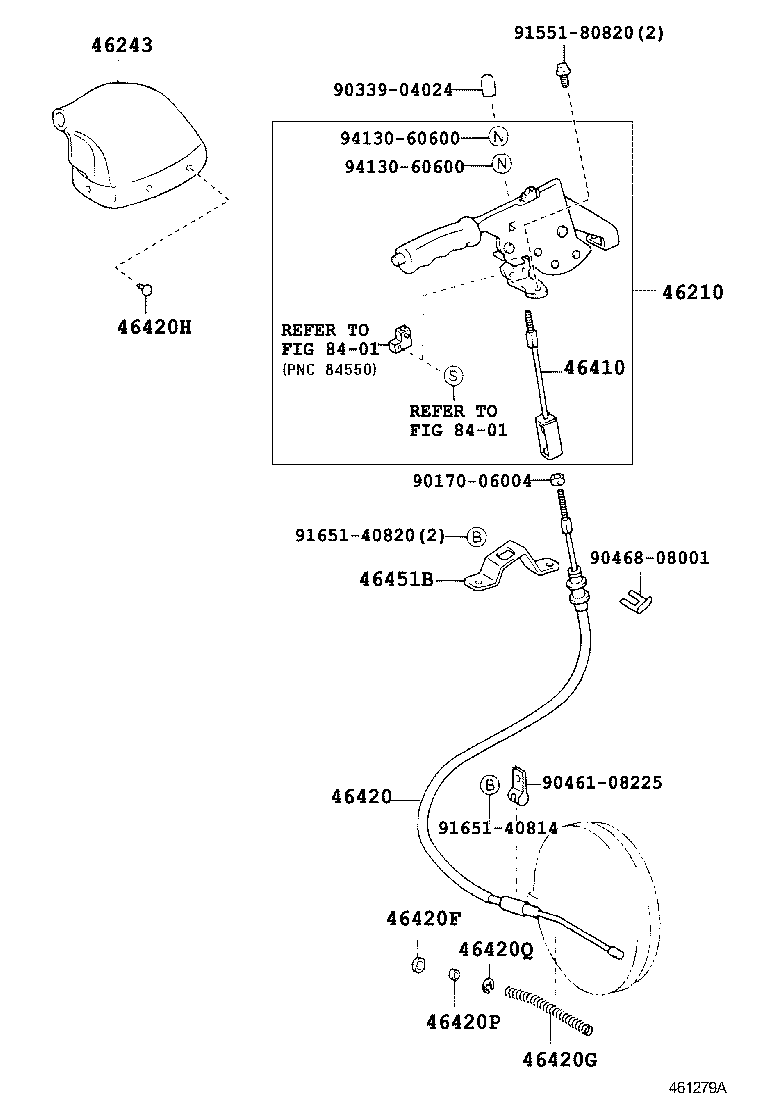

PARKING BRAKE CABLE

ILLUST NO. 1 OF 2(1203- )

QUICK DELIVERY 200 | PARKING BRAKE CABLE 46210 - LEVER ASSY, PARKING BRAKE 46243 - COVER, PARKING BRAKE LEVER 46410 - CABLE ASSY, PARKING BRAKE, NO.1 46420 - CABLE ASSY, PARKING BRAKE, NO.2 46420F - SEAL, DUST(FOR PARKING BRAKE CABLE) 46420G - SPRING(FOR PARKING CABLE INNER WIRE SET) 46420H - CLIP, NO.2(FOR PARKING BRAKE) 46420P - SPACER, PARKING BRAKE 46420Q - RING, E(FOR PARKING BRAKE CABLE) 46451B - BRACKET, PARKING BRAKE CABLE SUPPORT ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
