TOYOTA QUICK DELIVERY 200 XZU282K-QLQDY / POWERTRAIN-CHASSIS / BRAKE BOOSTER VACUUM TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

BRAKE BOOSTER VACUUM TUBE

(1203- )

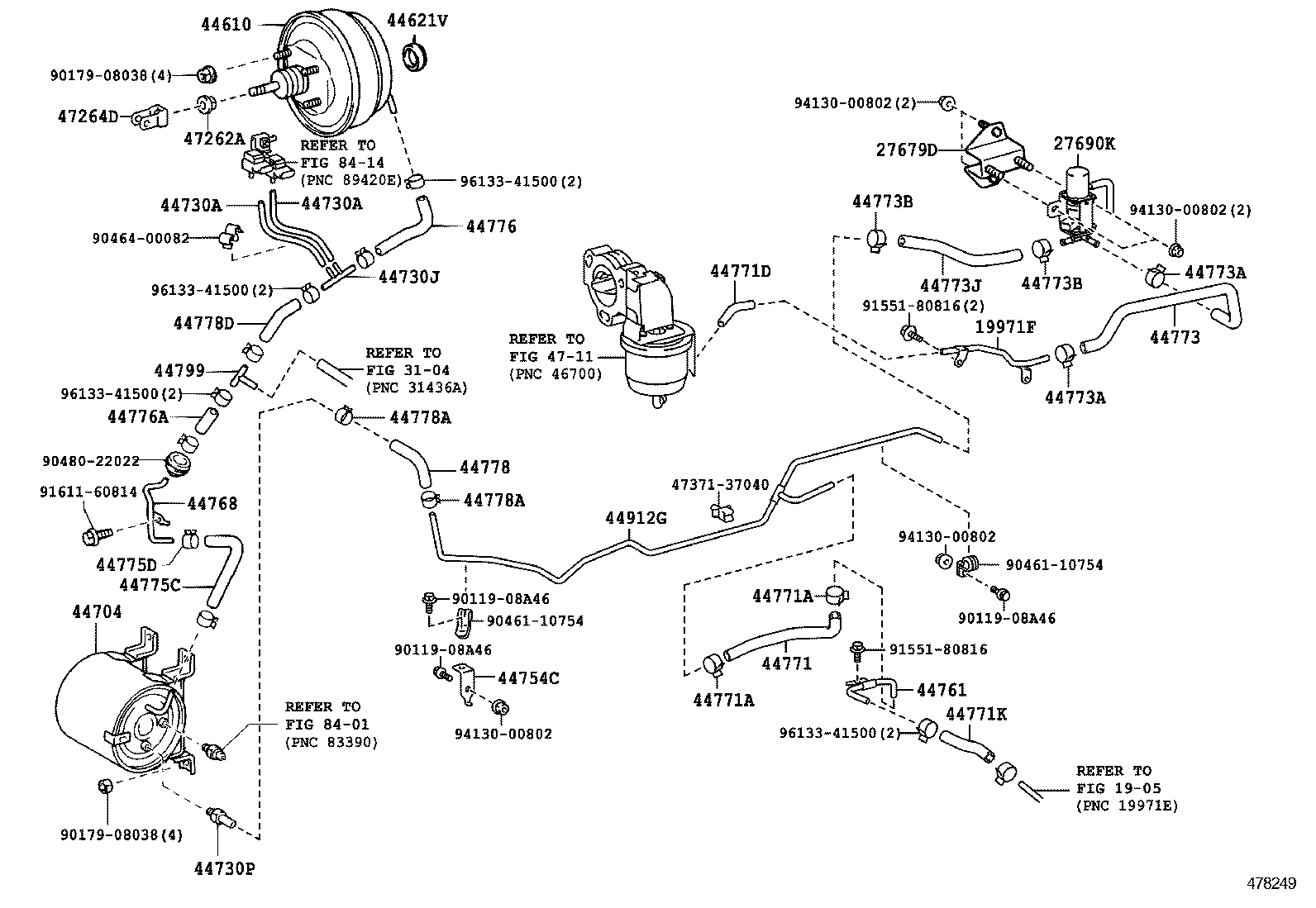

QUICK DELIVERY 200 | BRAKE BOOSTER VACUUM TUBE ** Refer Fig 19971F - PIPE, VACUUM 27679D - BRACKET, EXHAUST BRAKE SOLENOID 27690K - SOLENOID ASSY, W/BRACKET(FOR EXHAUST BRAKE) ** Refer Fig 44610 - BOOSTER ASSY, BRAKE 44621V - SEAL, BOOSTER BODY 44704 - RESERVOIR SUB-ASSY, VACUUM 44730A - HOSE, VACUUM, NO.1 44730A - HOSE, VACUUM, NO.1 44730J - WAY(FOR BOOSTER VACUUM) 44730P - VALVE ASSY, VACUUM CHECK, NO.1 44754C - BRACKET, VACUUM TUBE, NO.1 44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR 44768 - TUBE, BOOSTER VACUUM 44771 - HOSE, VACUUM TUBE CONNECTOR 44771A - CLIP(FOR VACUUM TUBE CONNECTOR HOSE) 44771A - CLIP(FOR VACUUM TUBE CONNECTOR HOSE) 44771D - HOSE, VACUUM TUBE CONNECTOR 44771K - HOSE, VACUUM TUBE TO VACUUM PUMP 44773 - HOSE, VACUUM, NO.2 44773A - CLIP, NO.1(FOR VACUUM HOSE, NO.2) 44773A - CLIP, NO.1(FOR VACUUM HOSE, NO.2) 44773B - CLIP, NO.2(FOR VACUUM HOSE, NO.2) 44773B - CLIP, NO.2(FOR VACUUM HOSE, NO.2) 44773J - HOSE, VACUUM, NO.3 44775C - HOSE, CONNECTOR TO WAY 44775D - CLAMP(FOR CONNECTOR TO WAY HOSE) 44776 - HOSE, BRAKE BOOSTER 44776A - HOSE, VACUUM RESERVOIR TO BRAKE BOOSTER 44778 - HOSE, CONNECTOR TO CHECK VALVE 44778A - CLIP(FOR CONNECTOR TO CHECK VALVE HOSE) 44778A - CLIP(FOR CONNECTOR TO CHECK VALVE HOSE) 44778D - HOSE, VACUUM TUBE TO CONNECTOR TUBE 44799 - WAY, BRAKE VACUUM HOSE 44912G - TUBE, 3 WAY TO MAGNETIC VALVE ** Refer Fig 47262A - NUT, MASTER CYLINDER PUSH ROD CLEVIS LOCK 47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD ** Std Part ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
