TOYOTA QUICK DELIVERY 200 XZU282K-QLQDY / POWERTRAIN-CHASSIS / FRONT SPRING SHOCK ABSORBER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FRONT SPRING SHOCK ABSORBER

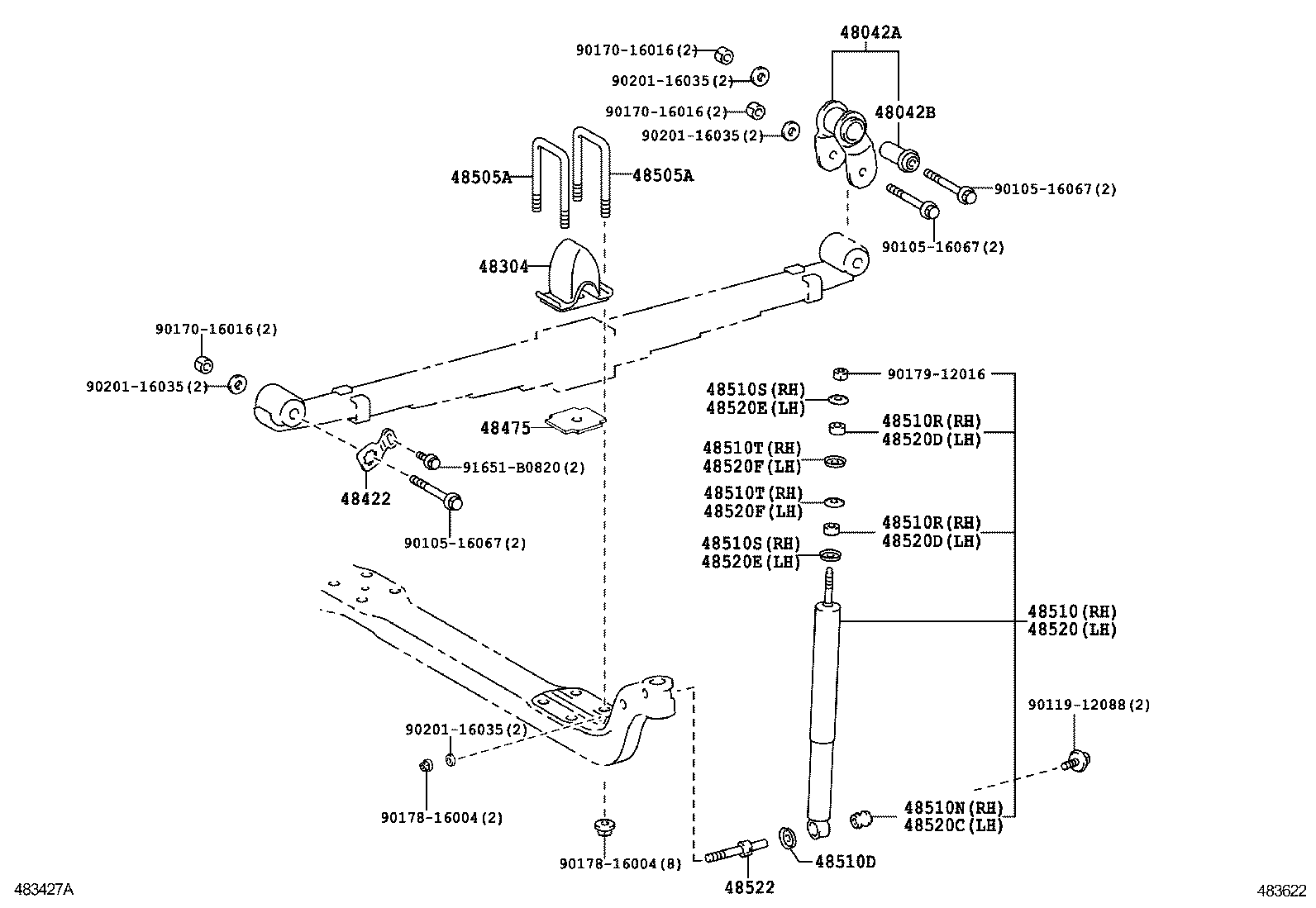

ILLUST NO. 1 OF 2(1203- )

QUICK DELIVERY 200 | FRONT SPRING SHOCK ABSORBER 48042A - SHACKLE SUB-ASSY, FRONT SPRING, NO.2 48042B - BUSH, FRONT SPRING NO.2 SHACKLE 48304 - BUMPER SUB-ASSY, FRONT SPRING, NO.1 48422 - SUPPORT, FRONT SPRING PIN 48475 - PLATE, DISTANCE(FOR FRONT) 48505A - BOLT, U(FOR FRONT SPRING) 48505A - BOLT, U(FOR FRONT SPRING) 48510 - ABSORBER ASSY, SHOCK, FRONT RH 48510D - WASHER, FRONT SHOCK ABSORBER CUSHION, NO.1 48510N - BUSH(FOR FRONT SHOCK ABSORBER RH) 48510R - CUSHION, FRONT SHOCK ABSORBER, NO.1 RH 48510R - CUSHION, FRONT SHOCK ABSORBER, NO.1 RH 48510S - RETAINER, FRONT SHOCK ABSORBER CUSHION, NO.1 RH 48510S - RETAINER, FRONT SHOCK ABSORBER CUSHION, NO.1 RH 48510T - RETAINER, FRONT SHOCK ABSORBER CUSHION, NO.2 RH 48510T - RETAINER, FRONT SHOCK ABSORBER CUSHION, NO.2 RH 48520 - ABSORBER ASSY, SHOCK, FRONT LH 48520C - BUSH(FOR FRONT SHOCK ABSORBER LH) 48520D - CUSHION, FRONT SHOCK ABSORBER, NO.1 LH 48520D - CUSHION, FRONT SHOCK ABSORBER, NO.1 LH 48520E - RETAINER, FRONT SHOCK ABSORBER CUSHION, NO.1 LH 48520E - RETAINER, FRONT SHOCK ABSORBER CUSHION, NO.1 LH 48520F - RETAINER, FRONT SHOCK ABSORBER CUSHION, NO.2 LH 48520F - RETAINER, FRONT SHOCK ABSORBER CUSHION, NO.2 LH 48522 - PIN, FRONT SHOCK ABSORBER LOWER PIVOT ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
