TOYOTA QUICK DELIVERY 200 XZU282K-QLQDY / TOOL-ENGINE-FUEL / CYLINDER BLOCK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

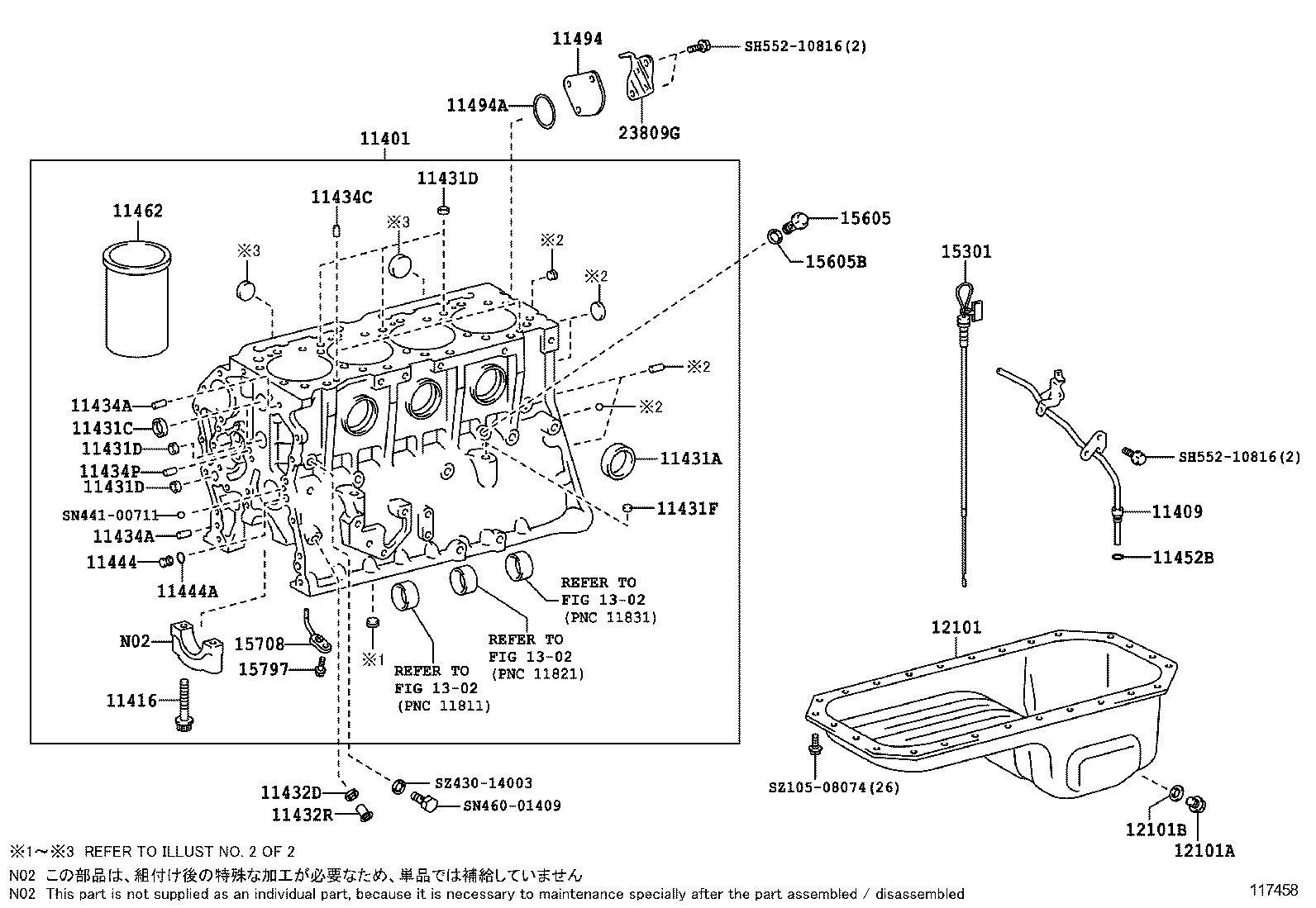

CYLINDER BLOCK

ILLUST NO. 1 OF 2(1203- )

QUICK DELIVERY 200 | CYLINDER BLOCK 11401 - BLOCK SUB-ASSY, CYLINDER 11409 - GUIDE SUB-ASSY, OIL LEVEL GAGE 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) 11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK) 11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK) 11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK) 11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK) 11431F - PLUG, TIGHT, NO.6(FOR CYLINDER BLOCK) 11432D - GASKET, W/HEAD TAPER SCREW PLUG 11432R - PLUG, W/HEAD STRAIGHT SCREW, NO.1(FOR CYLINDER BLOCK) 11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET) 11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET) 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) 11434P - PIN, STRAIGHT(FOR OIL PUMP SET) 11444 - PLUG, HOLE 11444A - RING, O 11452B - RING, O(FOR OIL LEVEL GAGE GUIDE) 11462 - LINER, CYLINDER 11494 - PLATE, OIL HOLE COVER 11494A - RING, O(FOR OIL HOLE COVER) 12101 - PAN SUB-ASSY, OIL 12101A - PLUG(FOR OIL PAN DRAIN) 12101B - GASKET(FOR OIL PAN DRAIN PLUG) ** Refer Fig ** Refer Fig ** Refer Fig 15301 - GAGE SUB-ASSY, OIL LEVEL 15605 - VALVE SUB-ASSY, OIL CHECK 15605B - GASKET(FOR OIL CHECK VALVE) 15708 - NOZZLE SUB-ASSY, OIL, NO.1 15797 - BOLT, OIL NOZZLE UNION 23809G - SUPPORT SUB-ASSY, FUEL PIPE ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
