TOYOTA QUICK DELIVERY 200 XZU282K-QLQDY / TOOL-ENGINE-FUEL / AIR CLEANER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

AIR CLEANER

(1203- )

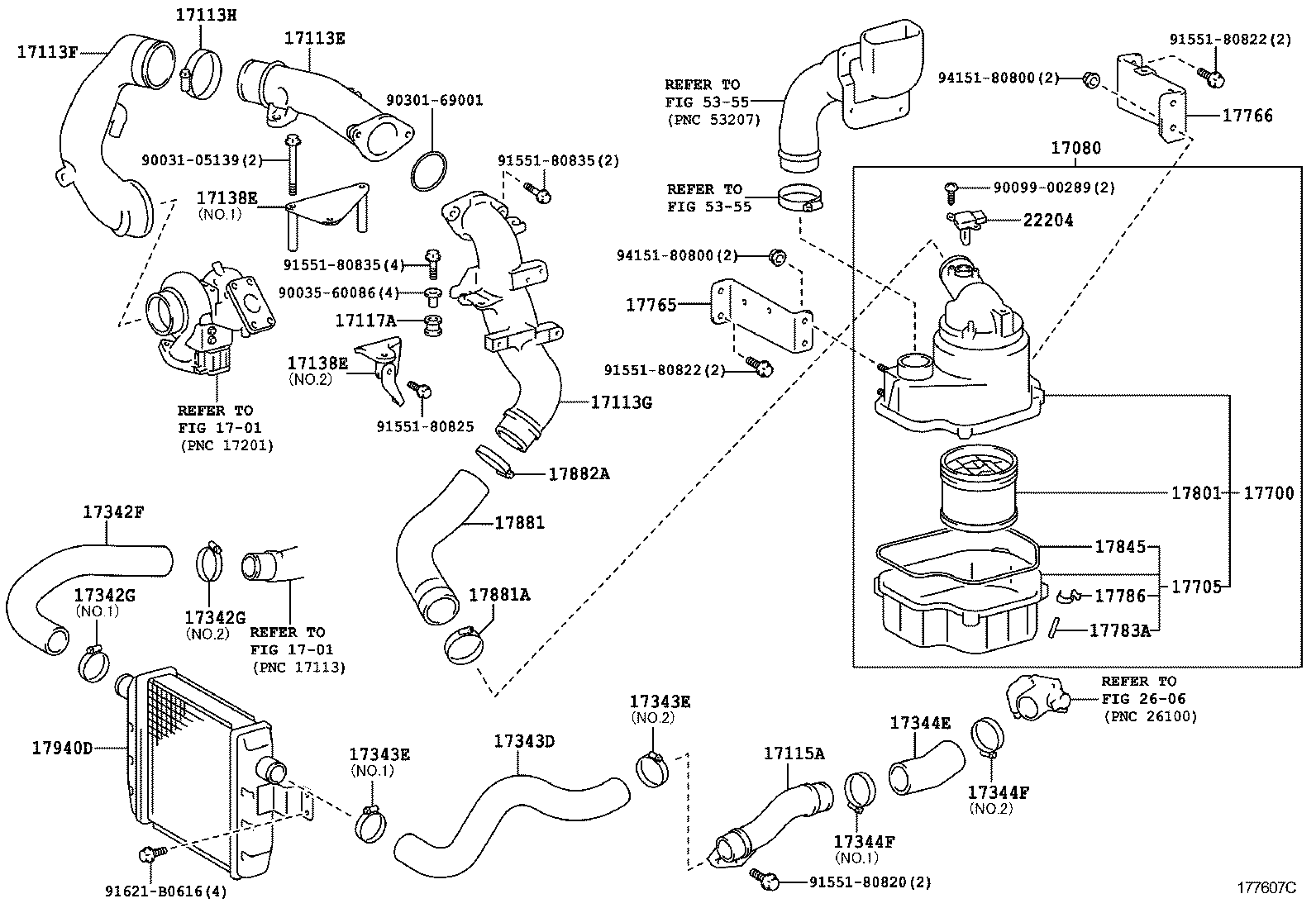

QUICK DELIVERY 200 | AIR CLEANER ** Refer Fig ** Refer Fig 17080 - CLEANER ASSY, AIR W/AIR FLOW METER 17113E - PIPE, INTAKE, NO.1 17113F - PIPE, INTAKE, NO.2 17113G - PIPE, INTAKE, NO.3 17113H - CLAMP, INTAKE PIPE 17115A - PIPE, INTAKE, NO.2 17117A - INSULATOR, INTAKE PIPE 17138E - STAY, INTAKE PIPE 17138E - STAY, INTAKE PIPE 17342F - HOSE, AIR, NO.2(FOR INTERCOOLER) 17342G - CLAMP, HOSE, NO.2(FOR INTERCOOLER) 17342G - CLAMP, HOSE, NO.2(FOR INTERCOOLER) 17343D - HOSE, AIR, NO.3 17343E - CLAMP, HOSE(FOR AIR HOSE, NO.3) 17343E - CLAMP, HOSE(FOR AIR HOSE, NO.3) 17344E - HOSE, AIR, NO.4 17344F - CLAMP, HOSE(FOR AIR HOSE, NO.4) 17344F - CLAMP, HOSE(FOR AIR HOSE, NO.4) 17700 - CLEANER ASSY, AIR 17705 - CAP SUB-ASSY, AIR CLEANER 17765 - STAY, AIR CLEANER, NO.1 17766 - STAY, AIR CLEANER, NO.2 17783A - RETAINER, AIR CLEANER INLET 17786 - CLAMP, AIR CLEANER 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER 17845 - GASKET, AIR CLEANER CAP 17881 - HOSE, AIR CLEANER, NO.1 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) 17940D - INTERCOOLER ASSY 22204 - METER SUB-ASSY, INTAKE AIR FLOW ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
