TOYOTA COASTER XZB50-ZRTNY / TOOL-ENGINE-FUEL / INJECTION NOZZLE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

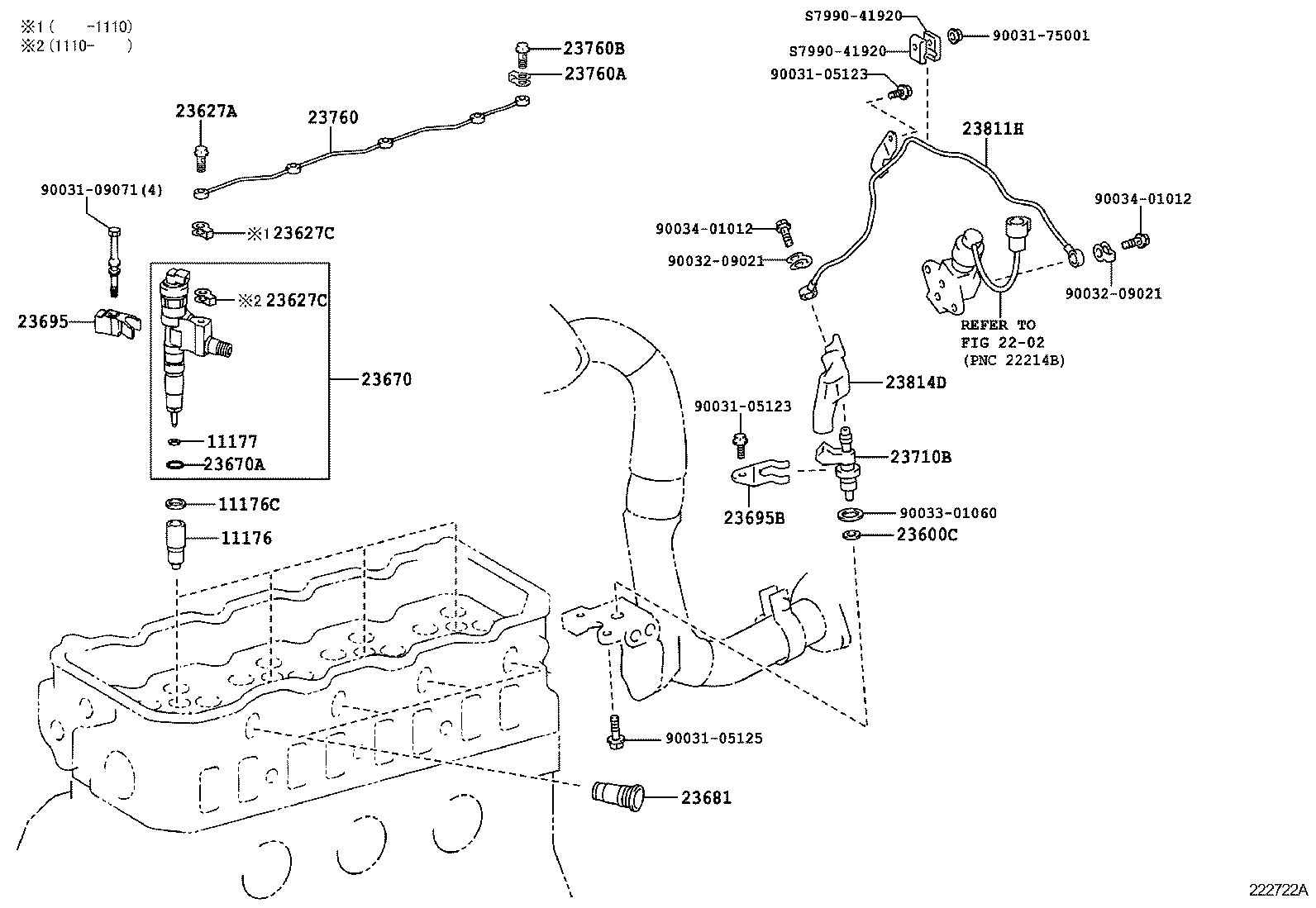

INJECTION NOZZLE

(1108- )N04C

COASTER | INJECTION NOZZLE 11176 - SEAT, INJECTION NOZZLE 11176C - GASKET, NO.2(FOR INJECTION NOZZLE SEAT) 11177 - GASKET, INJECTION NOZZLE SEAT ** Refer Fig 23600C - GASKET(FOR HOLDER & NOZZLE SET) 23627A - SCREW, FOLLOW(FOR NOZZLE) 23627C - WASHER(FOR NOZZLE) 23627C - WASHER(FOR NOZZLE) 23670 - INJECTOR ASSY 23670A - RING, O(FOR INJECTOR ASSY) 23681 - SEAL, NOZZLE HOLDER 23695 - CLAMP, NOZZLE HOLDER, NO.1 23695B - CLAMP, NOZZLE HOLDER, NO.2 23710B - INJECTOR ASSY, EXHAUST FUEL ADDITION 23760 - PIPE ASSY, NOZZLE LEAKAGE 23760A - GASKET 23760B - BOLT, UNION(FOR NOZZLE LEAKAGE PIPE) 23811H - PIPE, FUEL, NO.1 23814D - PIPE, FUEL DELIVERY ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
