TOYOTA CROWN HYBRID AWS210-AEXYH / BODY / FRONT SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

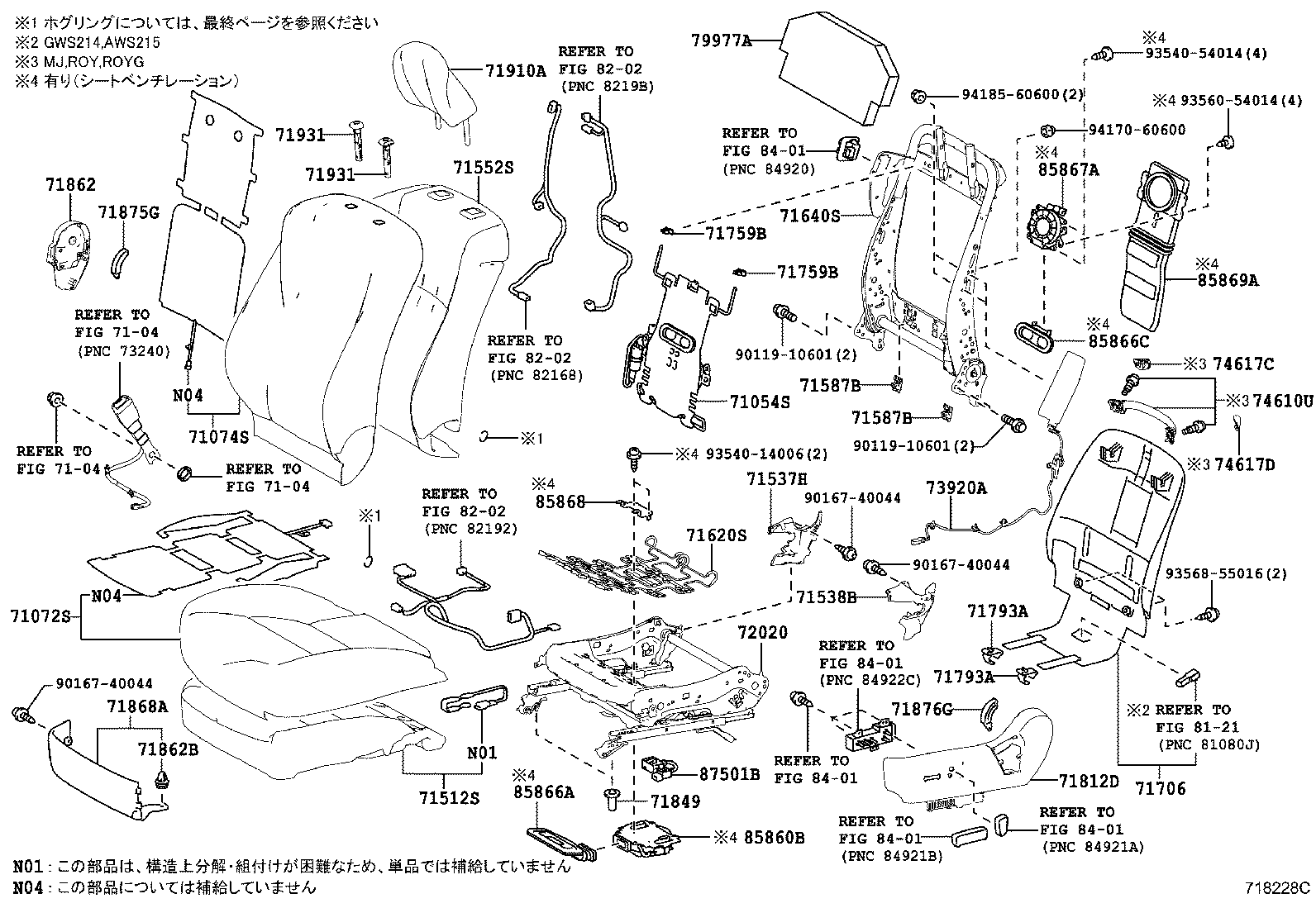

FRONT SEAT SEAT TRACK

ｼﾞｮｼｭｾｷ (ﾊﾟﾜｰｼｰﾄ&ｼｰﾄﾊﾞｯｸﾎﾞｰﾄﾞ) ILLUST NO. 2 OF 4(1212- )ATHG,ATHS,MJ,ROY,ROYG

CROWN HYBRID | FRONT SEAT SEAT TRACK ** Refer Fig ** Refer Fig ** Refer Fig 71054S - SPRING SUB-ASSY, FRONT SEAT BACK, LH 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) 71537H - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT) 71538B - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT) 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) 71587B - PROTECTOR, FRONT SEAT BACK EDGE 71587B - PROTECTOR, FRONT SEAT BACK EDGE 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH 71759B - HOOK, FRONT SEAT BACK 71759B - HOOK, FRONT SEAT BACK 71793A - CLIP, FRONT SEAT BACK POCKET 71793A - CLIP, FRONT SEAT BACK POCKET 71812D - SHIELD, FRONT SEAT CUSHION, LH 71849 - CAP, SEAT ADJUSTER COVER, LH 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH 71862B - CLIP(FOR FRONT SEAT SHIELD, LH) 71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) 71910A - HEADREST ASSY, FRONT SEAT 71931 - SUPPORT, FRONT SEAT HEADREST 71931 - SUPPORT, FRONT SEAT HEADREST 72020 - ADJUSTER ASSY, FRONT SEAT, LH 73920A - AIR BAG ASSY, FRONT SEAT, LH 74610U - GRIP ASSY, ASSIST 74617C - PLUG, ASSIST GRIP 74617D - PLUG, ASSIST GRIP 79977A - FELT, SEAT BACK ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 85860B - BLOWER ASSY, SEAT CUSHION CLIMATE CONTROL, LH 85866A - DUCT, SEAT CUSHION CLIMATE CONTROL, LH 85866C - DUCT, SEAT BACK CLIMATE CONTROL, LH 85867A - BLOWER, SEAT BACK CLIMATE CONTROL, LH 85868 - BRACKET, SEAT CUSHION CLIMATE CONTROL, RH 85869A - COVER, SEAT BACK CLIMATE CONTROL, LH 87501B - CONTROL SUB-ASSY, SEAT HEATER, LH ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
