TOYOTA DYNA TOYOACE HV XKU720-TPUMC3 / TOOL-ENGINE-FUEL / RADIATOR WATER OUTLET

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

RADIATOR WATER OUTLET

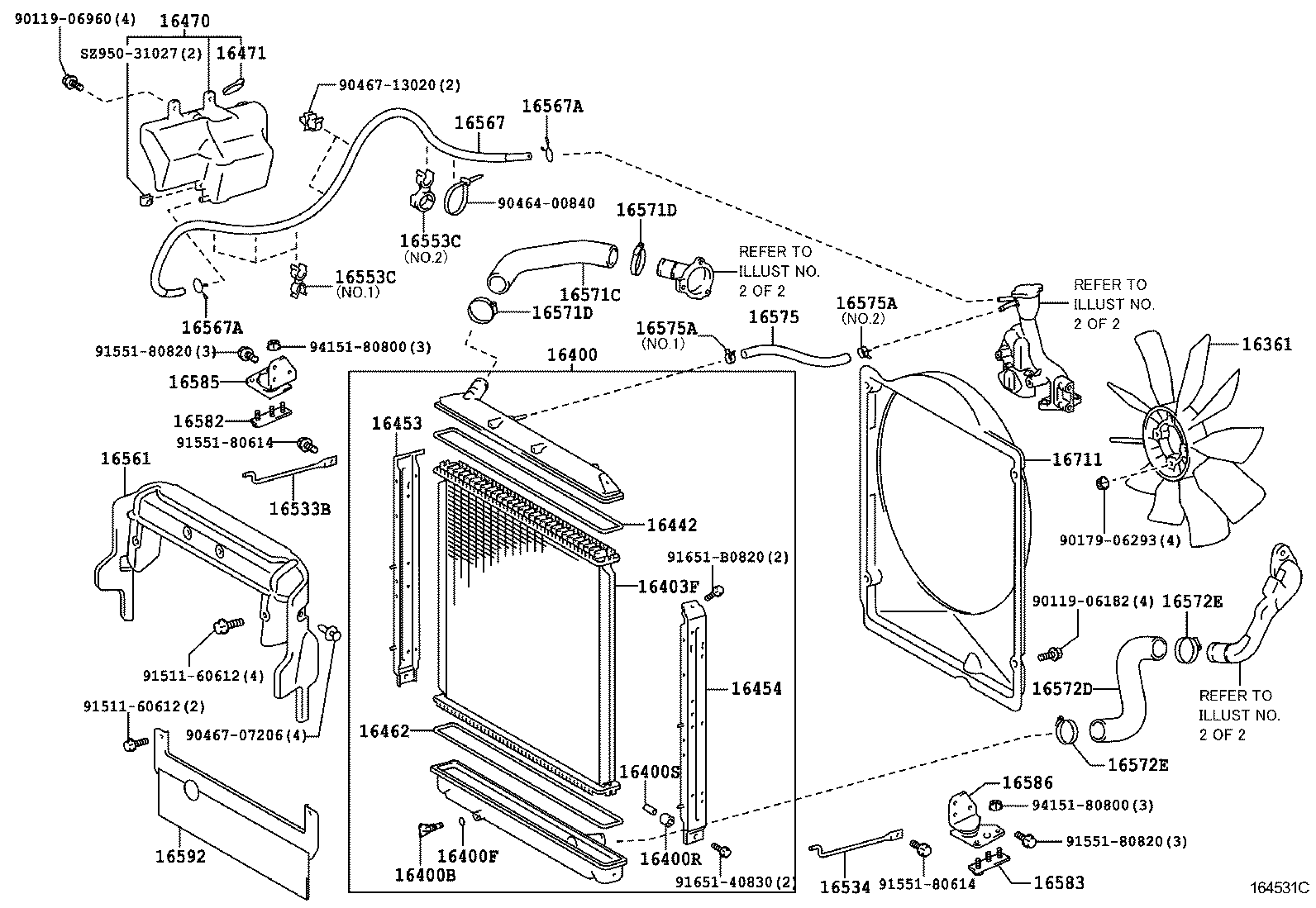

ILLUST NO. 1 OF 2(1107- )

DYNA TOYOACE HV | RADIATOR WATER OUTLET 16361 - FAN 16400 - RADIATOR ASSY 16400B - PLUG, RADIATOR DRAIN COCK 16400F - PACKING(FOR RADIATOR DRAIN COCK) 16400R - BUSHING(FOR RADIATOR) 16400S - COLLAR(FOR RADIATOR) 16403F - CORE SUB-ASSY, RADIATOR 16442 - RING, O(FOR RADIATOR UPPER TANK) 16453 - PLATE, RADIATOR SIDE 16454 - PLATE, RADIATOR SIDE 16462 - RING, O(FOR RADIATOR LOWER TANK) 16470 - TANK ASSY, RADIATOR RESERVE 16471 - CAP SUB-ASSY, RESERVE TANK 16533B - SUPPORT, RADIATOR, NO.1 16534 - SUPPORT, RADIATOR, NO.2 16553C - CLAMP, HOSE 16553C - CLAMP, HOSE 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 16567 - HOSE(FOR RADIATOR RESERVE TANK) 16567A - CLIP(FOR RADIATOR RESERVE TANK HOSE) 16567A - CLIP(FOR RADIATOR RESERVE TANK HOSE) 16571C - HOSE, RADIATOR, NO.1 16571D - CLIP, RADIATOR HOSE, NO.1 16571D - CLIP, RADIATOR HOSE, NO.1 16572D - HOSE, RADIATOR, NO.2 16572E - CLIP, RADIATOR HOSE, NO.2 16572E - CLIP, RADIATOR HOSE, NO.2 16575 - HOSE, RADIATOR, NO.5 16575A - CLIP, RADIATOR HOSE, NO.5 16575A - CLIP, RADIATOR HOSE, NO.5 16582 - BRACKET, RADIATOR, NO.1 16583 - BRACKET, RADIATOR, NO.2 16585 - BRACKET, RADIATOR, NO.3 16586 - BRACKET, RADIATOR, NO.4 16592 - GUIDE, RADIATOR AIR, NO.3 16711 - SHROUD, FAN ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
