TOYOTA DYNA TOYOACE XZU710-TQFQC / BODY / REAR BODY FLOOR FENDER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

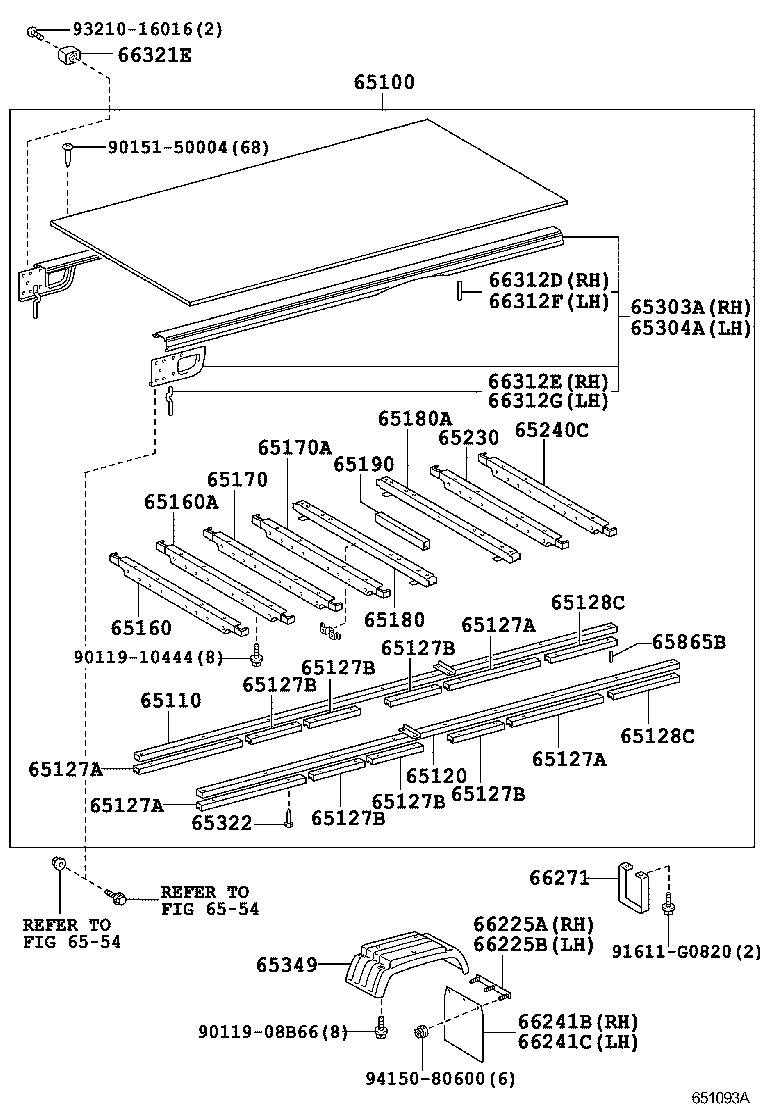

REAR BODY FLOOR FENDER

ﾊﾟﾜｰﾘﾌﾄ (1107- )XZU710..T4..6F..30T..DCRTK..CBU ; (11

DYNA TOYOACE | REAR BODY FLOOR FENDER 65100 - FLOOR ASSY, REAR BODY 65110 - SILL ASSY, MAIN, RH 65120 - SILL ASSY, MAIN, LH 65127A - SHIM, MAIN SILL, LOWER NO.1 65127A - SHIM, MAIN SILL, LOWER NO.1 65127A - SHIM, MAIN SILL, LOWER NO.1 65127A - SHIM, MAIN SILL, LOWER NO.1 65127B - SHIM, MAIN SILL, LOWER NO.2 65127B - SHIM, MAIN SILL, LOWER NO.2 65127B - SHIM, MAIN SILL, LOWER NO.2 65127B - SHIM, MAIN SILL, LOWER NO.2 65127B - SHIM, MAIN SILL, LOWER NO.2 65127B - SHIM, MAIN SILL, LOWER NO.2 65128C - SHIM, MAIN SILL, LOWER NO.4 65128C - SHIM, MAIN SILL, LOWER NO.4 65160 - SILL ASSY, CROSS, NO.2 65160A - SILL ASSY, CROSS, NO.2 65170 - SILL ASSY, CROSS, NO.2 65170A - SILL ASSY, CROSS, NO.3 65180 - SILL ASSY, CROSS, NO.4 65180A - SILL ASSY, CROSS, NO.6 65190 - SILL ASSY, CROSS, NO.5 65230 - SILL ASSY, CROSS, NO.8 65240C - SILL ASSY, CROSS, NO.9 65303A - FRAME SUB-ASSY, FLOOR SIDE, RH 65304A - FRAME SUB-ASSY, FLOOR SIDE, LH 65322 - NAIL 65349 - FENDER, FLOOR SIDE ** Refer Fig ** Refer Fig 65865B - PIN, COVER TOP GUIDE 66225A - SUPPORT, BAFFLE RUBBER 66225B - SUPPORT, BUFFLE RUBBER 66241B - BAFFLE, RUBBER 66241C - BUFFLE, RUBBER 66271 - STEP, REAR BODY 66312D - HOOK, ROPE, NO.2 66312E - HOOK, ROPE, NO.2 66312F - HOOK, ROPE, NO.2 66312G - HOOK, ROPE, NO.2 66321E - BUMPER, GATE RUBBER ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
