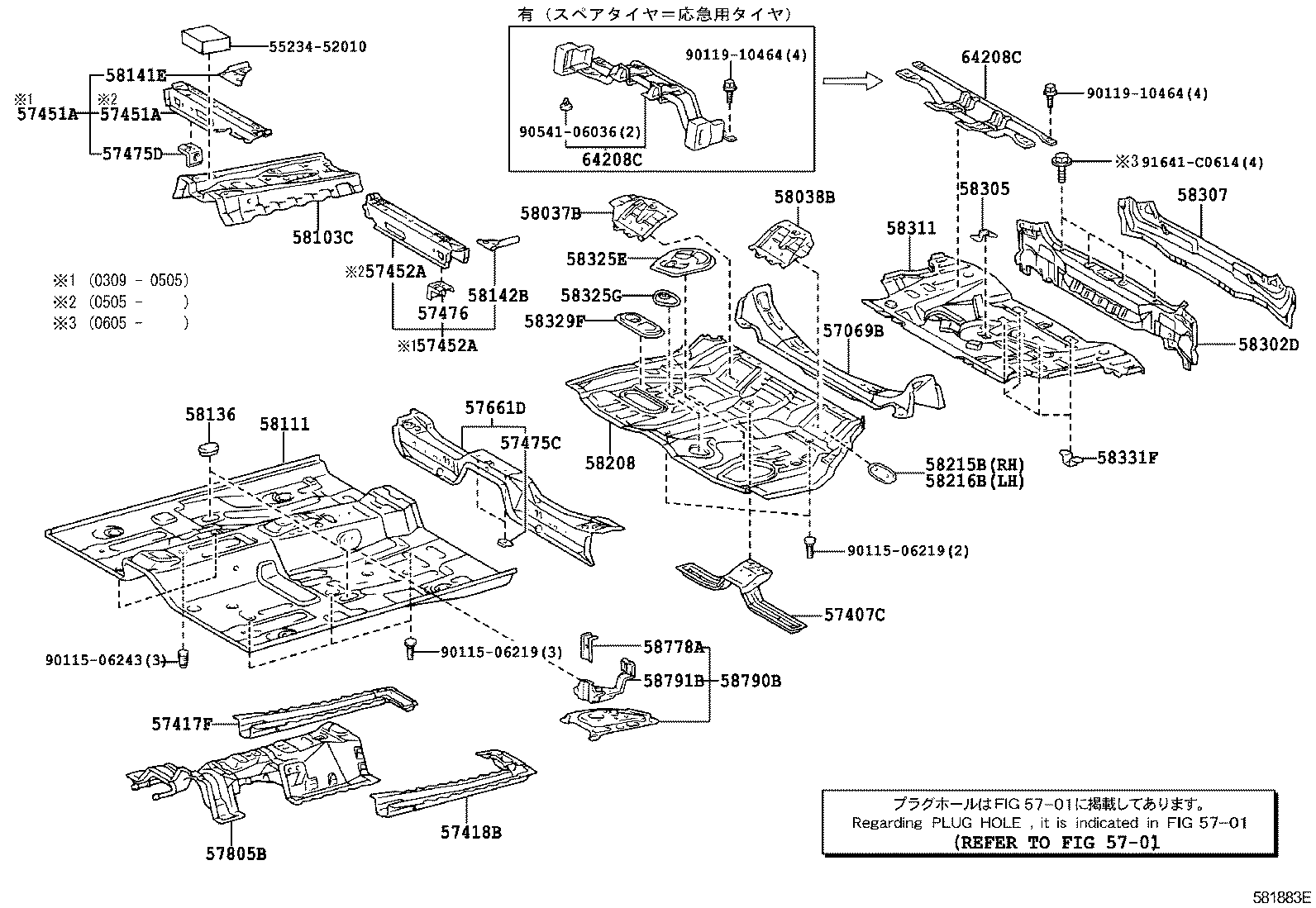

TOYOTA SIENTA NCP85G-KWPUK / BODY / FLOOR PAN LOWER BACK PANEL

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FLOOR PAN LOWER BACK PANEL

(0309- )NCP85

SIENTA | FLOOR PAN LOWER BACK PANEL ** Std Part ** Refer Fig 57069B - MEMBER SUB-ASSY, REAR FLOOR CROSS, CENTER 57407C - MEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1 57417F - REINFORCEMENT, FRONT FLOOR UNDER, RH 57418B - REINFORCEMENT, FRONT FLOOR UNDER, LH 57451A - MEMBER, FRONT FLOOR CROSS, RH 57451A - MEMBER, FRONT FLOOR CROSS, RH 57452A - MEMBER, FRONT FLOOR CROSS, NO.2 57452A - MEMBER, FRONT FLOOR CROSS, NO.2 57475C - PLATE, FRONT FLOOR CROSSMEMBER 57475D - PLATE, FRONT FLOOR CROSSMEMBER, RH 57476 - PLATE, FRONT FLOOR CROSSMEMBER, LH 57661D - MEMBER, REAR FLOOR CROSS, FRONT 57805B - REINFORCEMENT SUB-ASSY, BELT ANCHOR, RH 58037B - REINFORCE, CENTER PILLAR TO FLOOR, RH 58038B - REINFORCE, CENTER PILLAR TO FLOOR, LH 58103C - REINFORCEMENT SUB-ASSY, FRONT FLOOR, FRONT 58111 - PAN, FRONT FLOOR 58136 - COVER, FRONT FLOOR HOLE 58141E - REINFORCEMENT, FRONT SIDE MEMBER TO FLOOR PAN, RH 58142B - REINFORCEMNT, FRONT SIDE MEMBER TO FLOOR PAN, LH 58208 - PAN, CENTER FLOOR 58215B - BRACKET, REAR SEAT MOUNTING, RH 58216B - BRACKET, REAR SEAT MOUNTING, LH 58302D - PANEL SUB-ASSY, REAR FLOOR, FRONT 58305 - BRACKET SUB-ASSY, SPARE WHEEL CLAMP 58307 - PANEL SUB-ASSY, BODY LOWER BACK 58311 - PAN, REAR FLOOR 58325E - COVER, REAR FLOOR SERVICE HOLE 58325G - COVER, REAR FLOOR SERVICE HOLE 58329F - COVER, REAR FLOOR SERVICE HOLE, NO.2 58331F - BRACKET, REAR FLOOR HEAT INSULATOR, NO.3 58778A - BRACKET, JACK HOLDER, NO.1 58790B - CARRIER ASSY, JACK 58791B - CARRIER, JACK 64208C - MEMBER SUB-ASSY, ROOM PARTITION CROSS 64208C - MEMBER SUB-ASSY, ROOM PARTITION CROSS ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
