TOYOTA SIENTA NCP85G-KWPUK / BODY / FRONT DOOR PANEL GLASS

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

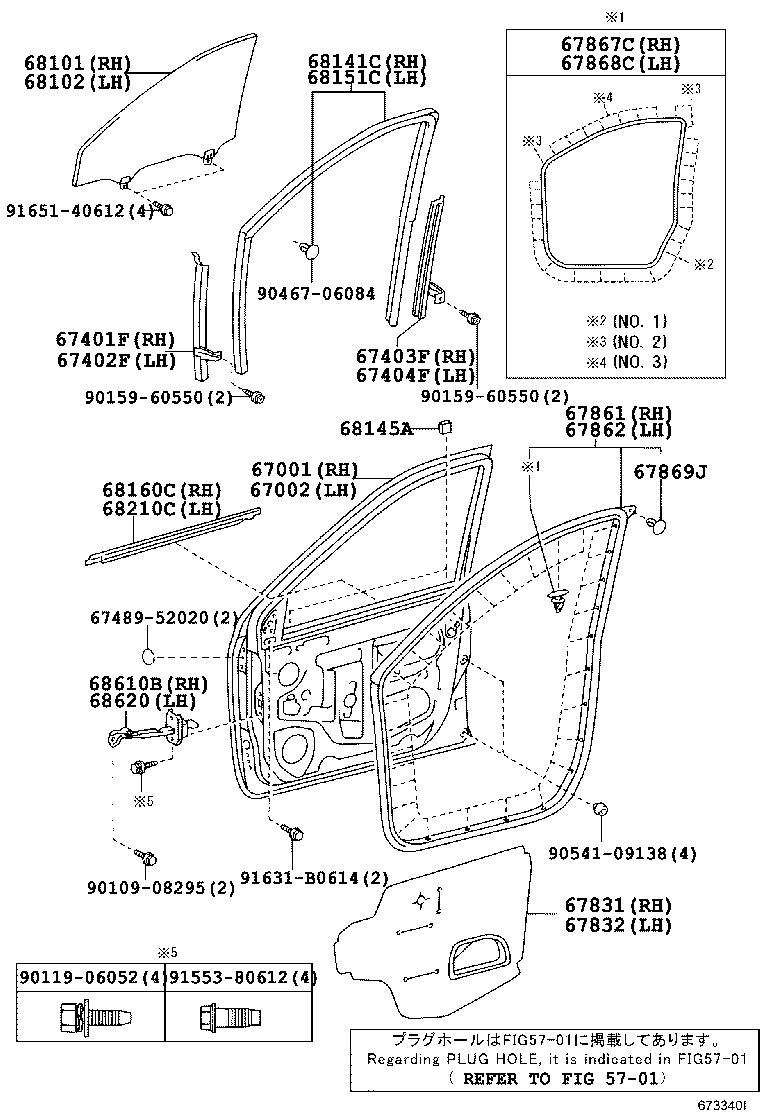

FRONT DOOR PANEL GLASS

ﾄﾞｱﾊﾟﾈﾙ ILLUST NO. 1 OF 3(0309- )

SIENTA | FRONT DOOR PANEL GLASS ** Refer Fig 67001 - PANEL SUB-ASSY, FRONT DOOR, RH 67002 - PANEL SUB-ASSY, FRONT DOOR, LH 67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH 67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH ** Std Part 67831 - COVER, FRONT DOOR SERVICE HOLE, RH 67832 - COVER, FRONT DOOR SERVICE HOLE, LH 67861 - WEATHERSTRIP, FRONT DOOR, RH 67862 - WEATHERSTRIP, FRONT DOOR, LH 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH 67869J - CLIP, FRONT DOOR WEATHERSTRIP 68101 - GLASS SUB-ASSY, FRONT DOOR, RH 68102 - GLASS SUB-ASSY, FRONT DOOR, LH 68141C - RUN, FRONT DOOR GLASS, RH 68145A - CUSHION, FRONT DOOR WINDOW 68151C - RUN, FRONT DOOR GLASS, LH 68160C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH 68210C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH 68610B - CHECK ASSY, FRONT DOOR, RH 68620 - CHECK ASSY, FRONT DOOR, LH ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
