TOYOTA ALPHARD VELLFIRE HV ATH20W-PFXQB / ELECTRICAL / ABS VSC

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

ABS VSC

(1111- )ATH20

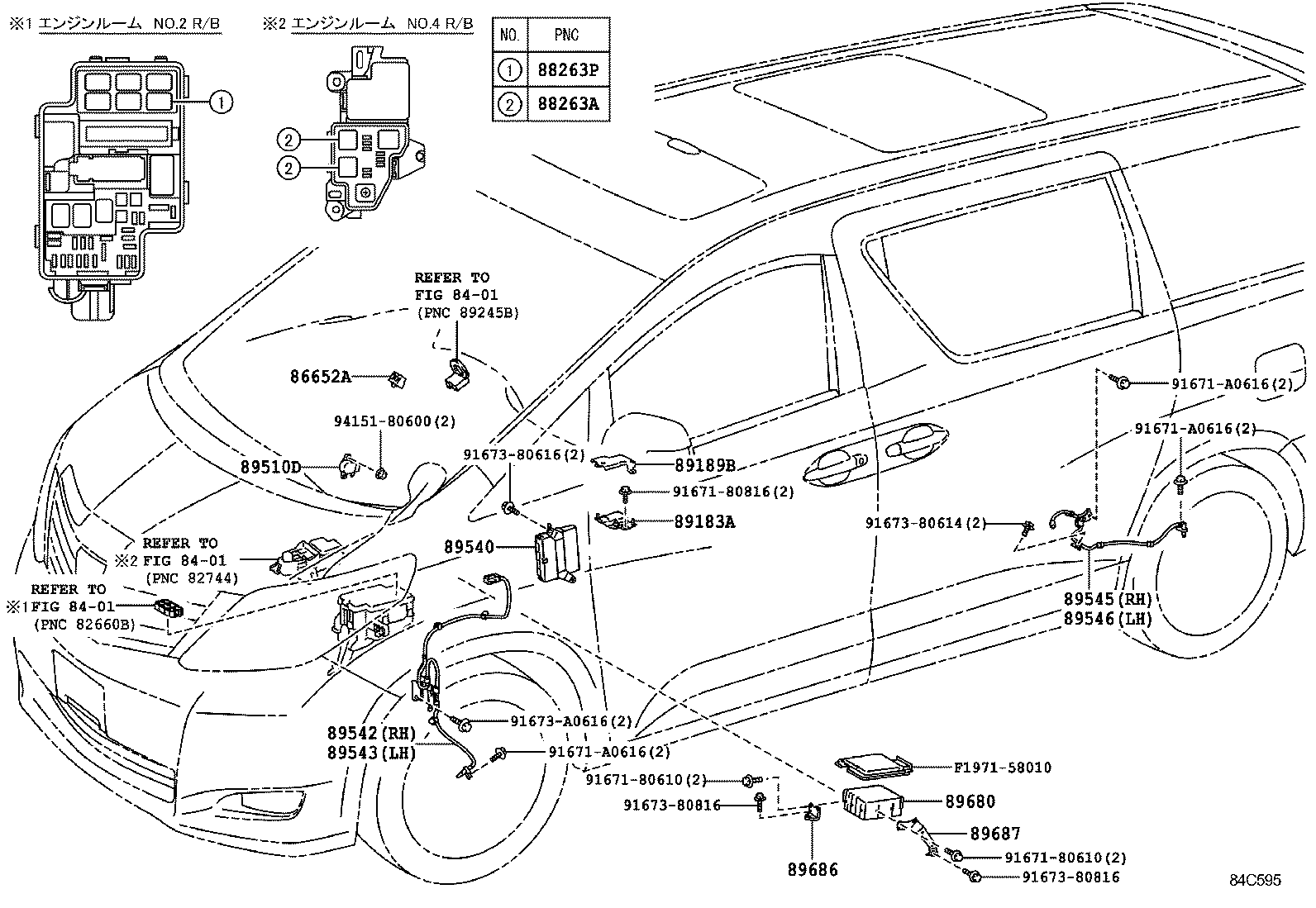

ALPHARD VELLFIRE HV | ABS VSC ** Refer Fig ** Refer Fig ** Refer Fig 86652A - BUZZER ASSY, SKID CONTROL 88263A - RELAY, SKID CONTROL 88263P - RELAY, STOP LAMP CONTROL 89183A - SENSOR, YAWRATE 89189B - BRACKET, YAWRATE SENSOR 89510D - SENSOR ASSY, BRAKE PEDAL STROKE 89540 - COMPUTER ASSY, SKID CONTROL 89542 - SENSOR, SPEED, FRONT RH 89543 - SENSOR, SPEED, FRONT LH 89545 - SENSOR, SPEED, REAR RH 89546 - SENSOR, SPEED, REAR LH 89680 - SUPPLY ASSY, BRAKE CONTROL POWER 89686 - BRACKET, BRAKE CONTROL POWER SUPPLY, NO.1 89687 - BRACKET, BRAKE CONTROL POWER SUPPLY, NO.2 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
