TOYOTA ESTIMA HYBRID AHR20W-GFXQB / BODY / FRONT BUMPER BUMPER STAY

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FRONT BUMPER BUMPER STAY

(1204- )G,X

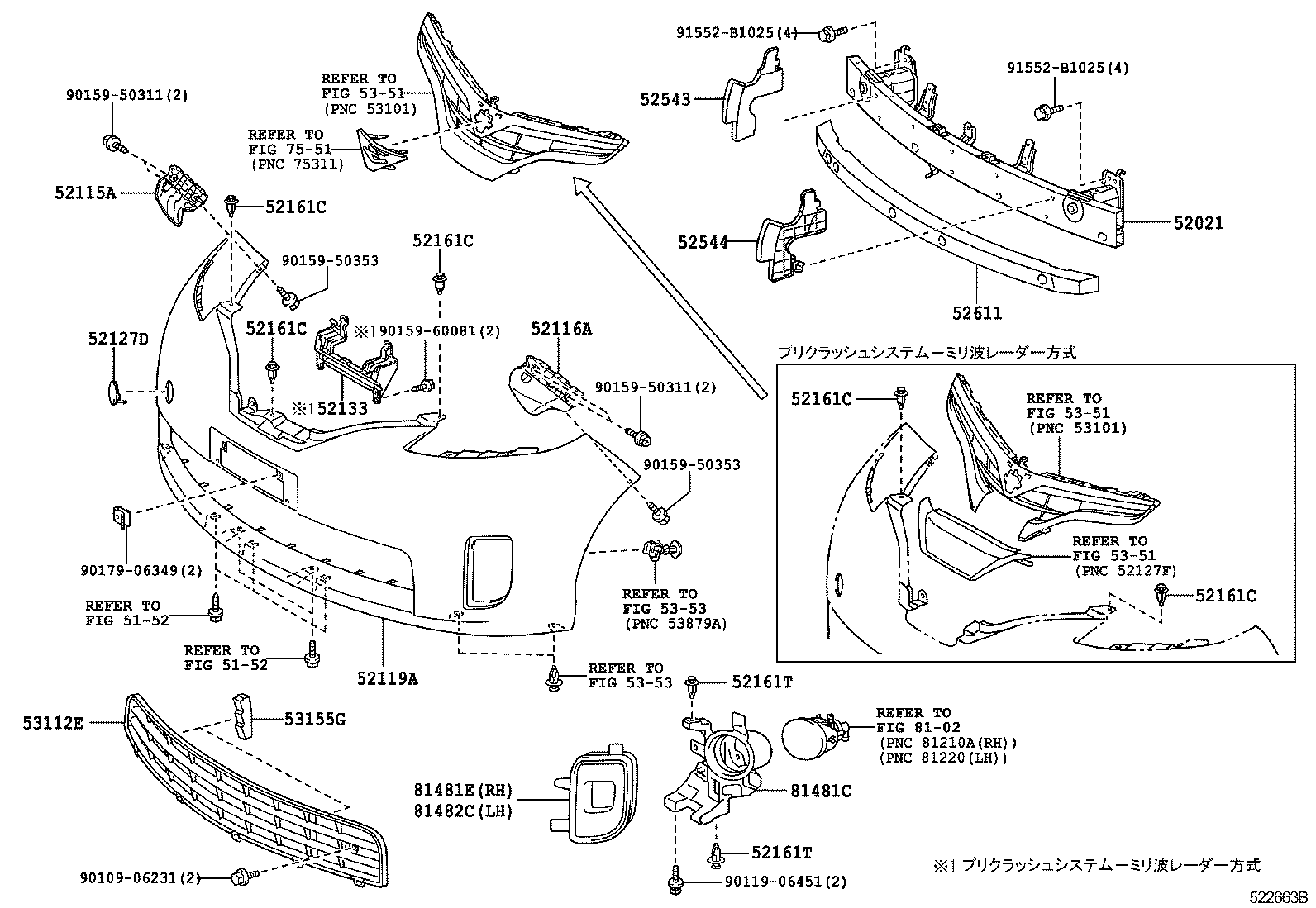

 ESTIMA HYBRID |  FRONT BUMPER BUMPER STAY ** Refer Fig ** Refer Fig 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER 52115A - SUPPORT, FRONT BUMPER SIDE, RH 52116A - SUPPORT, FRONT BUMPER SIDE, LH 52119A - COVER, FRONT BUMPER 52127D - COVER, FRONT BUMPER HOLE, RH 52133 - REINFORCEMENT, FRONT BUMPER 52161C - PIECE, FRONT BUMPER 52161C - PIECE, FRONT BUMPER 52161C - PIECE, FRONT BUMPER 52161C - PIECE, FRONT BUMPER 52161C - PIECE, FRONT BUMPER 52161T - PIECE, FRONT BUMPER 52161T - PIECE, FRONT BUMPER 52543 - SEAL, FRONT BUMPER SIDE, RH 52544 - SEAL, FRONT BUMPER SIDE, LH 52611 - ABSORBER, FRONT BUMPER ENERGY 53112E - GRILLE, RADIATOR, LOWER NO.1 53155G - SEAL, RADIATOR GRILLE ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 81481C - BRACKET, FOG LAMP 81481E - COVER, FOG LAMP, RH 81482C - COVER, FOG LAMP, LH  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
