TOYOTA ESTIMA HYBRID AHR20W-GFXSB / ELECTRICAL / INTERIOR LAMP

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

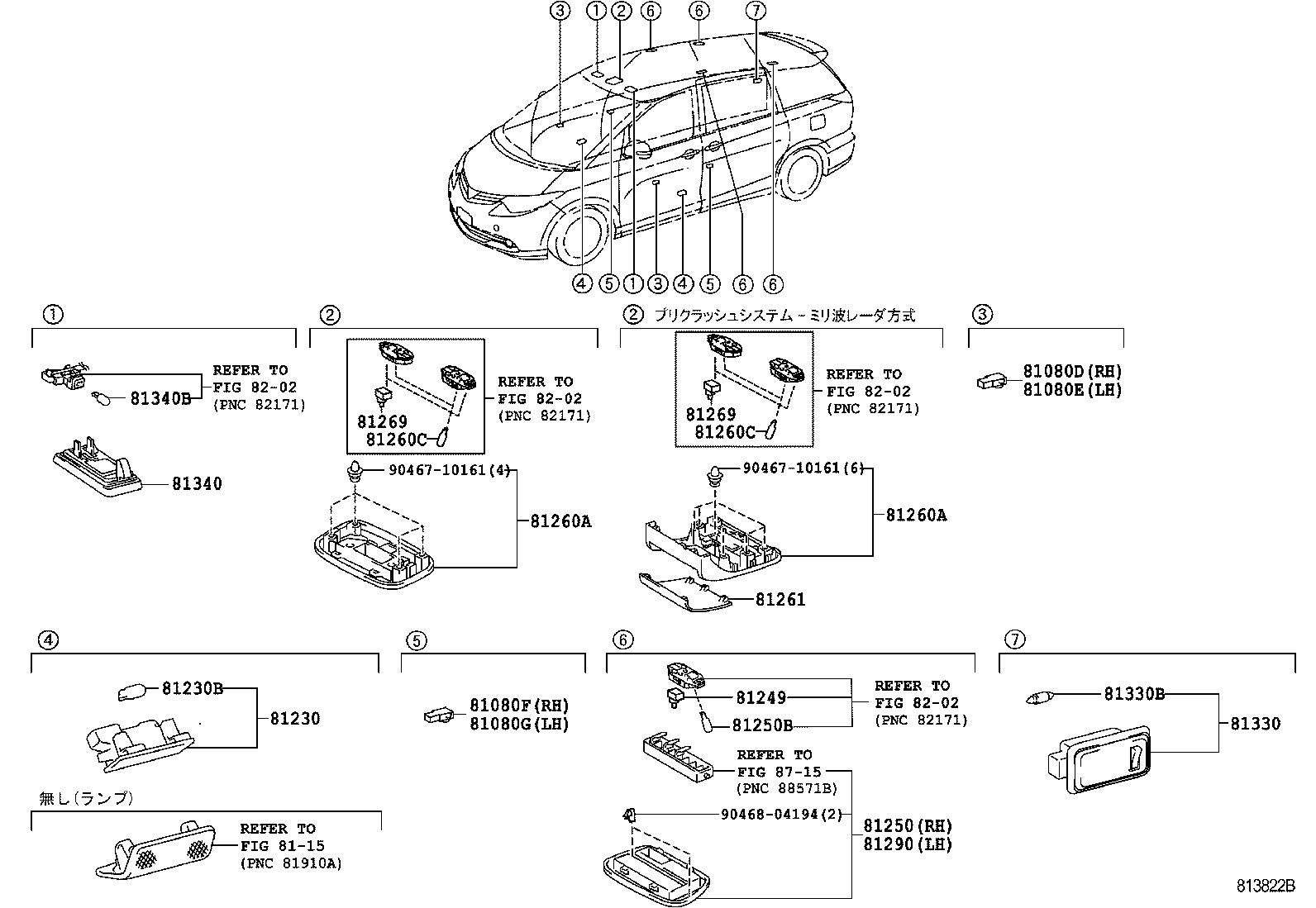

INTERIOR LAMP

(0606- )

 ESTIMA HYBRID |  INTERIOR LAMP 81080D - LAMP ASSY, FRONT DOOR INSIDE HANDLE ILLUMINATION, RH 81080E - LAMP ASSY, FRONT DOOR INSIDE HANDLE ILLUMINATION, LH 81080F - LAMP ASSY, REAR DOOR INSIDE HANDLE ILLUMINATION, RH 81080G - LAMP ASSY, REAR DOOR INSIDE HANDLE ILLUMINATION, LH ** Refer Fig 81230 - LAMP ASSY, COURTESY 81230B - BULB(FOR COURTESY LAMP) 81249 - SWITCH, ROOM LAMP 81250 - LAMP ASSY, ROOM, NO.2 81250B - BULB, ROOM LAMP, NO.2 81260A - LAMP ASSY, MAP 81260A - LAMP ASSY, MAP 81260C - BULB(FOR MAP LAMP) 81260C - BULB(FOR MAP LAMP) 81261 - LENS AND COVER, MAP LAMP 81269 - SWITCH, MAP LAMP 81269 - SWITCH, MAP LAMP 81290 - LAMP ASSY, ROOM, NO.3 81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1 81330B - BULB, LUGGAGE COMPARTMENT LAMP 81340 - LAMP ASSY, VANITY 81340B - BULB (FOR VANITY LAMP) ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part
