TOYOTA FJ CRUISER GSJ15W-GKASK / BODY / FRAME

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FRAME

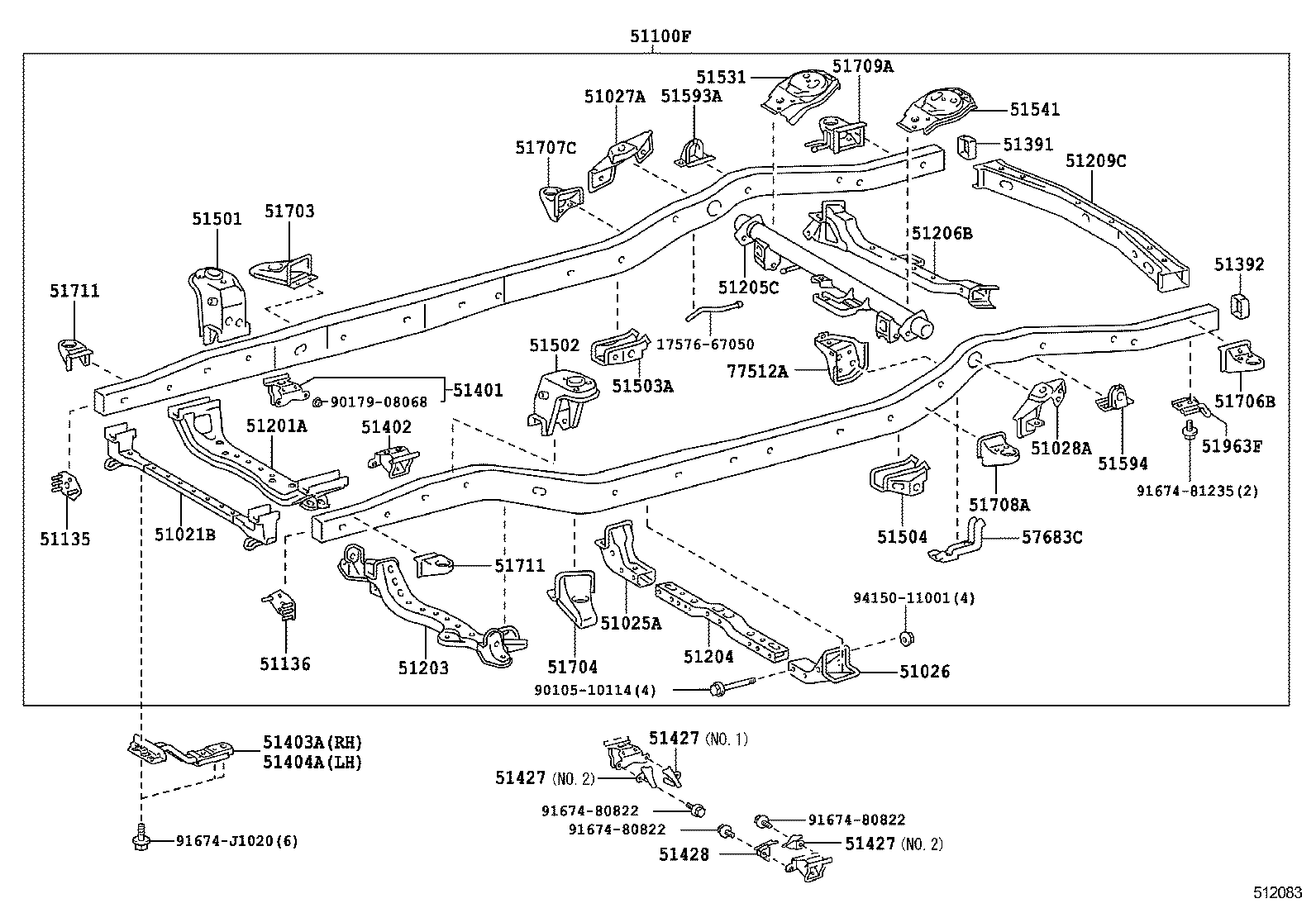

ﾌﾚｰﾑ ILLUST NO. 1 OF 2(1011- )

FJ CRUISER | FRAME ** Std Part 51021B - CROSSMEMBER SUB-ASSY, FRAME AUXILIARY 51025A - BRACKET SUB-ASSY, FRAME NO.3 CROSS MEMBER, RH 51026 - BRACKET SUB-ASSY, FRAME NO.3 CROSS MEMBER, LH 51027A - BRACKET SUB-ASSY, FRAME NO.4 CROSSMEMBER, RH 51028A - BRACKET SUB-ASSY, FRAME NO.4 CROSSMEMBER, LH 51100F - FRAME SUB-ASSY 51135 - PLATE, FRAME SIDE RAIL, RH 51136 - PLATE, FRAME SIDE RAIL, LH 51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT 51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2 51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3 51205C - CROSSMEMBER SUB-ASSY, FRAME, NO.5 51206B - CROSSMEMBER SUB-ASSY, FRAME, NO.6 51209C - CROSSMEMBER SUB-ASSY, FRAME, REAR 51391 - GUSSET, FRAME REAR CROSSMEMBER, RH 51392 - GUSSET, FRAME REAR CROSSMEMBER, LH 51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH 51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH 51403A - BRACE SUB-ASSY, FRONT SUSPENTION MEMBER, RH 51404A - BRACE SUB-ASSY, FRONT SUSPENTION MEMBER, LH 51427 - REINFORCEMENT, ENGINE FRONT MOUNTING, RH 51427 - REINFORCEMENT, ENGINE FRONT MOUNTING, RH 51427 - REINFORCEMENT, ENGINE FRONT MOUNTING, RH 51428 - REINFORCE, ENGINE MOUNTING, REAR 51501 - SUPPORT SUB-ASSY, SUSPENSION ARM, RH 51502 - SUPPORT SUB-ASSY, SUSPENSION ARM, LH 51503A - BRACKET SUB-ASSY, LOWER CONTROL LINK SUPPORT, RH 51504 - BRACKET SUB-ASSY, LOWER CONTROL LINK SUPPORT, LH 51531 - BRACKET, REAR SPRING SUPPORT, RH 51541 - BRACKET, REAR SPRING SUPPORT, LH 51593A - BRACKET, REAR SPRING BUMPER, RH 51594 - BRACKET, REAR SPRING BUMPER, LH 51703 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH 51704 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH 51706B - BRACKET SUB-ASSY, CAB MOUNTING, NO.3 LH 51707C - BRACKET SUB-ASSY, CAB MOUNTING, NO.4 RH 51708A - BRACKET SUB-ASSY, CAB MOUNTING, NO.4 LH 51709A - BRACKET SUB-ASSY, BODY REAR END MOUNTING 51711 - BRACKET, FRONT BODY SUPPORT OR MOUNTING, RH 51711 - BRACKET, FRONT BODY SUPPORT OR MOUNTING, RH 51963F - HOOK, TRANSPORT 57683C - BRACKET, FUEL TANK MOUNTING 77512A - BRACKET, FUEL TANK, REAR ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
