TOYOTA HARRIER AVU65W-ANXGB / BODY / SUSPENSION CROSSMEMBER UNDER COVER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SUSPENSION CROSSMEMBER UNDER COVER

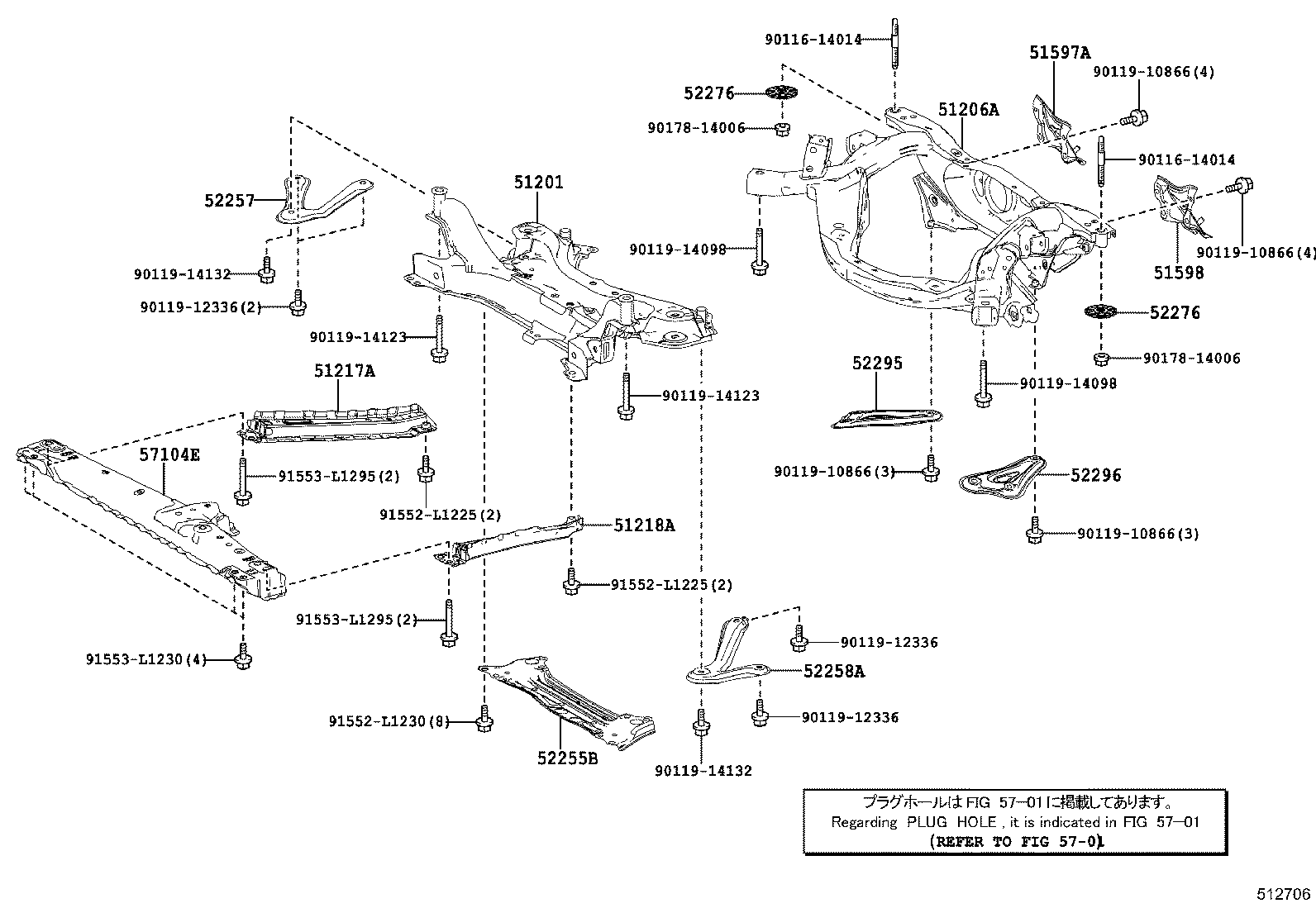

ｻｽﾍﾟﾝｼｮﾝｸﾛｽﾒﾝﾊﾞ ILLUST NO. 1 OF 2(1401- )AVU65

HARRIER | SUSPENSION CROSSMEMBER UNDER COVER 51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION 51206A - MEMBER SUB-ASSY, REAR SUSPENSION 51217A - REINFORCEMENT, FRONT SUSPENSION MEMBER, RH 51218A - REINFORCEMENT, FRONT SUSPENSION MEMBER, LH 51597A - BRACKET, REAR STABILIZER SUPPORT, RH 51598 - BRACKET, REAR STABILIZER SUPPORT, LH 52255B - BRACE, FRONT SUSPENSION MEMBER 52257 - BRACE, FRONT SUSPENSION MEMBER, REAR RH 52258A - BRACE, FRONT SUSPENSION MEMBER, REAR LH 52276 - CUSHION, REAR SUSPENSION MEMBER, REAR LOWER 52276 - CUSHION, REAR SUSPENSION MEMBER, REAR LOWER 52295 - BRACE, REAR SUSPENSION MEMBER, RH 52296 - BRACE, REAR SUSPENSION MEMBER, LH ** Refer Fig 57104E - MEMBER SUB-ASSY, FRONT CROSS ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
