TOYOTA HIACE REGIUSACE TRH219W-JDPNK / BODY / REAR FLOOR PANEL REAR FLOOR MEMBER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

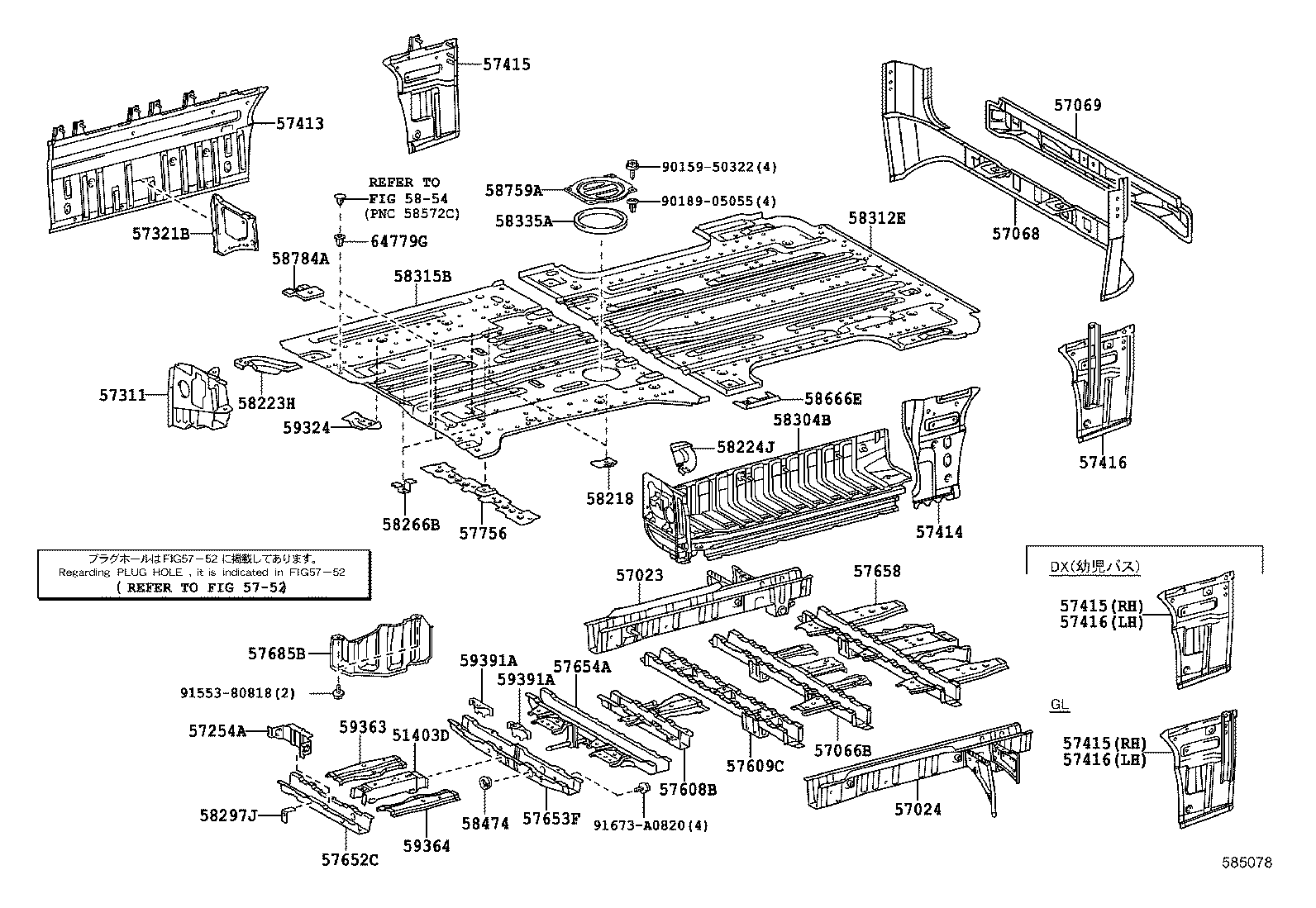

REAR FLOOR PANEL REAR FLOOR MEMBER

(1312- )TRH214,219

HIACE REGIUSACE | REAR FLOOR PANEL REAR FLOOR MEMBER 51403D - BRACKET SUB-ASSY, ENGINE REAR MOUNTING 57023 - MEMBER SUB-ASSY, REAR SIDE, RH 57024 - MEMBER SUB-ASSY, REAR SIDE, LH 57066B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.6 57068 - MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER 57069 - MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, OUTER 57254A - REINFORCEMENT, ENGINE REAR MOUNTING MEMBER 57311 - OUTRIGGER, NO.1 RH 57321B - OUTRIGGER, NO.5, RH 57413 - RAIL, FLOOR SIDE, CENTER RH 57414 - RAIL, FLOOR SIDE, CENTER LH 57415 - RAIL, FLOOR SIDE, REAR RH 57415 - RAIL, FLOOR SIDE, REAR RH 57415 - RAIL, FLOOR SIDE, REAR RH 57416 - RAIL, FLOOR SIDE, REAR LH 57416 - RAIL, FLOOR SIDE, REAR LH 57416 - RAIL, FLOOR SIDE, REAR LH ** Refer Fig 57608B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4 57609C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.5 57652C - MEMBER, REAR FLOOR CROSS, NO.1 57653F - MEMBER, REAR FLOOR CROSS, NO.2 57654A - MEMBER, REAR FLOOR CROSS, NO.3 57658 - MEMBER, REAR FLOOR CROSS, NO.7 57685B - GUARD, FUEL TANK 57756 - PLATE, REAR FLOOR NO.2 CROSSMEMBER 58218 - PLATE, SEAT FLOOR PANEL 58223H - REINFORCEMENT, FLOOR PANEL SIDE, RH 58224J - REINFORCEMENT, FLOOR PANEL SIDE, LH 58266B - BRACKET, FUEL TUBE CLAMP 58297J - RETAINER, FLOOR CLAMP 58304B - STEP SUB-ASSY, REAR FLOOR, LH 58312E - PANEL, REAR FLOOR, REAR 58315B - PANEL, REAR FLOOR, FRONT 58335A - SEAL, REAR FLOOR SIDE SERVICE HOLE COVER 58474 - COVER, INSPECTION HOLE ** Refer Fig 58666E - PLATE, REAR FLOOR, CENTER LOWER NO.2 LH 58759A - COVER, FUEL TANK INSPECTION HOLE 58784A - SUPPORT, TOOL BAG 59324 - BASE, SUB FLOOR LEG, NO.2 59363 - RETAINER, REAR SEAT, NO.1 C 59364 - RETAINER, REAR SEAT, NO.1 D 59391A - RETAINER, REAR FLOOR, NO.1 59391A - RETAINER, REAR FLOOR, NO.1 64779G - STOPPER, SPARE WHEEL COVER ** Std Part ** Std Part ** Std Part ** Std Part
