TOYOTA VITZ NSP130-AHXNB / TOOL-ENGINE-FUEL / AIR CLEANER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

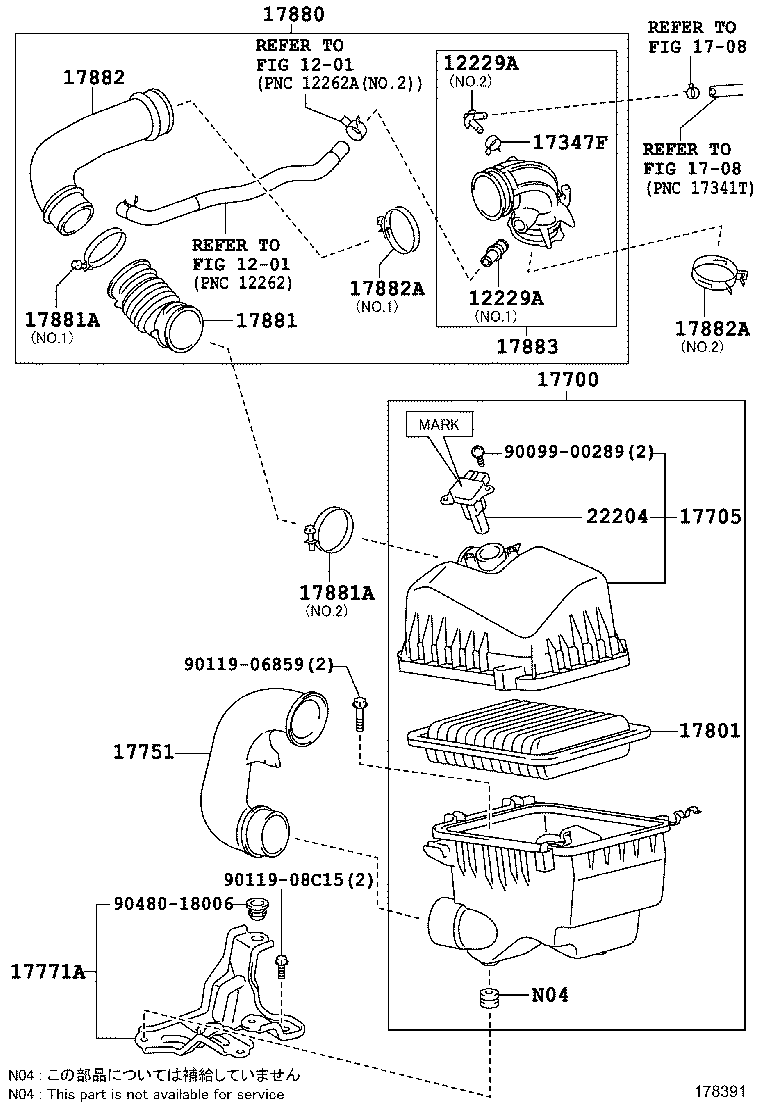

AIR CLEANER

(1404- )1NRFKE

 VITZ |  AIR CLEANER ** Refer Fig ** Refer Fig 12229A - PIPE, VENTILATION 12229A - PIPE, VENTILATION ** Refer Fig ** Refer Fig 17347F - CLAMP OR CLIP(FOR AIR HOSE) 17700 - CLEANER ASSY, AIR 17705 - CAP SUB-ASSY, AIR CLEANER 17751 - INLET, AIR CLEANER, NO.1 17771A - BRACKET, AIR CLEANER 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER 17880 - HOSE ASSY, AIR CLEANER 17881 - HOSE, AIR CLEANER, NO.1 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) 17882 - HOSE, AIR CLEANER, NO.2 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) 17883 - HOSE, AIR CLEANER, NO.3 22204 - METER SUB-ASSY, INTAKE AIR FLOW  ** Std Part  ** Std Part  ** Std Part  ** Std Part
