TOYOTA LAND CRUISER 62 FJ62LG-PNEA / BODY / FRAME

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

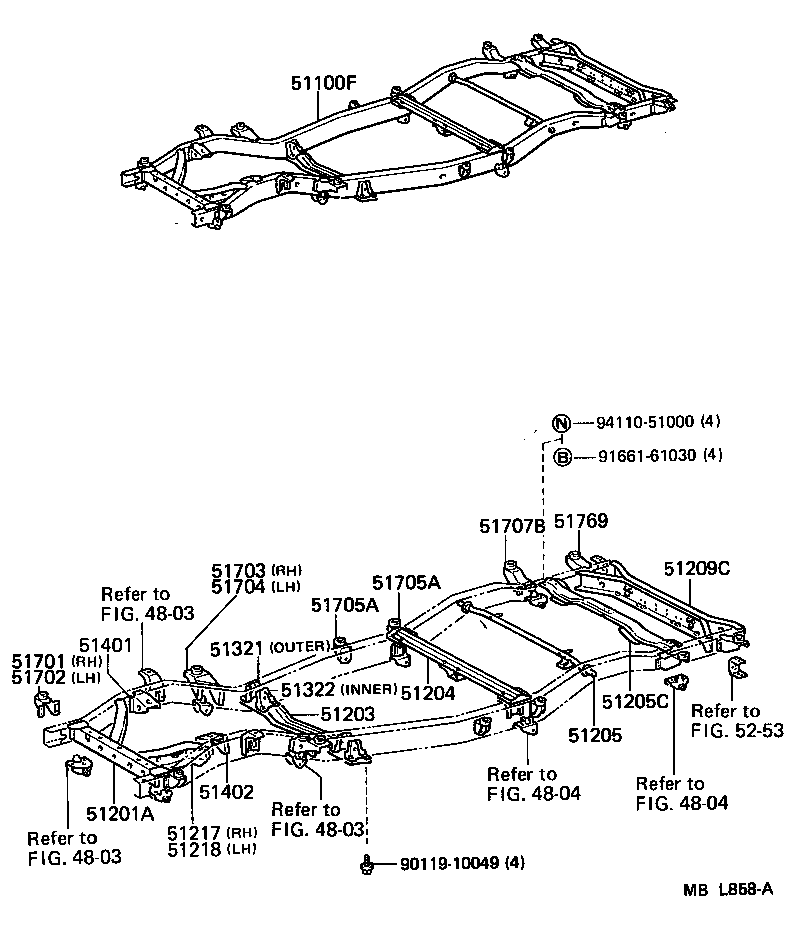

FRAME

(8708- )

LAND CRUISER 62 | FRAME ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 51100F - FRAME SUB-ASSY 51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT 51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2 51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3 51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4 51205C - CROSSMEMBER SUB-ASSY, FRAME, NO.5 51209C - CROSSMEMBER SUB-ASSY, FRAME, REAR 51217 - REINFORCEMENT, FRONT CROSSMEMBER, LOWER RH 51218 - REINFORCEMENT, FRONT CROSSMEMBER, LOWER LH 51321 - GUSSET, CROSSMEMBER, NO.2 RH 51322 - GUSSET, CROSSMEMBER, NO.2 LH 51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH 51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH 51701 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH 51702 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH 51703 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH 51704 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH 51705A - BRACKET SUB-ASSY, CAB MOUNTING, NO.3 51705A - BRACKET SUB-ASSY, CAB MOUNTING, NO.3 51707B - BRACKET SUB-ASSY, CAB MOUNTING, NO.4 51769 - BRACKET, BODY REAR END MOUNTING ** Refer Fig ** Std Part ** Std Part ** Std Part
