TOYOTA T100 VCK20L-TRSREK / POWERTRAIN-CHASSIS / CONTROL SHAFT CROSSSHAFT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

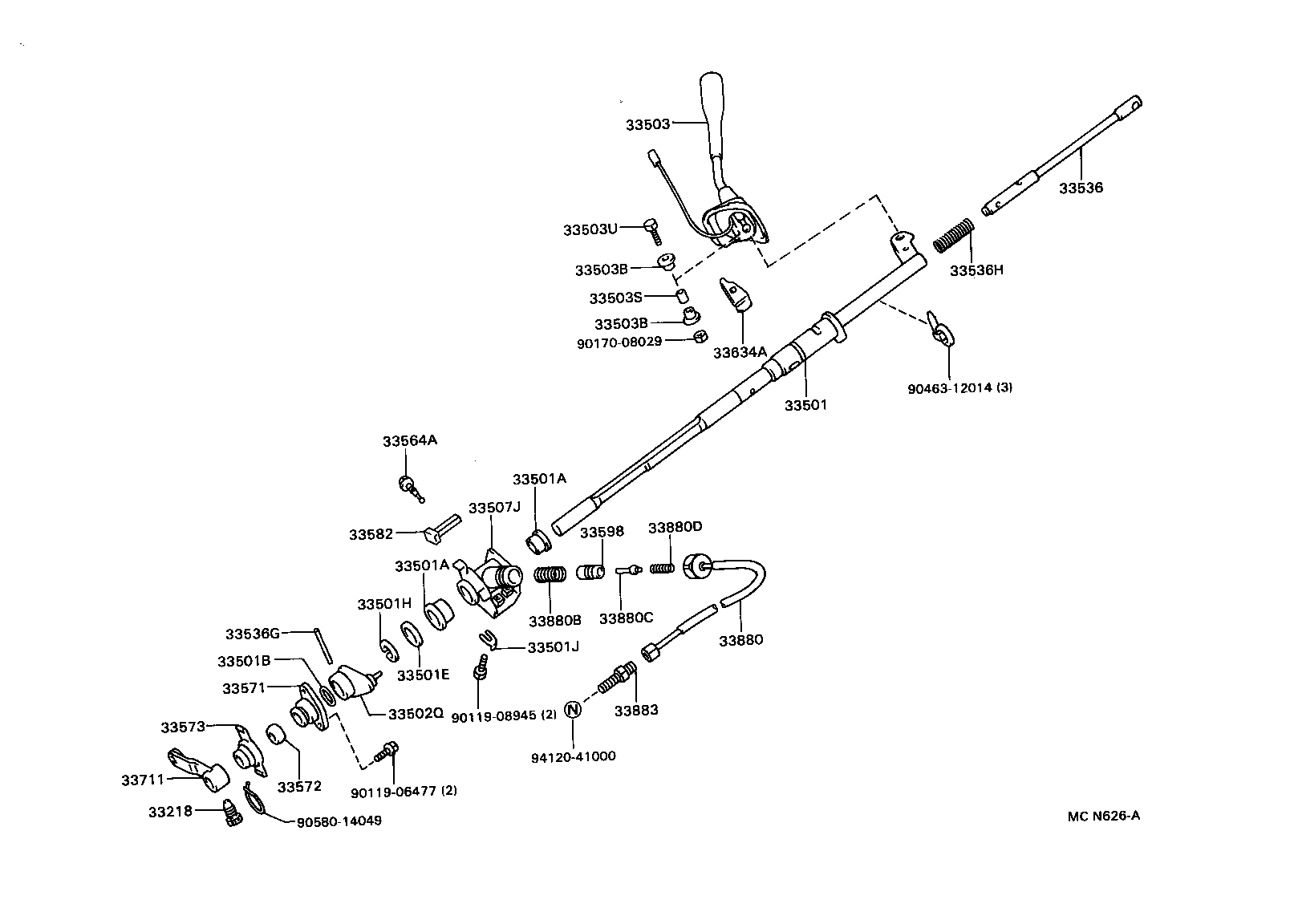

CONTROL SHAFT CROSSSHAFT

ILLUST NO. 1 OF 2(9208- )ATM

 T100 |  CONTROL SHAFT CROSSSHAFT 33218 - BOLT, SHIFT LEVER LOCK 33501 - SHAFT SUB-ASSY, CONTROL (FOR COLUMN SHIFT) 33501A - BUSH (FOR COLUMN SHIFT CONTROL SHAFT) 33501A - BUSH (FOR COLUMN SHIFT CONTROL SHAFT) 33501B - RING, O (FOR COLUMN SHIFT CONTROL SHAFT LOWER) 33501E - WASHER, PLATE (FOR COLUMN SHIFT CONTROL SHAFT) 33501H - RING, SNAP (FOR COLUMN SHIFT CONTROL SHAFT) 33501J - SHIM (FOR COLUMN SHIFT CONTROL SHAFT) 33502Q - PLATE SUB-ASSY, SHIFT LEVER 33503 - LEVER SUB-ASSY, SHIFT(FOR COLUMN SHIFT) 33503B - BUSH(FOR SHIFT LEVER SUB-ASSY) 33503B - BUSH(FOR SHIFT LEVER SUB-ASSY) 33503S - COLLAR(FOR SHIFT LEVER) 33503U - BOLT, HEXAGON(FOR COLUMN SHIFT LEVER) 33507J - SUPPORT SUB-ASSY, CONTROL SHAFT (FOR COLUMN SHIFT) 33536 - SHAFT, CONTROL SELECT LEVER (FOR COLUMN SHIFT) 33536G - PIN, SLOTTED SPRING (FOR COLUMN CONTROL SELECT LEVER) 33536H - SPRING, COMPRESSION (FOR COLUMN CONTROL SELECT LEVER) 33564A - LINK, SHIFT LOCK RELEASE (FOR COLUMN SHIFT) 33571 - BRACKET, CONTROL SHAFT, LOWER (FOR COLUMN SHIFT) 33572 - BUSH, CONTROL SHAFT LOWER (FOR COLUMN SHIFT) 33573 - COVER, CONTROL SHAFT DUST, LOWER 33582 - STOPPER, SHIFT LOCK PLATE (FOR COLUMN SHIFT) 33598 - HOLDER, SELECT SHATT LOCK PIN (FOR COLUMN SHIFT) 33634A - PROTECTOR, WIRE 33711 - LEVER, CONTROL SHAFT (FOR COLUMN SHIFT) 33880 - CABLE ASSY, PARKING LOCK (FOR COLUMN SHIFT) 33880B - SPRING, COMPRESSION (FOR PARKING LOCK CABLE) 33880C - PIN (FOR SHIFT LOCK) 33880D - SPRING, COMPRESSION (FOR SHIFT LOCK PIN) 33883 - HOLDER, CABLE END ROD  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
