TOYOTA T100 VCK20L-TRSREK / POWERTRAIN-CHASSIS / POWER STEERING TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

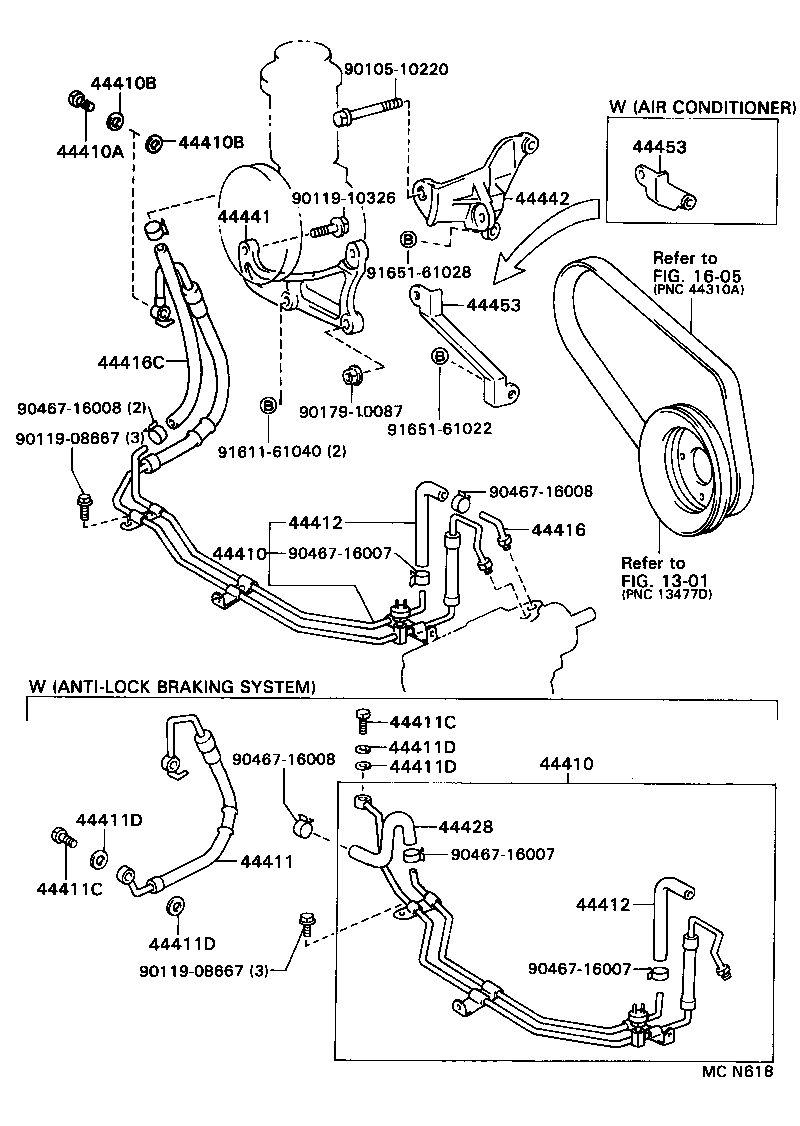

POWER STEERING TUBE

(9208-9408)VCK20

 T100 |  POWER STEERING TUBE ** Refer Fig ** Refer Fig 44410 - TUBE ASSY, PRESSURE FEED 44410 - TUBE ASSY, PRESSURE FEED 44410A - BOLT, UNION(FOR PRESSURE FEED TUBE) 44410B - GASKET(FOR PRESSURE FEED TUBE) 44410B - GASKET(FOR PRESSURE FEED TUBE) 44411 - HOSE, PRESSURE FEED 44411C - BOLT, UNION(FOR PRESSURE FEED HOSE) 44411C - BOLT, UNION(FOR PRESSURE FEED HOSE) 44411D - GASKET(FOR PRESSURE FEED HOSE) 44411D - GASKET(FOR PRESSURE FEED HOSE) 44411D - GASKET(FOR PRESSURE FEED HOSE) 44411D - GASKET(FOR PRESSURE FEED HOSE) 44412 - HOSE, RETURN 44412 - HOSE, RETURN 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) 44416C - HOSE(FOR RETURN TUBE TO RESERVIOR) 44428 - HOSE, RETURN, NO.2 44441 - BRACKET, PUMP, FRONT 44442 - BRACKET, PUMP, REAR 44453 - STAY, PUMP, FRONT 44453 - STAY, PUMP, FRONT  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
