TOYOTA SEQUOIA UCK35L-GKBLKA / BODY / SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

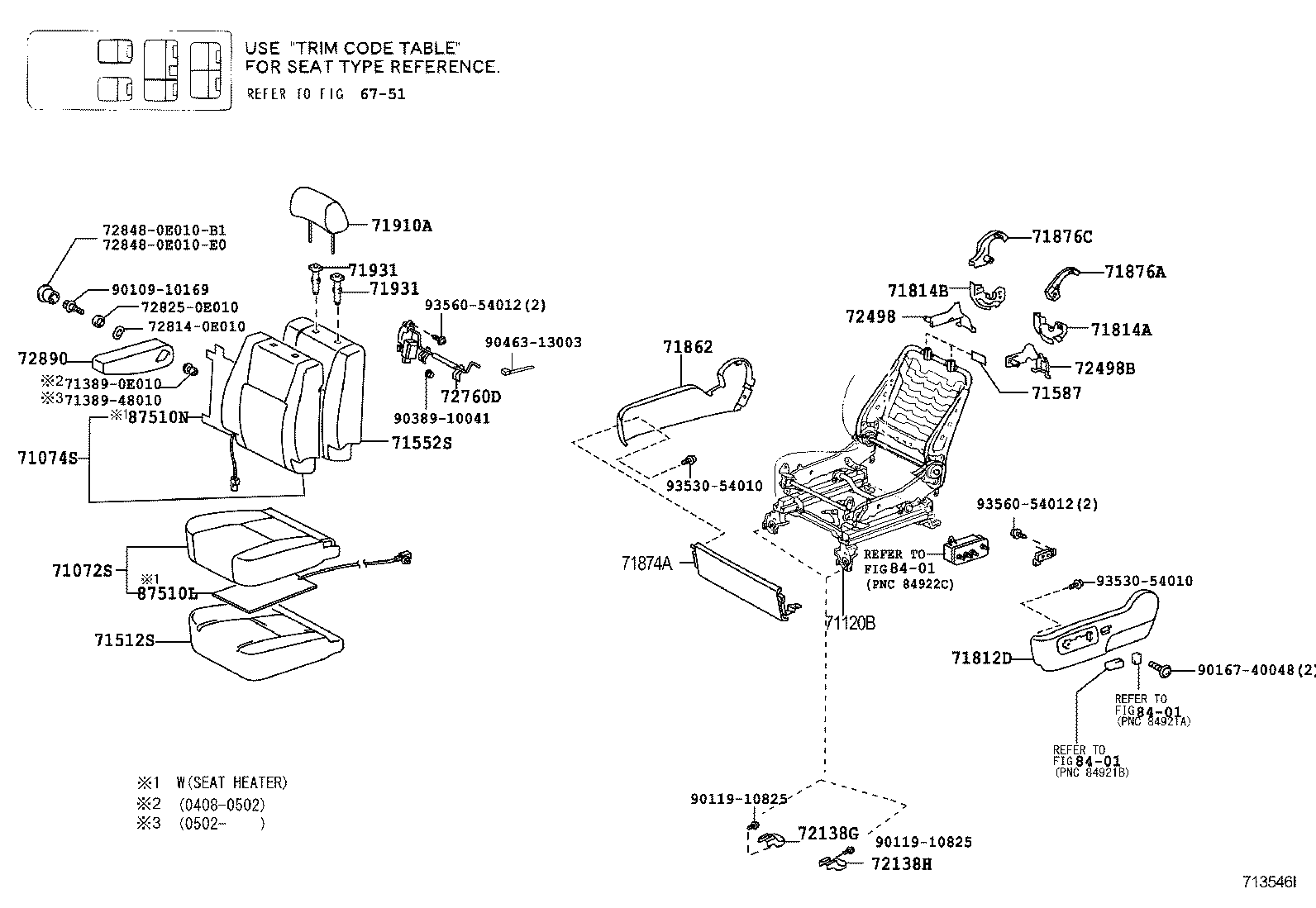

SEAT SEAT TRACK

DRIVER SEAT(POWER) ILLUST NO. 1 OF 6(0408- )

SEQUOIA | SEAT SEAT TRACK ** Refer Fig 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) 71120B - FRAME ASSY, FRONT SEAT W/ADJUSTER, LH ** Std Part ** Std Part 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) 71587 - PROTECTOR, FRONT SEAT BACK EDGE 71812D - SHIELD, FRONT SEAT CUSHION, LH 71814A - SHIELD, FRONT SEAT BACK, LH 71814B - SHIELD, FRONT SEAT BACK, LH 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH 71874A - SHIELD, FRONT SEAT CUSHION, LOWER LH 71876A - COVER, RECLINING ADJUSTER INSIDE, LH 71876C - COVER, RECLINING ADJUSTER INSIDE, LH 71910A - HEADREST ASSY, FRONT SEAT 71931 - SUPPORT, FRONT SEAT HEADREST 71931 - SUPPORT, FRONT SEAT HEADREST 72138G - COVER, FRONT SEAT TRACK, LH FRONT INNER 72138H - COVER, FRONT SEAT TRACK, LH REAR INNER 72498 - COVER, VERTICAL ADJUSTER BRACKET 72498B - COVER, VERTICAL ADJUSTER BRACKET, OUTER 72760D - ADJUSTER ASSY, LUMBAR SUPPORT, LH ** Std Part ** Std Part ** Std Part ** Std Part 72890 - ARMREST ASSY, SEAT, C LH ** Refer Fig ** Refer Fig ** Refer Fig 87510L - HEATER ASSY, FRONT SEAT CUSHION, LH 87510N - HEATER ASSY, FRONT SEAT BACK, LH ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
