TOYOTA HIACE TRH213R-KDPNK / BODY / INSIDE TRIM BOARD

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

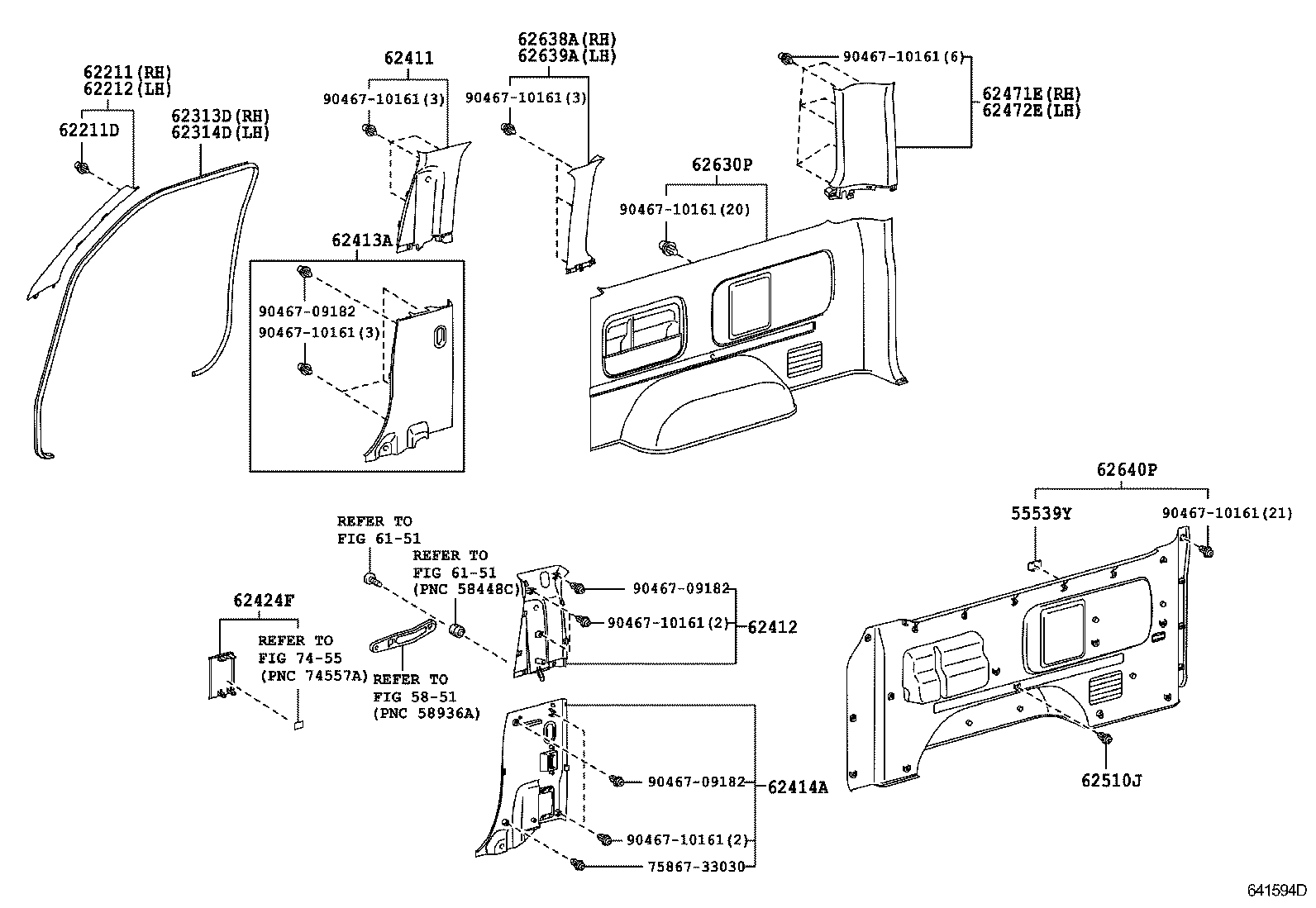

INSIDE TRIM BOARD

(0501- )KDH212,TRH213..4FC..GL

 HIACE |  INSIDE TRIM BOARD 55539Y - COVER, SPARE SWITCH HOLE ** Refer Fig ** Refer Fig ** Refer Fig 62211 - GARNISH, FRONT PILLAR, RH 62211D - CLIP(FOR FRONT BODY PILLAR GARNISH) 62212 - GARNISH, FRONT PILLAR, LH 62313D - TRIM, FRONT DOOR OPENING, RH 62314D - TRIM, FRONT DOOR OPENING, LH 62411 - GARNISH, CENTER PILLAR, RH 62412 - GARNISH, CENTER PILLAR, LH 62413A - GARNISH, CENTER PILLAR, LOWER RH 62414A - GARNISH, CENTER PILLAR, LOWER LH 62424F - COVER, CENTER PILLAR GARNISH, LOWER LH 62471E - GARNISH, ROOF SIDE, INNER UPPER RH 62472E - GARNISH, ROOF SIDE, INNER UPPER LH 62510J - RETAINER, QUARTER TRIM 62630P - PANEL ASSY, QUARTER TRIM, REAR RH 62638A - GARNISH, QUARTER PILLAR, RH 62639A - GARNISH, QUARTER PILLAR, LH 62640P - PANEL ASSY, QUARTER TRIM, REAR LH ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
