TOYOTA SCION XB NCP31L-DHPNKA / ELECTRICAL / ELECTRONIC FUEL INJECTION SYSTEM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

ELECTRONIC FUEL INJECTION SYSTEM

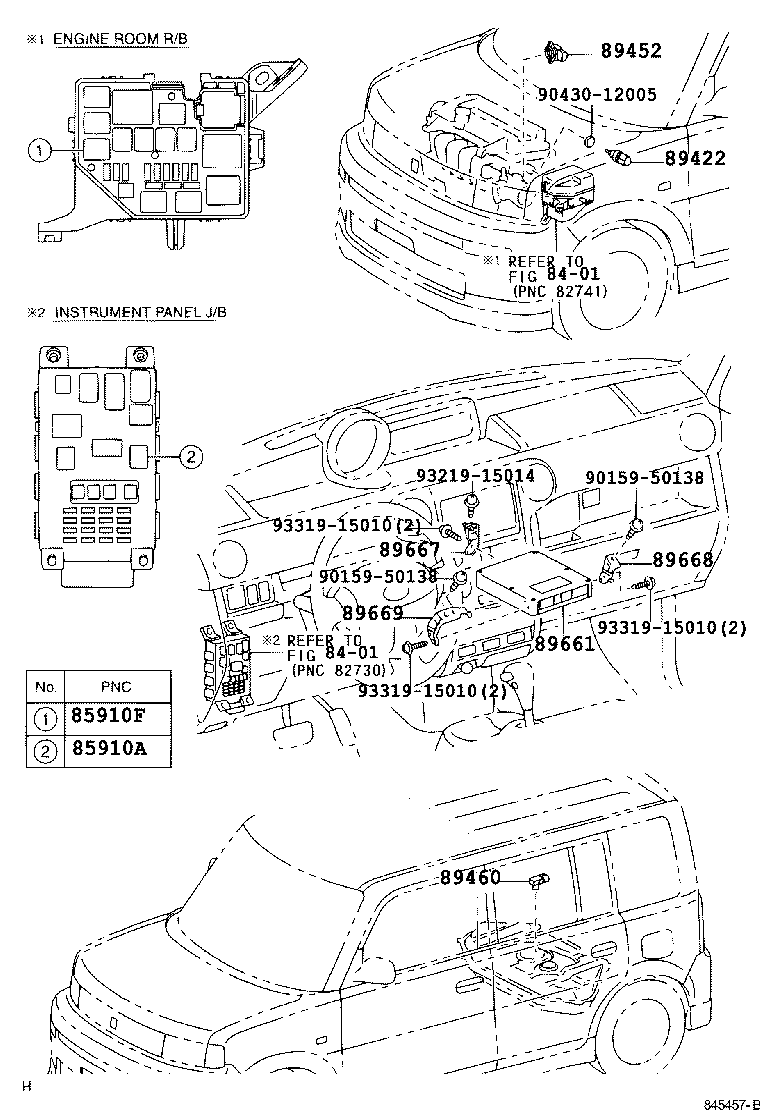

ILLUST NO. 1 OF 2(0304-0507)

SCION XB | ELECTRONIC FUEL INJECTION SYSTEM ** Refer Fig ** Refer Fig 85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI) 85910F - RELAY, COMPUTER (FOR EFI) 89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.) 89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.) 89460 - SENSOR ASSY, VAPOR PRESSURE 89661 - COMPUTER, ENGINE CONTROL 89667 - BRACKET, ENGINE CONTROL COMPUTER 89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2 89669 - BRACKET, ENGINE CONTROL COMPUTER, NO.3 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
