TOYOTA TUNDRA GSK30L-TRBDKK / BODY / SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SEAT SEAT TRACK

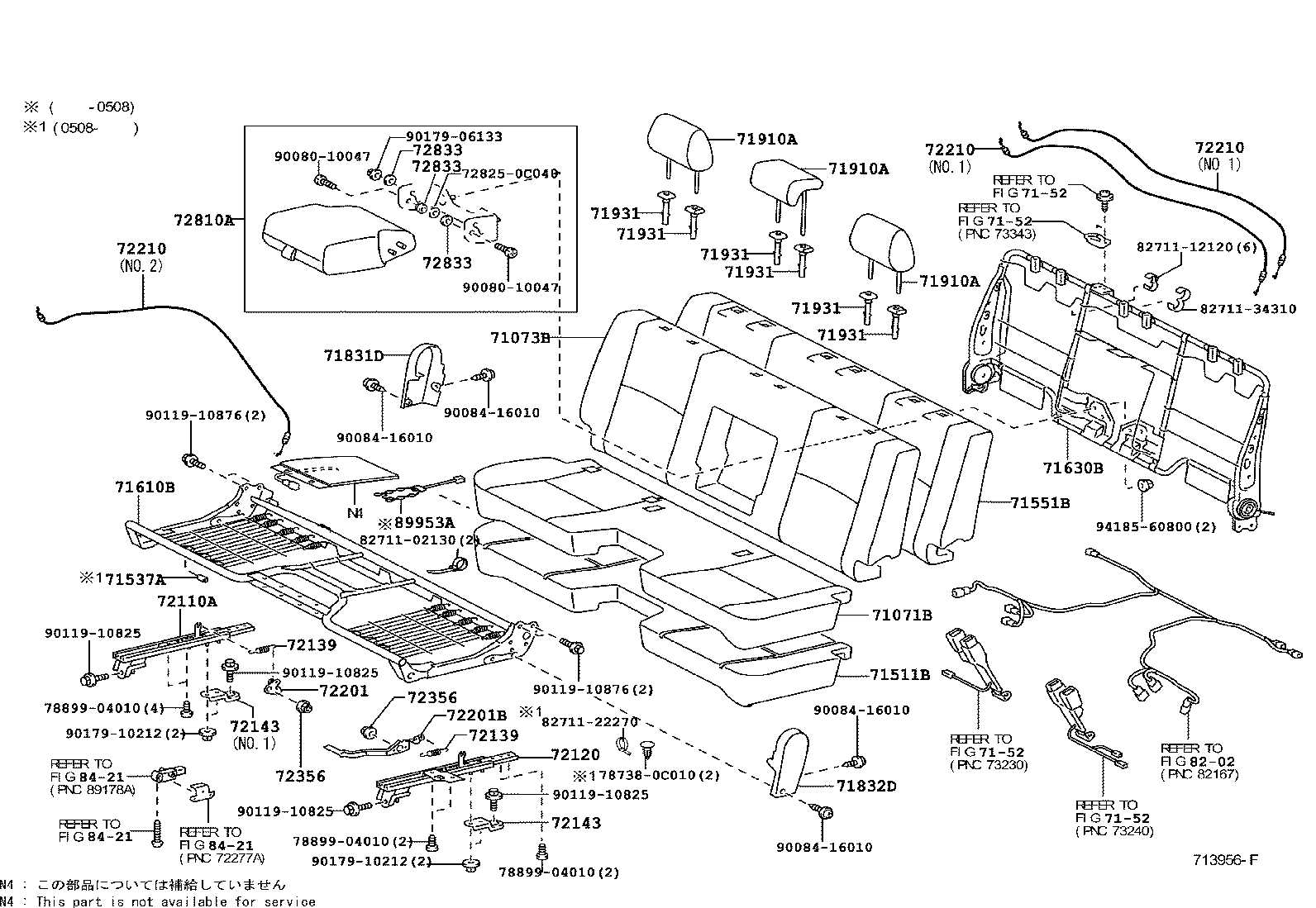

FRONT BENCH SEAT ILLUST NO. 1 OF 2(0408- )DLX

TUNDRA | SEAT SEAT TRACK 71071B - COVER, FRONT SEAT CUSHION(FOR BENCH TYPE) 71073B - COVER, FRONT SEAT BACK(FOR BENCH TYPE) 71511B - PAD, FRONT SEAT CUSHION(FOR BENCH TYPE) ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 71537A - PROTECTOR, FRONT SEAT CUSHION 71551B - PAD, FRONT SEAT BACK(FOR BENCH TYPE) 71610B - SPRING ASSY, FRONT SEAT CUSHION(FOR BENCH TYPE) 71630B - SPRING ASSY, FRONT SEAT BACK(FOR BENCH TYPE) 71831D - COVER, FRONT SEAT HINGE, RH 71832D - COVER, FRONT SEAT HINGE, LH 71910A - HEADREST ASSY, FRONT SEAT 71910A - HEADREST ASSY, FRONT SEAT 71910A - HEADREST ASSY, FRONT SEAT 71931 - SUPPORT, FRONT SEAT HEADREST 71931 - SUPPORT, FRONT SEAT HEADREST 71931 - SUPPORT, FRONT SEAT HEADREST 71931 - SUPPORT, FRONT SEAT HEADREST 71931 - SUPPORT, FRONT SEAT HEADREST 71931 - SUPPORT, FRONT SEAT HEADREST 72110A - TRACK ASSY, FRONT SEAT, OUTER RH 72120 - TRACK ASSY, FRONT SEAT, OUTER LH 72139 - SPRING, SEAT TRACK COVER 72139 - SPRING, SEAT TRACK COVER 72143 - BRACKET, FRONT SEAT TRACK, LOWER REAR RH(FOR RH SEAT) 72143 - BRACKET, FRONT SEAT TRACK, LOWER REAR RH(FOR RH SEAT) 72201 - HANDLE SUB-ASSY, SEAT TRACK 72201B - HANDLE SUB-ASSY, SEAT TRACK LH 72210 - CABLE ASSY, SEAT TRACK CONTROL 72210 - CABLE ASSY, SEAT TRACK CONTROL 72210 - CABLE ASSY, SEAT TRACK CONTROL 72356 - NUT, SIDE SUPPORT, RH 72356 - NUT, SIDE SUPPORT, RH 72810A - ARMREST ASSY, SEAT, RH ** Std Part 72833 - PLATE, SEAT CENTER ARMREST, INNER RH 72833 - PLATE, SEAT CENTER ARMREST, INNER RH 72833 - PLATE, SEAT CENTER ARMREST, INNER RH ** Std Part ** Std Part ** Std Part ** Std Part ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Refer Fig ** Refer Fig ** Refer Fig 89953A - SENSOR, BELT WARNING OCCUPANT DETECTION ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
