TOYOTA YARIS FRP SCP12R-CGMRKW / BODY / FRONT SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

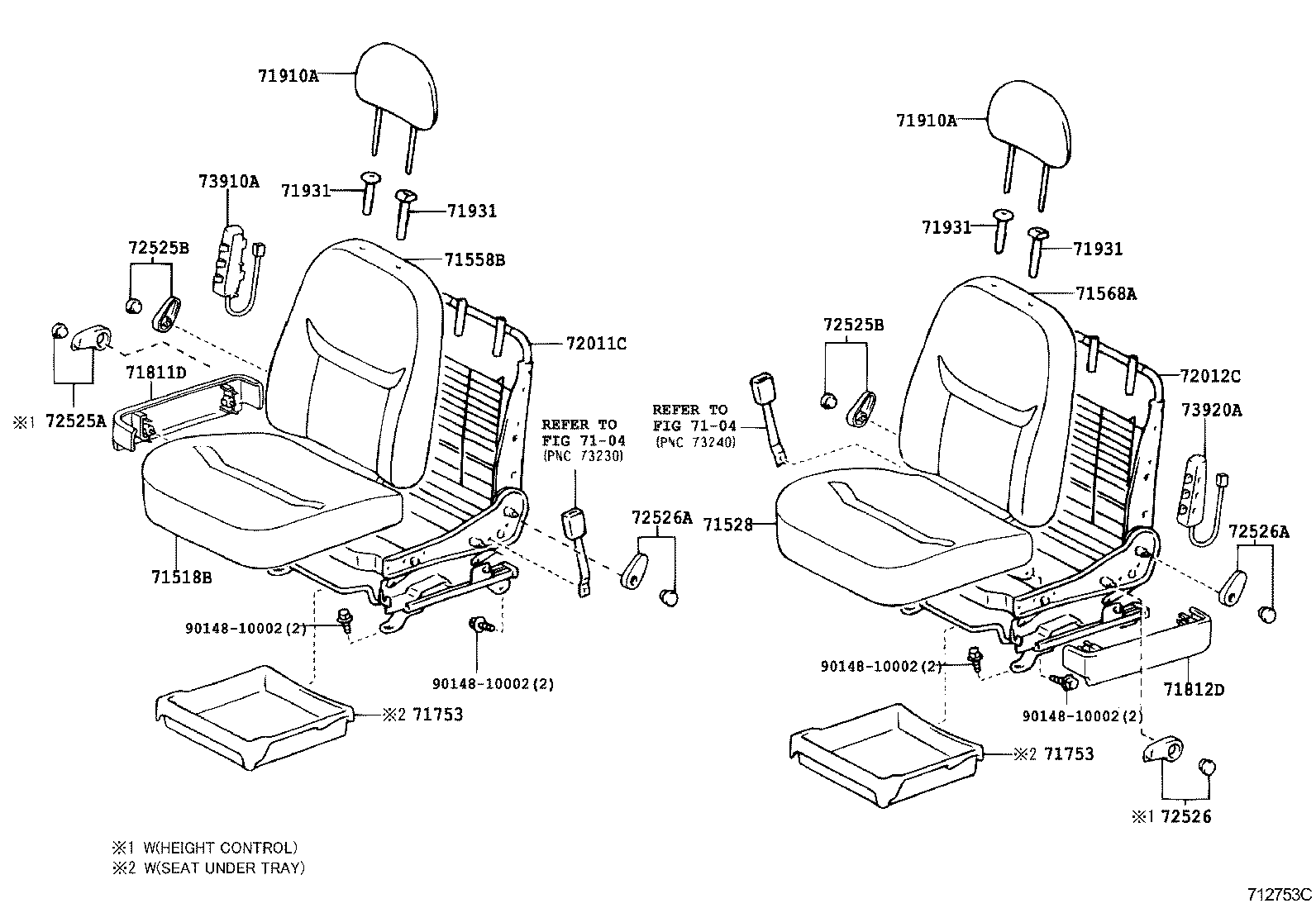

FRONT SEAT SEAT TRACK

(0302-0511)FRP..3D

 YARIS FRP |  FRONT SEAT SEAT TRACK ** Refer Fig ** Refer Fig 71518B - PAD, FRONT SEAT CUSHION W/COVER, RH 71528 - PAD, FRONT SEAT CUSHION W/COVER, LH 71558B - PAD, FRONT SEAT BACK W/COVER, RH 71568A - PAD, FRONT SEAT BACK W/COVER, LH 71753 - TRAY, FRONT SEAT UNDER 71753 - TRAY, FRONT SEAT UNDER 71811D - SHIELD, FRONT SEAT CUSHION, RH 71812D - SHIELD, FRONT SEAT CUSHION, LH 71910A - HEADREST ASSY, FRONT SEAT 71910A - HEADREST ASSY, FRONT SEAT 71931 - SUPPORT, FRONT SEAT HEADREST 71931 - SUPPORT, FRONT SEAT HEADREST 71931 - SUPPORT, FRONT SEAT HEADREST 71931 - SUPPORT, FRONT SEAT HEADREST 72011C - ADJUSTER SUB-ASSY, FRONT SEAT, RH 72012C - ADJUSTER SUB-ASSY, FRONT SEAT, LH 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH 72525B - HANDLE, RECLINING ADJUSTER RELEASE, RH 72525B - HANDLE, RECLINING ADJUSTER RELEASE, RH 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH 73910A - AIR BAG ASSY, FRONT SEAT, RH 73920A - AIR BAG ASSY, FRONT SEAT, LH  ** Std Part  ** Std Part  ** Std Part  ** Std Part
