TOYOTA HIGHLANDER HV MHU23L-BRXNKA / BODY / REAR SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

REAR SEAT SEAT TRACK

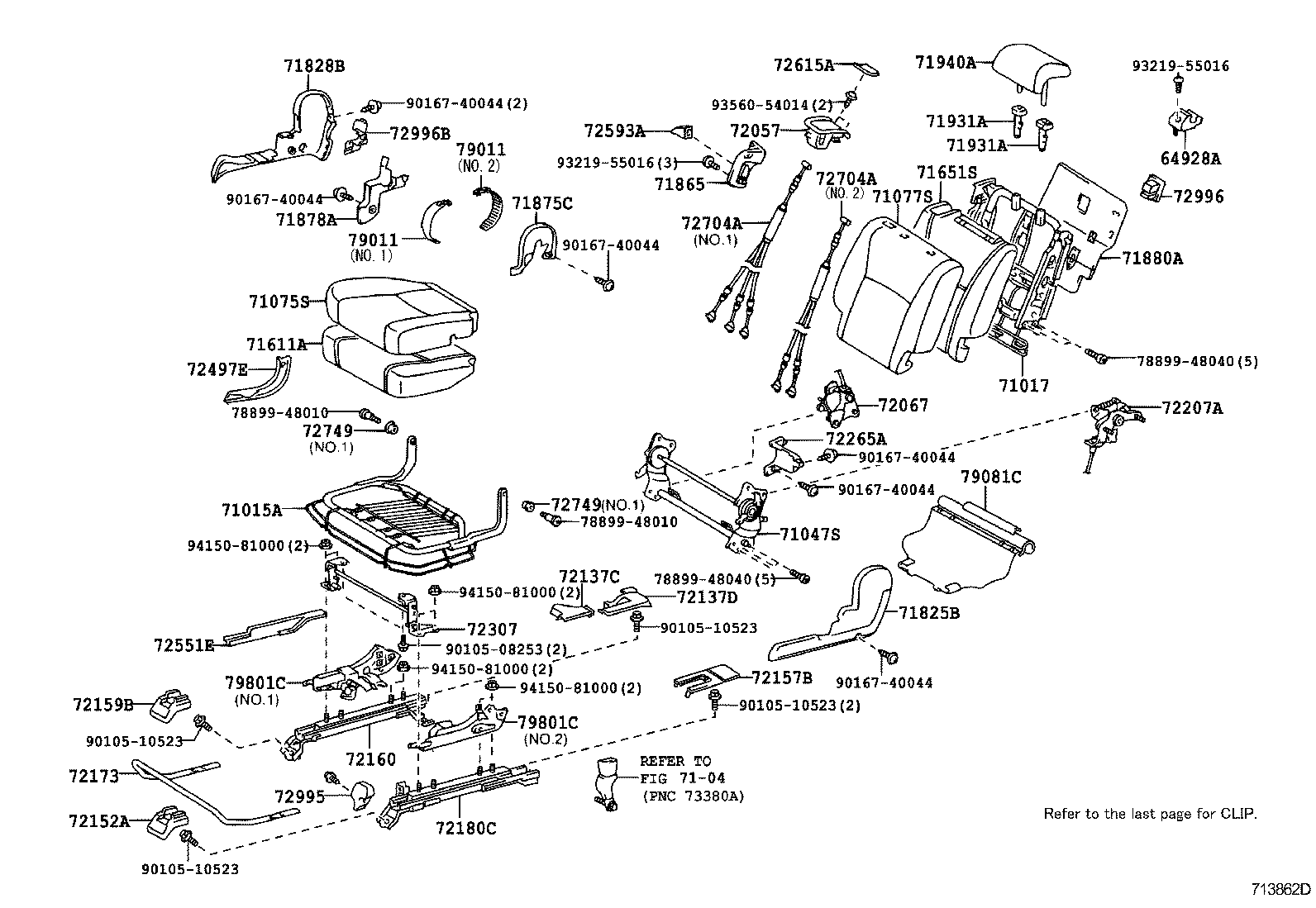

RH ILLUST NO. 1 OF 2(0503- )07S

 HIGHLANDER HV |  REAR SEAT SEAT TRACK 64928A - HOLDER, TONNEAU COVER HOOK 71015A - FRAME SUB-ASSY, REAR SEAT CUSHION, RH 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH ** Refer Fig 71047S - FRAME SUB-ASSY, REAR SEAT BACK, LOWER RH 71075S - COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE) 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) 71611A - PAD, REAR SEAT CUSHION, RH 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) 71825B - MOULDING, REAR SEAT CUSHION, RH 71828B - MOULDING, REAR SEAT CUSHION, REAR RH 71865 - BEZEL, REAR SEAT COVER, NO.1 71875C - COVER, RECLINING ADJUSTER INSIDE, RH 71878A - COVER, REAR SEAT RECLINING, INNER RH 71880A - CARPET ASSY, REAR SEAT BACK BOARD, RH 71931A - SUPPORT, REAR SEAT HEADREST 71931A - SUPPORT, REAR SEAT HEADREST 71940A - HEADREST ASSY, REAR SEAT 72057 - LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, RH 72067 - LEVER SUB-ASSY, REAR BACK LOCK CONTROL, RH 72137C - COVER, SEAT TRACK INNER, RH 72137D - COVER, REAR SEAT TRACK, RH 72152A - COVER, REAR SEAT TRACK BRACKET, INNER 72157B - COVER, REAR SEAT TRACK BRACKET, INNER RH 72159B - COVER, REAR SEAT TRACK BRACKET, OUTER 72160 - TRACK ASSY, REAR SEAT, OUTER RH 72173 - HANDLE, REAR SEAT TRACK ADJUSTING 72180C - TRACK ASSY, REAR SEAT, INNER RH 72207A - PLATE, SEAT TRACK STOP RH 72265A - COVER, SEAT TRACK UPPER RAIL, RH 72307 - LINK SUB-ASSY, RECLINING CONTROL, RH 72497E - COVER, VERTICAL ADJUSTER BRACKET, OUTER 72551E - COVER, RECLINING HINGE, RH 72593A - KNOB, REMOTE CONTROL LEVER, RH 72615A - COVER, REAR SEAT BACK LOCK STRIKER, RH 72704A - CABLE, REAR SEAT RECLINING CONTROL 72704A - CABLE, REAR SEAT RECLINING CONTROL 72749 - SPACER, REAR SEAT RECLINING 72749 - SPACER, REAR SEAT RECLINING 72995 - COVER, REAR SEAT CUSHION, RH 72996 - COVER, REAR SEAT BACK, RH 72996B - COVER, REAR SEAT BACK, INNER RH  ** Std Part  ** Std Part  ** Std Part  ** Std Part 79011 - COVER SUB-ASSY, NO.1 SEAT CUSHION, RH 79011 - COVER SUB-ASSY, NO.1 SEAT CUSHION, RH 79081C - COVER, REAR SEAT, NO.1 79801C - FRAME, FOLD SEAT CUSHION, NO.2 79801C - FRAME, FOLD SEAT CUSHION, NO.2  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
