TOYOTA AVALON GSX30L-AETPKA / BODY / REAR SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

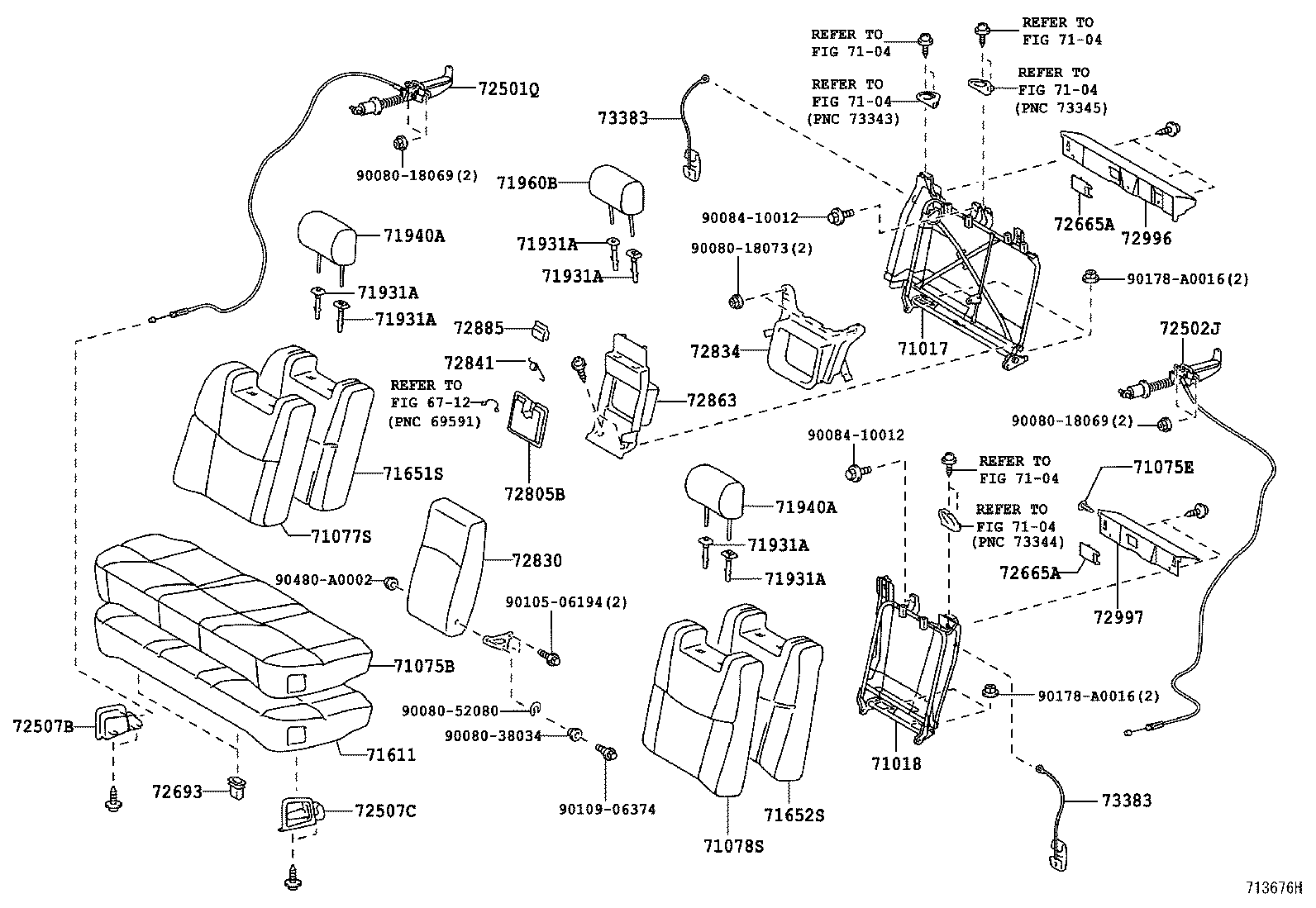

REAR SEAT SEAT TRACK

(0501- )

 AVALON |  REAR SEAT SEAT TRACK ** Refer Fig 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) 71075E - CLIP(FOR REAR SEAT) 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) 71611 - PAD, REAR SEAT CUSHION 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) 71931A - SUPPORT, REAR SEAT HEADREST 71931A - SUPPORT, REAR SEAT HEADREST 71931A - SUPPORT, REAR SEAT HEADREST 71931A - SUPPORT, REAR SEAT HEADREST 71931A - SUPPORT, REAR SEAT HEADREST 71931A - SUPPORT, REAR SEAT HEADREST 71940A - HEADREST ASSY, REAR SEAT 71940A - HEADREST ASSY, REAR SEAT 71960B - HEADREST ASSY, REAR SEAT, CENTER 72501Q - ARM SUB-ASSY, NO.1 SEAT RECLINING ADJUSTER, UPPER NO.2 RH 72502J - ARM SUB-ASSY  NO.1 SEAT RECLINING ADJUSTER, UPPER NO.2 LH 72507B - HANDLE SUB-ASSY, RECLINING RELEASE, RH 72507C - HANDLE SUB-ASSY, RECLINING RELEASE, LH 72665A - CAP(FOR REAR SEAT BACK LOCK COVER) 72665A - CAP(FOR REAR SEAT BACK LOCK COVER) 72693 - HOOK, REAR SEAT CUSHION LOCK 72805B - DOOR SUB-ASSY, REAR SEAT CENTER ARMREST 72830 - ARMREST ASSY, REAR SEAT, CENTER 72834 - PANEL, REAR SEAT CENTER ARMREST, NO.2 72841 - SPRING, REAR SEAT CENTER ARMREST, NO.1 72863 - BOX, REAR SEAT CENTER ARMREST 72885 - HANDLE, REAR SEAT ARMREST 72996 - COVER, REAR SEAT BACK, RH 72997 - COVER, REAR SEAT BACK, LH 73383 - HOOK, RR SEAT BELT 73383 - HOOK, RR SEAT BELT  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
