TOYOTA AVALON GSX30L-AETPKA / ELECTRICAL / HEATING AIR CONDITIONING COOLER PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

HEATING AIR CONDITIONING COOLER PIPING

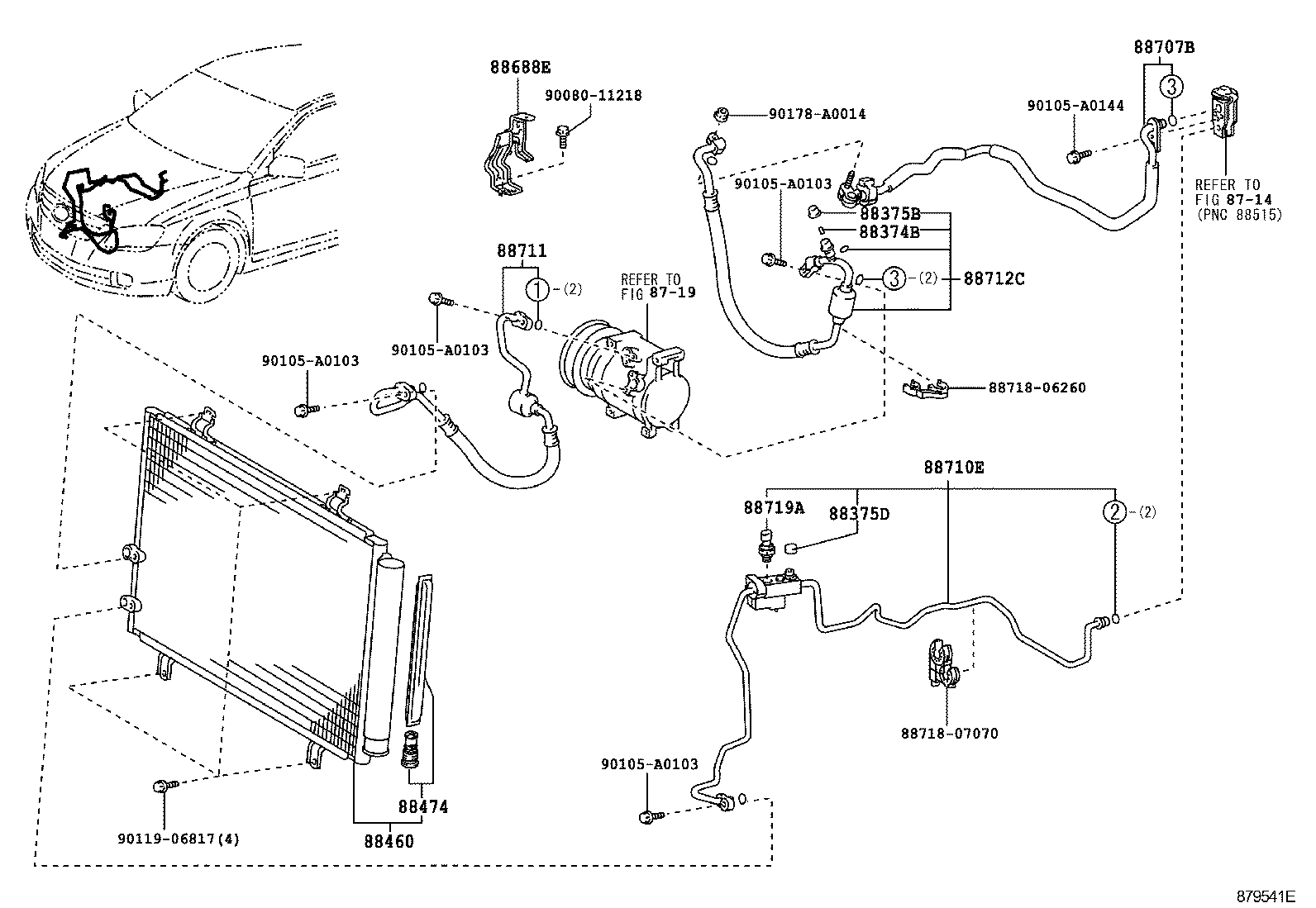

ILLUST NO. 1 OF 2(0707- )

 AVALON |  HEATING AIR CONDITIONING COOLER PIPING ** Refer Fig ** Refer Fig 88374B - VALVE, SERVICE, NO.1 88375B - CAP, SERVICE VALVE, NO.1 88375D - CAP, SERVICE VALVE, NO.2 88460 - CONDENSER ASSY, COOLER 88474 - DRYER, COOLER 88688E - BRACKET, COOLER REFRIGERANT HOSE, NO.1 88707B - TUBE SUB-ASSY, SUCTION, B 88710E - TUBE & ACCESSORY ASSY, AIRCONDITIONER 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 88712C - HOSE, SUCTION  ** Std Part  ** Std Part 88719A - SENSOR, AIRCONDITIONER PRESSURE  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
