TOYOTA LAND CRUISER 200 URJ200L-GNTEKA / BODY / FRONT FLOOR PANEL FRONT FLOOR MEMBER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

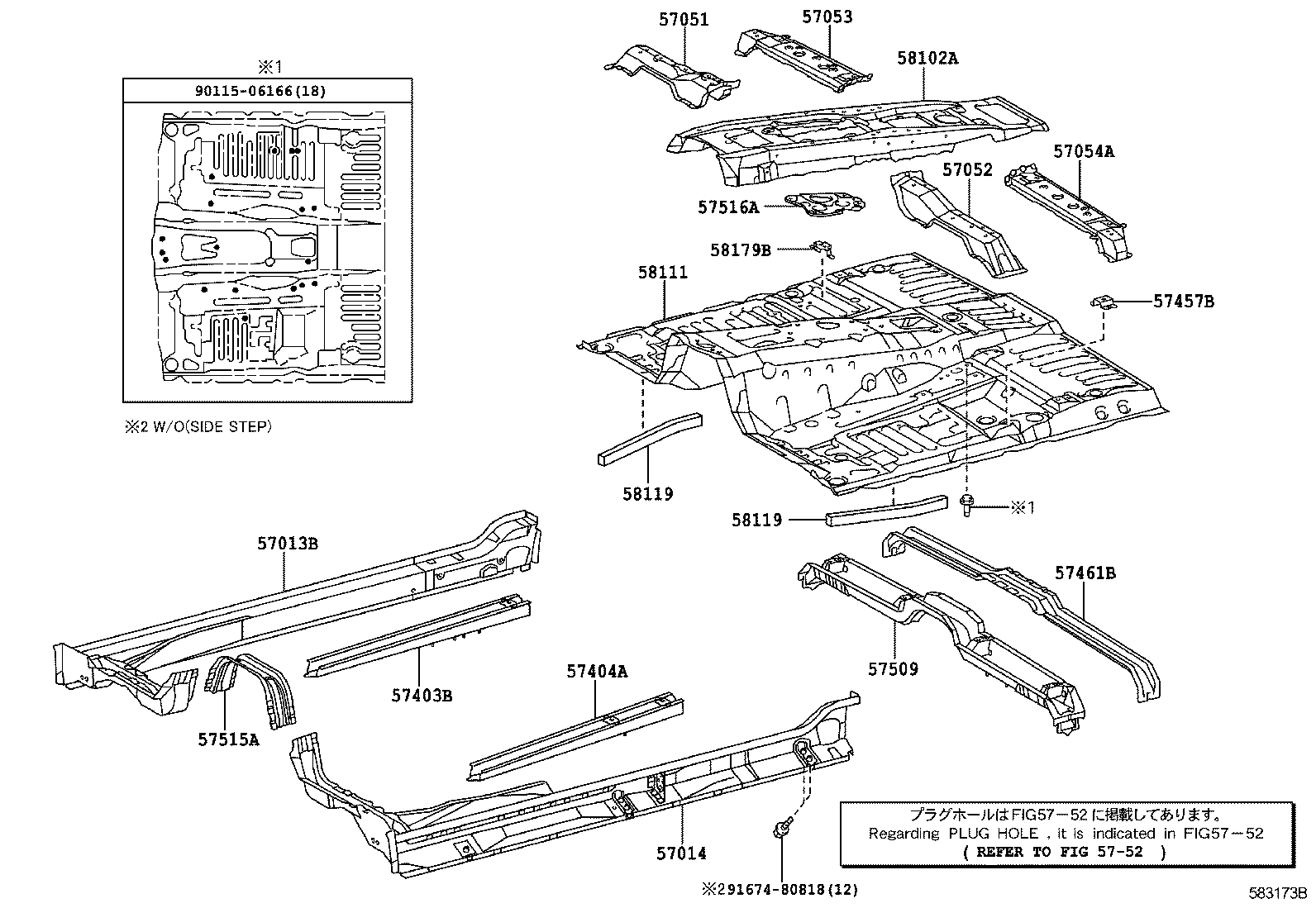

FRONT FLOOR PANEL FRONT FLOOR MEMBER

ILLUST NO. 1 OF 2(0709- )

LAND CRUISER 200 | FRONT FLOOR PANEL FRONT FLOOR MEMBER 57013B - MEMBER SUB-ASSY, FLOOR, FRONT RH 57014 - MEMBER SUB-ASSY, FLOOR, FRONT LH 57051 - MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH 57052 - MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH 57053 - REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, RH 57054A - REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, LH 57403B - REINFORCE SUB-ASSY, FLOOR SIDE, INNER RH 57404A - REINFORCE SUB-ASSY, FLOOR SIDE, INNER LH 57457B - BRACKET, FRONT SEAT, FRONT 57461B - MEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1 57509 - REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER 57515A - REINFORCEMENT, FRONT FLOOR, CENTER 57516A - RETAINER, FRONT FLOOR REINFORCEMENT, FRONT ** Refer Fig 58102A - REINFORCEMENT SUB-ASSY, FRONT FLOOR 58111 - PAN, FRONT FLOOR 58119 - PLATE, FRONT FLOOR SIDE, FRONT 58119 - PLATE, FRONT FLOOR SIDE, FRONT 58179B - BRACKET, ACCELERATOR CABLE CLAMP ** Std Part ** Std Part
