TOYOTA LAND CRUISER 200 URJ200L-GNTEKA / BODY / REAR FLOOR PANEL REAR FLOOR MEMBER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

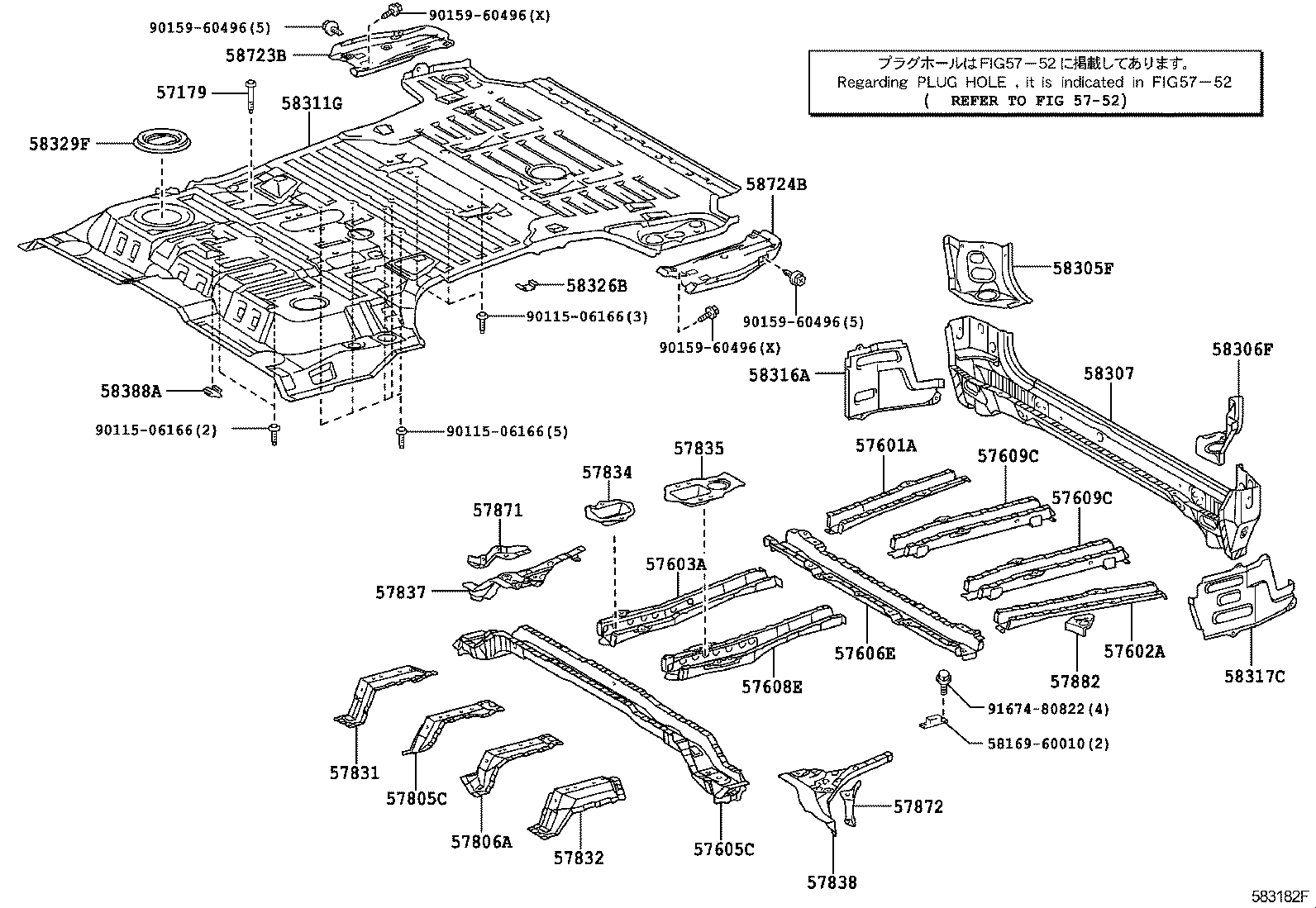

REAR FLOOR PANEL REAR FLOOR MEMBER

(0709- )

LAND CRUISER 200 | REAR FLOOR PANEL REAR FLOOR MEMBER 57179 - BOLT, FLOOR CROSSMEMBER ** Refer Fig 57601A - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH 57602A - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH 57603A - MEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH 57605C - MEMBER SUB-ASSY, REAR FLOOR CROSS 57606E - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2 57608E - REINFORCE SUB-ASSY, SIDE MEMBER TO FLOOR, RH 57609C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.5 57609C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.5 57805C - REINFORCEMENT SUB-ASSY, NO.1 SEAT LEG, REAR NO.1 57806A - REINFORCE SUB-ASSY, NO.1 SEAT LEG, REAR NO.2 57831 - REINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.1 57832 - REINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.2 57834 - REINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.4 57835 - REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.1 57837 - REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.3 57838 - REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.4 57871 - PATCH, REAR NO.1 SEAT LEG, REAR NO.1 57872 - PATCH, REAR NO.1 SEAT LEG, REAR NO.2 57882 - REINFORCEMENT, BELT ANCHOR, NO.4 ** Std Part 58305F - PANEL SUB-ASSY, REAR FLOOR SIDE, RH 58306F - PANEL SUB-ASSY, REAR FLOOR SIDE, LH 58307 - PANEL SUB-ASSY, BODY LOWER BACK 58311G - PAN,REAR FLOOR 58316A - EXTENSION, REAR FLOOR SIDE PANEL, REAR RH 58317C - EXTENSION, REAR FLOOR SIDE PANEL, REAR LH 58326B - BRACKET, FLEXIBLE HOSE MOUNTING 58329F - COVER, REAR FLOOR SERVICE HOLE, NO.2 58388A - BRACKET,REAR FLOOR PLATE 58723B - PROTECTOR, LUGGAGE COMPARTMENT SIDE COVER, NO.1 58724B - PROTECTOR, LUGGAGE COMPARTMENT SIDE COVER, NO.2 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
