TOYOTA LAND CRUISER 200 URJ200L-GNTEKA / BODY / CONSOLE BOX BRACKET

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

CONSOLE BOX BRACKET

(0709- )

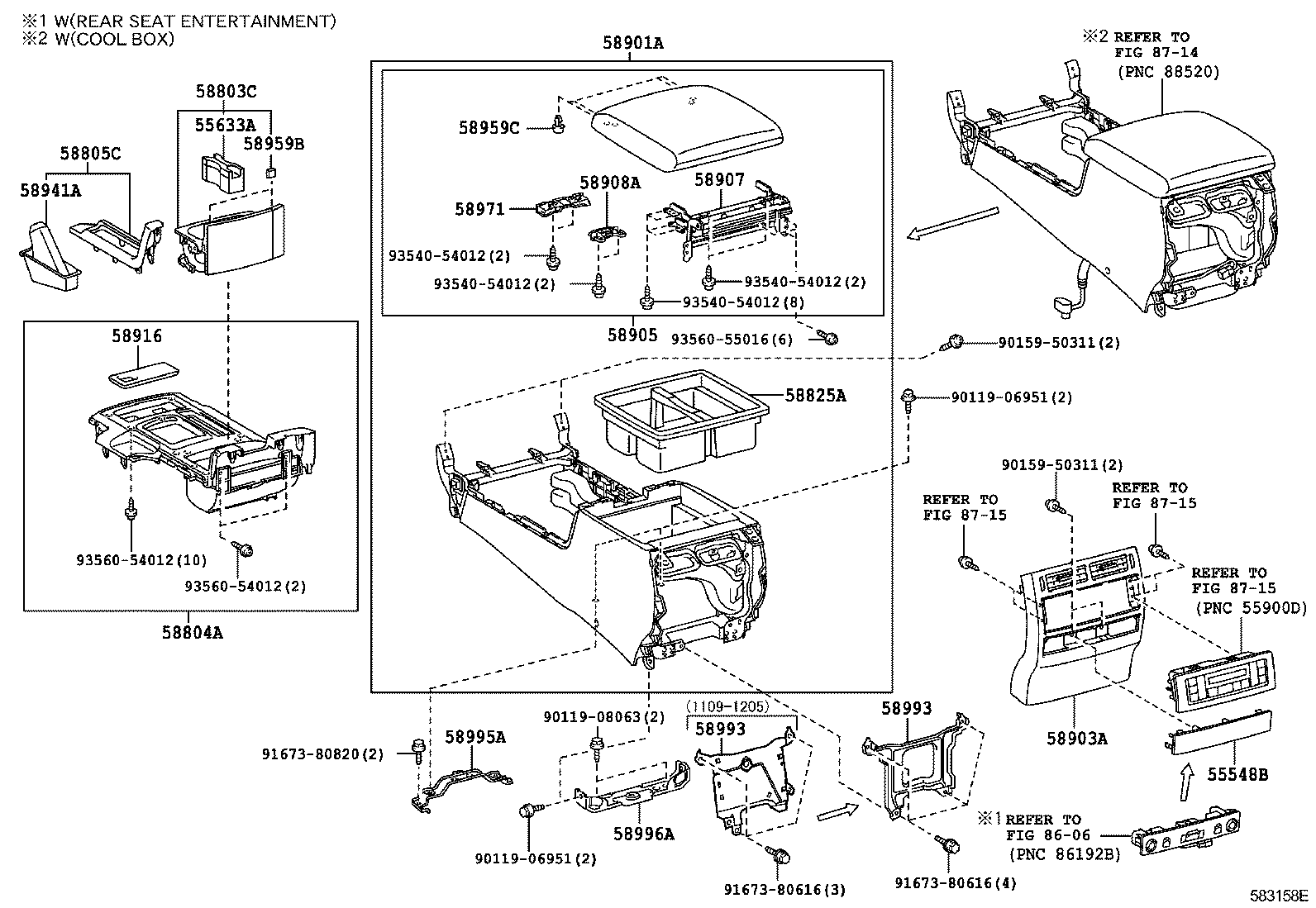

 LAND CRUISER 200 |  CONSOLE BOX BRACKET 55548B - COVER, INSTRUMENT PANEL HOLE 55633A - SUPPORT, INSTRUMENT PANEL CUP HOLDER, NO.1 58803C - BOX SUB-ASSY, CONSOLE CUP HOLDER 58804A - PANEL SUB-ASSY, CONSOLE, UPPER 58805C - PANEL SUB-ASSY, CONSOLE, UPPER REAR 58825A - POCKET, CONSOLE BOX 58901A - BOX SUB-ASSY, CONSOLE, REAR 58903A - PANEL SUB-ASSY, CONSOLE REAR END 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT 58907 - HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR 58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR 58916 - MAT, BOX BOTTOM 58941A - COVER, PARKING BRAKE HOLE 58959B - CUSHION, CONSOLE COMPARTMENT DOOR 58959C - CUSHION, CONSOLE COMPARTMENT DOOR 58971 - LOCK, CONSOLE COMPARTMENT DOOR 58993 - BRACKET, CONSOLE BOX MOUNTING, REAR 58993 - BRACKET, CONSOLE BOX MOUNTING, REAR 58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1 58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2 ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
