TOYOTA TACOMA GRN265L-PRADKA / BODY / REAR DOOR PANEL GLASS

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

REAR DOOR PANEL GLASS

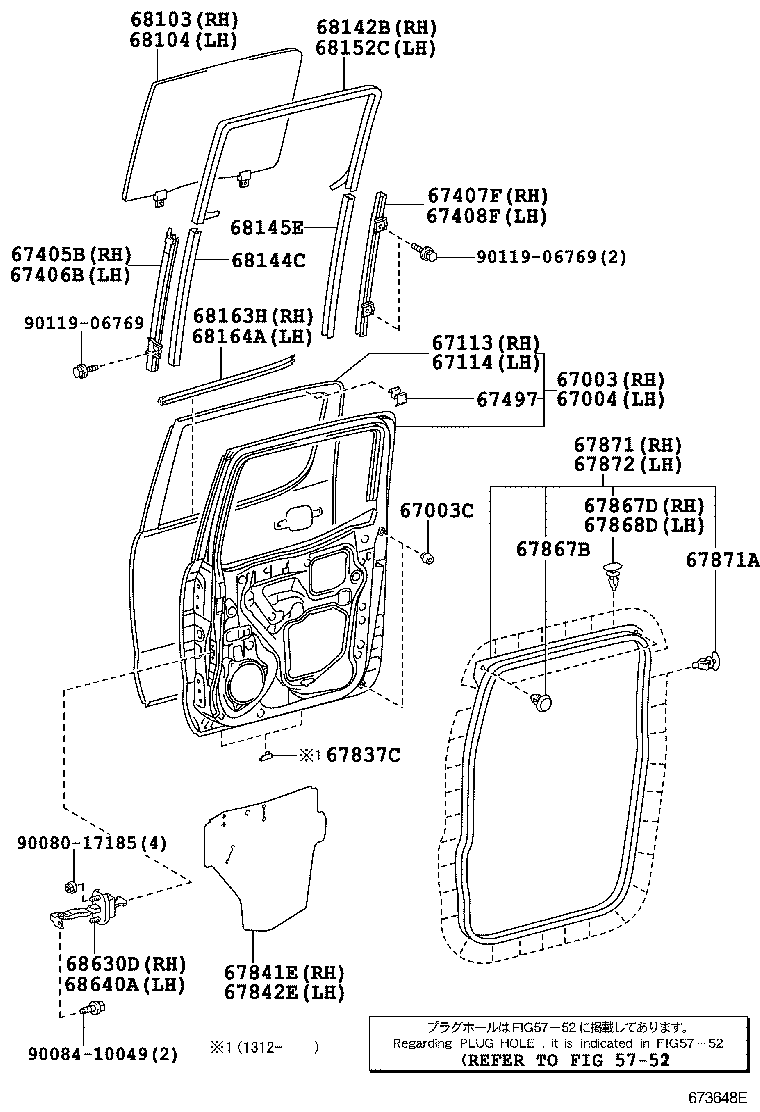

DOOR PANEL ILLUST NO. 1 OF 2(0409- )DCB

 TACOMA |  REAR DOOR PANEL GLASS ** Refer Fig 67003 - PANEL SUB-ASSY, REAR DOOR, RH 67003C - CUSHION, REAR DOOR PANEL 67004 - PANEL SUB-ASSY, REAR DOOR, LH 67113 - PANEL, REAR DOOR, OUTER RH 67114 - PANEL, REAR DOOR, OUTER LH 67405B - GUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT RH 67406B - GUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT LH 67407F - FRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER RH 67408F - FRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER LH 67497 - BRACKET, REAR DOOR FRAME 67837C - SEAL, REAR DOOR DUST PROOF 67841E - COVER, REAR DOOR SERVICE HOLE, RH 67842E - COVER, REAR DOOR SERVICE HOLE, LH 67867B - CLIP, DOOR WEATHERSTRIP(FOR REAR DOOR) 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH 67871 - WEATHERSTRIP, REAR DOOR, RH 67871A - RETAINER(FOR REAR DOOR WEATHERSTRIP) 67872 - WEATHERSTRIP, REAR DOOR, LH 68103 - GLASS SUB-ASSY, REAR DOOR, RH 68104 - GLASS SUB-ASSY, REAR DOOR, LH 68142B - RUN, REAR DOOR WINDOW, RH 68144C - RUN, REAR DOOR GLASS, LOWER FRONT 68145E - RUN, REAR DOOR GLASS, LOWER REAR 68152C - RUN, REAR DOOR GLASS, LH 68163H - WEATHERSTRIP, REAR DOOR GLASS, OUTER RH 68164A - WEATHERSTRIP, REAR DOOR GLASS, OUTER LH 68630D - CHECK ASSY, REAR DOOR, RH 68640A - CHECK ASSY, REAR DOOR, LH  ** Std Part  ** Std Part  ** Std Part  ** Std Part
