TOYOTA LAND CRUISER 70 VDJ78R-RJMRYQ / ELECTRICAL / WIRING CLAMP

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

WIRING CLAMP

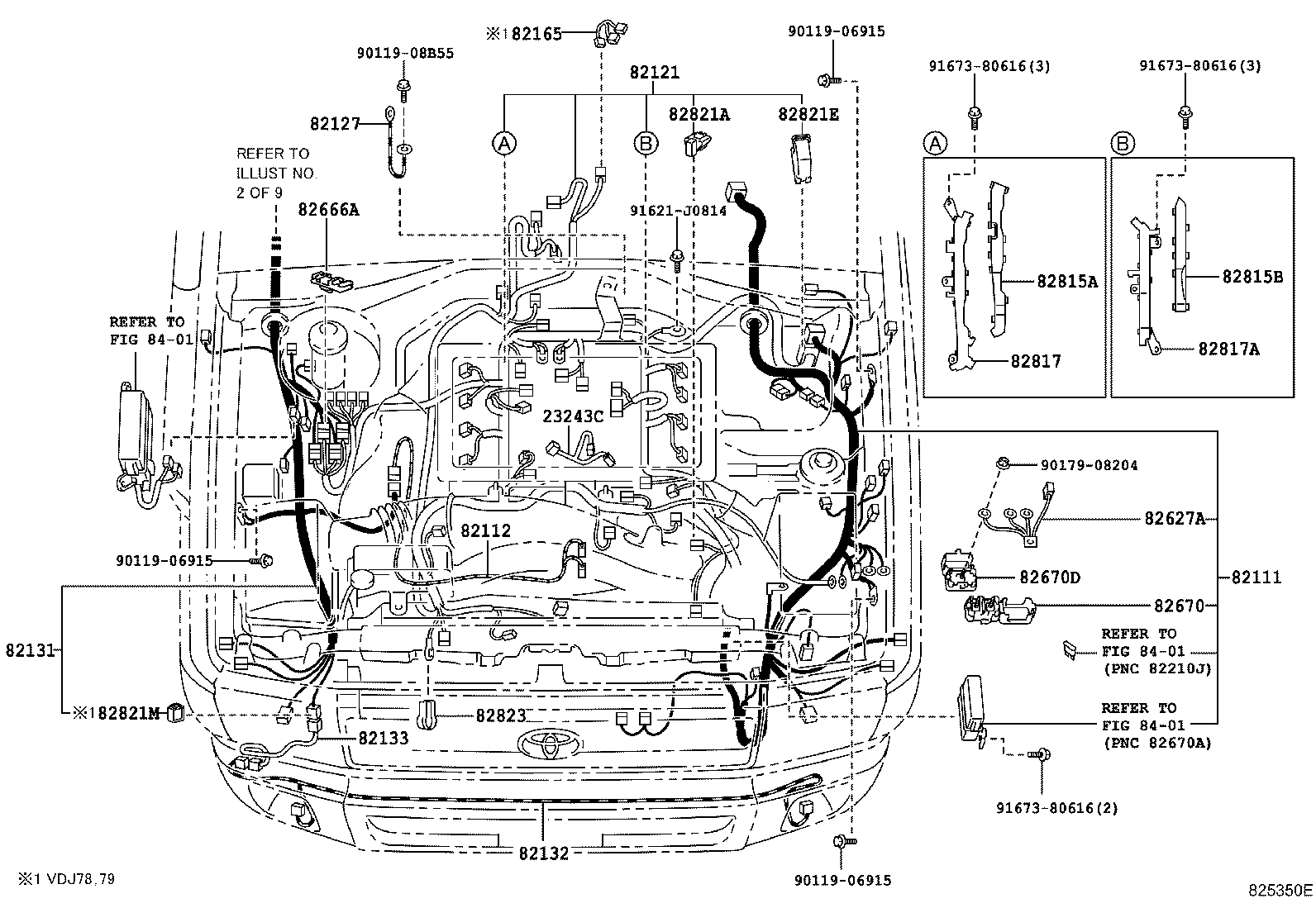

ENGINE & TRANSMISSION ILLUST NO. 1 OF 7(0701-0907)VDJ7#

 LAND CRUISER 70 |  WIRING CLAMP 23243C - WIRE, FUEL PUMP MOTOR 82111 - WIRE, ENGINE ROOM MAIN 82112 - WIRE, ENGINE ROOM, NO.2 82121 - WIRE, ENGINE 82127 - WIRE, DIFFERENTIAL 82131 - WIRE, COWL 82132 - WIRE, COWL, NO.2 82133 - WIRE, COWL, NO.3 82165 - WIRE, FRAME, NO.2 82627A - WIRE, FUSIBLE LINK 82666A - HOLDER, CONNECTOR NO.2 82670 - BLOCK ASSY, JUNCTION, NO.1 82670D - BLOCK ASSY, JUNCTION,NO.2 82815A - COVER, WIRING HARNESS PROTECTOR 82815B - COVER, WIRING HARNESS PROTECTOR 82817 - PROTECTOR, WIRING HARNESS, NO.1 82817A - PROTECTOR, WIRING HARNESS, NO.2 82821A - COVER, CONNECTOR 82821E - COVER, CONNECTOR 82821M - COVER, CONNECTOR 82823 - CAP, TERMINAL, NO.1 ** Refer Fig ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
