TOYOTA PRIUS PLUG IN HBD ZVW35L-BHXEBA / BODY / FRONT SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

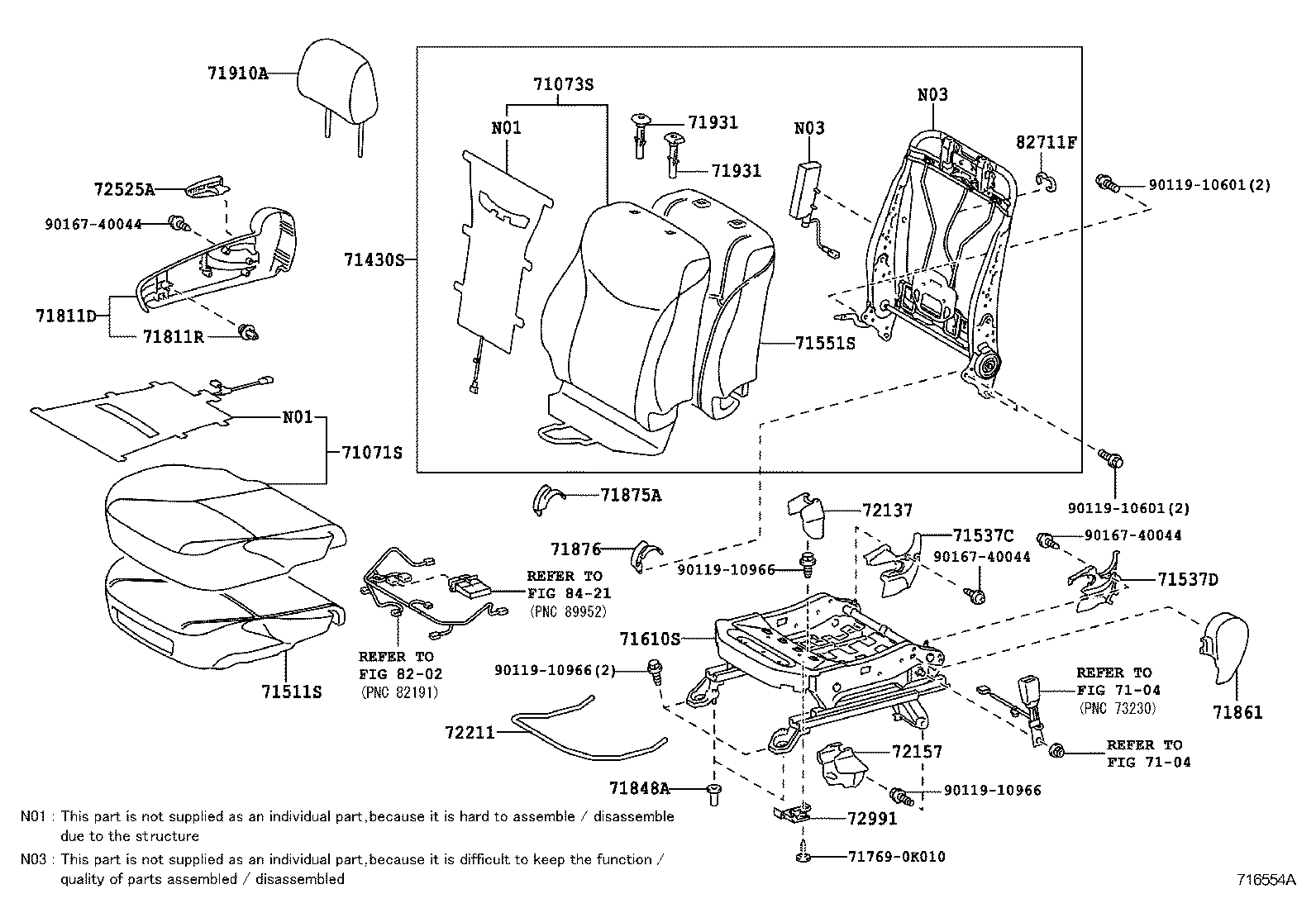

FRONT SEAT SEAT TRACK

RH SEAT ILLUST NO. 1 OF 2(0912- )

PRIUS PLUG IN HBD | FRONT SEAT SEAT TRACK ** Refer Fig ** Refer Fig 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) 71537C - PROTECTOR, FRONT SEAT CUSHION EDGE, RH 71537D - PROTECTOR, FRONT SEAT CUSHION EDGE, LH 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) ** Std Part 71811D - SHIELD, FRONT SEAT CUSHION, RH 71811R - CLIP, FRONT SEAT CUSHION SHIELD, RH 71848A - CAP, SEAT ADJUSTER COVER, RH 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH 71875A - COVER, RECLINING ADJUSTER INSIDE, RH 71876 - COVER, RECLINING ADJUSTER INSIDE, LH 71910A - HEADREST ASSY, FRONT SEAT 71931 - SUPPORT, FRONT SEAT HEADREST 71931 - SUPPORT, FRONT SEAT HEADREST 72137 - COVER, SEAT TRACK OUTER, RH 72157 - COVER, SEAT TRACK BRACKET, INNER 72211 - HANDLE, SEAT TRACK ADJUSTING 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH 72991 - COVER, FRONT SEAT CUSHION, RH ** Refer Fig 82711F - CLAMP, WIRING HARNESS ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
