TOYOTA PRIUS PLUG IN HBD ZVW35L-BHXEBA / ELECTRICAL / HEATING AIR CONDITIONING COOLER PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

HEATING AIR CONDITIONING COOLER PIPING

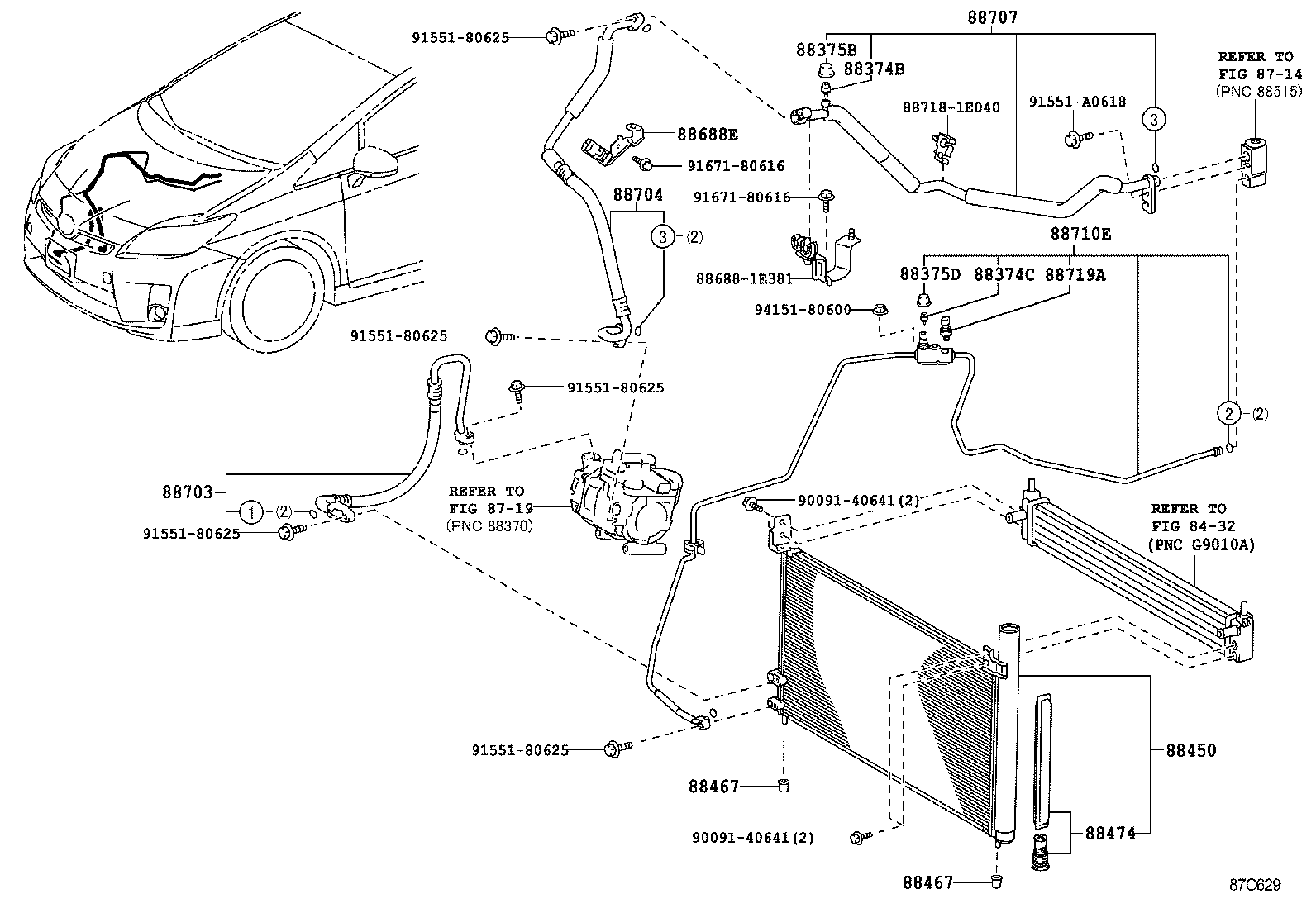

ILLUST NO. 1 OF 2(1201- )

 PRIUS PLUG IN HBD |  HEATING AIR CONDITIONING COOLER PIPING ** Refer Fig ** Refer Fig ** Refer Fig 88374B - VALVE, SERVICE, NO.1 88374C - VALVE, SERVICE, NO.2 88375B - CAP, SERVICE VALVE, NO.1 88375D - CAP, SERVICE VALVE, NO.2 88450 - CONDENSER ASSY, W/RECEIVER 88467 - CUSHION, COOLER CONDENSER, NO.1 88467 - CUSHION, COOLER CONDENSER, NO.1 88474 - DRYER, COOLER  ** Std Part 88688E - BRACKET, COOLER REFRIGERANT HOSE, NO.1 88703 - HOSE SUB-ASSY, DISCHARGE 88704 - HOSE SUB-ASSY, SUCTION 88707 - PIPE SUB-ASSY, SUCTION 88710E - TUBE & ACCESSORY ASSY, AIRCONDITIONER  ** Std Part 88719A - SENSOR, AIRCONDITIONER PRESSURE  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
