TOYOTA RAV4 JPP GSA38L-ANAGKA / BODY / HOOD FRONT FENDER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

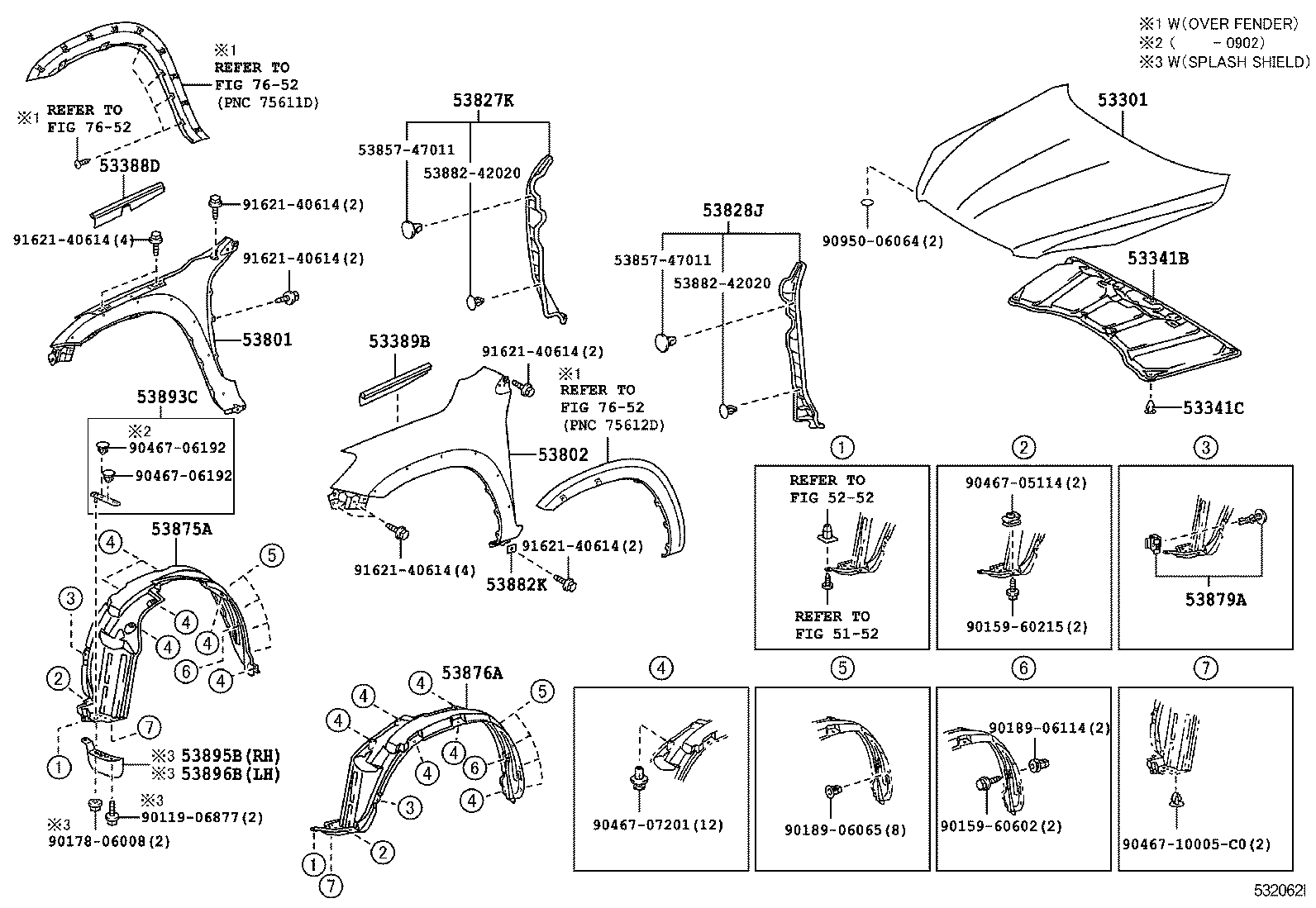

HOOD FRONT FENDER

(0511- )

 RAV4 JPP |  HOOD FRONT FENDER ** Refer Fig ** Refer Fig 53301 - HOOD SUB-ASSY 53341B - INSULATOR, HOOD 53341C - CLIP(FOR HOOD INSULATOR) 53388D - SEAL, HOOD TO FRONT FENDER, RH 53389B - SEAL, HOOD TO FRONT FENDER, LH 53801 - FENDER SUB-ASSY, FRONT RH 53802 - FENDER SUB-ASSY, FRONT LH 53827K - PROTECTOR, FRONT FENDER SIDE PANEL, RH 53828J - PROTECTOR, FRONT FENDER SIDE PANEL, LH  ** Std Part  ** Std Part 53875A - LINER, FRONT FENDER, RH 53876A - LINER, FRONT FENDER, LH 53879A - RETAINER, FRONT FENDER LINER  ** Std Part  ** Std Part 53882K - SEAL, FRONT FENDER 53893C - RETAINER, FRONT FENDER SPLASH SHIELD, FRONT 53895B - SHIELD, FRONT FENDER SPLASH, FRONT RH 53896B - SHIELD, FRONT FENDER SPLASH, FRONT LH ** Refer Fig ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
